Peripherals Installation
LOGIQ V3/V5/V5 Expert – Basic Service Manual 3-35
5726264-100 English Rev.8
3-7-3-5 Print Shelf Installation
3-7-3-5-1 Tools
No special tools needed.
3-7-3-5-2 Manpower
One person 5 min.
3-7-3-5-3 Preparations
1. Unpack the Printer Shelf.
2. Ensure no physical damage.
3-7-3-5-4 Installation Procedure

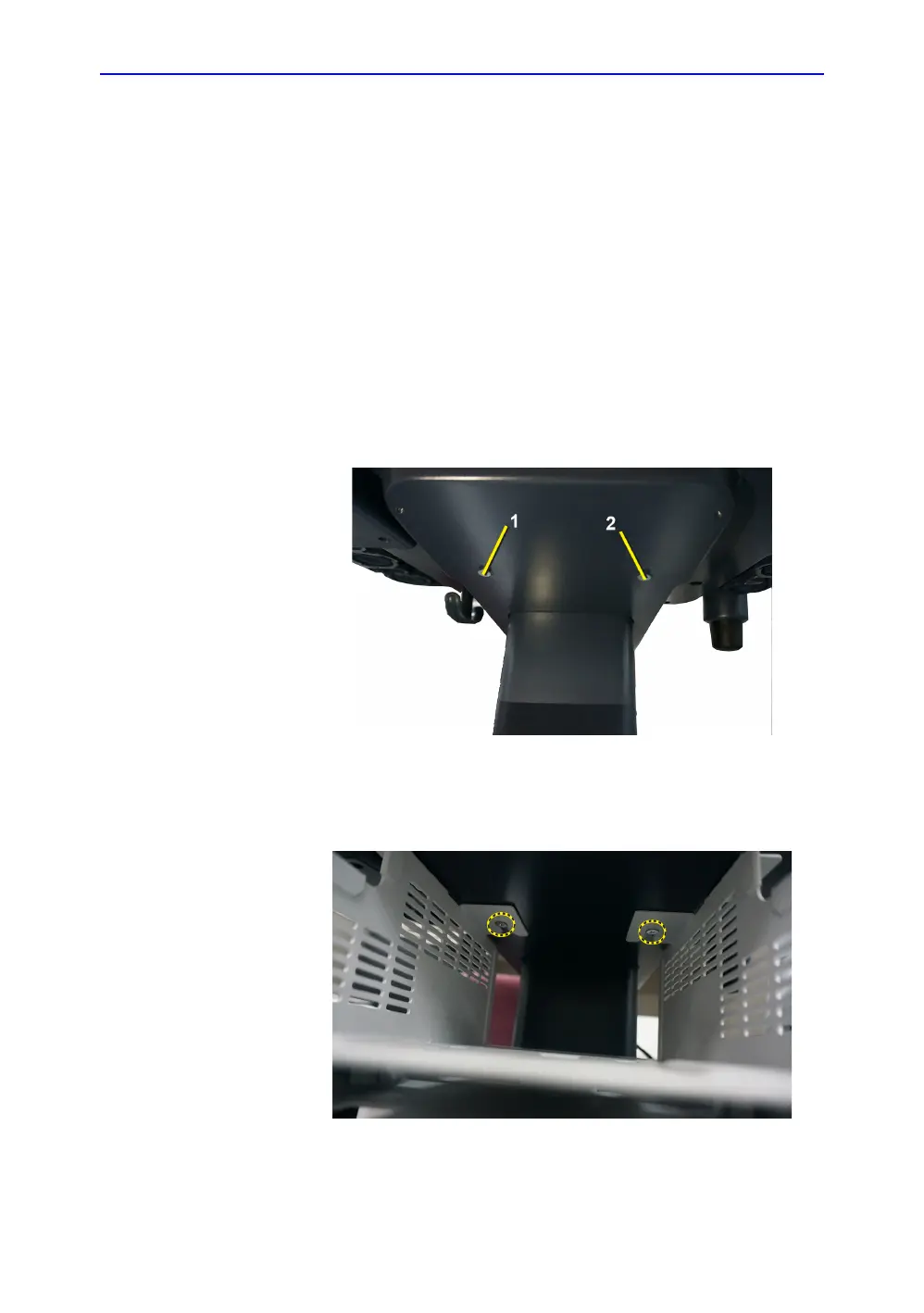

1. Screw 2 screws on the rear side of the keyboard bottom.
Figure 3-22. Screw Screws
2. Mount the printer shelf on the system and make sure the 2
screws are in the fixed position.
Figure 3-23. Mount the Printer Shelf
