System Setup
3-40
LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 Engli
sh Rev.8
3-7-3-8
ECG Inst
allation
3-7-3-8-1
T
ools
No special tools needed.
3-7-3-8-2
Ma
npower
One person 1 min.
3-7-3-8-3
Pre
p
arations
1. Unpack
the
ECG
.
2.
Ensure no physical damage.
3-7-3-8-4
Inst
allation Procedure
1.
Connect the ECG to the
USB port on the LOGIQ V3/V5/V
5
Expert system and the cables c
an be hang in the cable
hook.

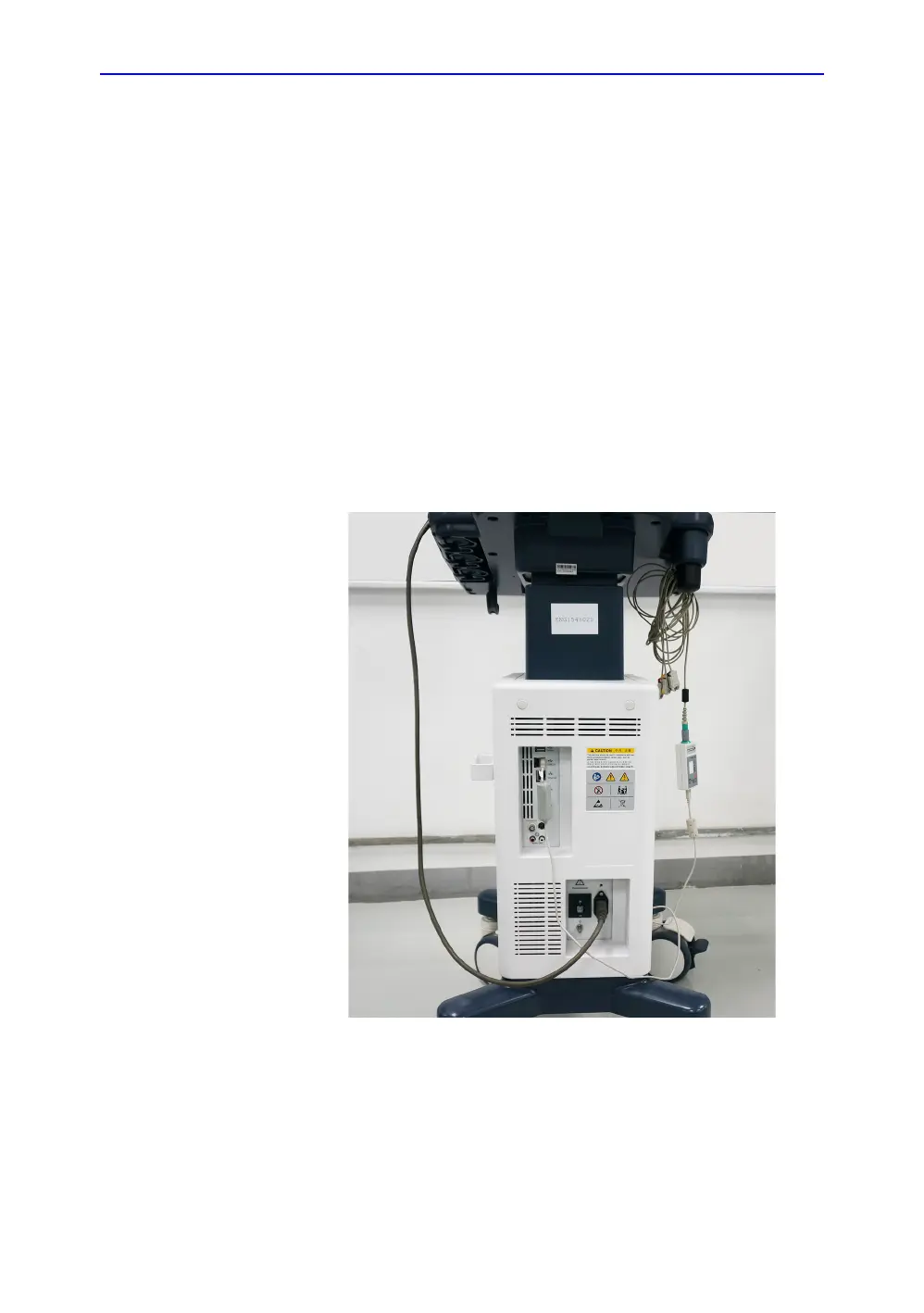

Figure
3-28.
Connect ECG to the syste
m
115
117
Table of Contents
