General Procedures
and Functional Checks
4-20
LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 Engli
sh Rev.8
4-2-7-4
Archiving Images(continued)
Figure
4-16
.

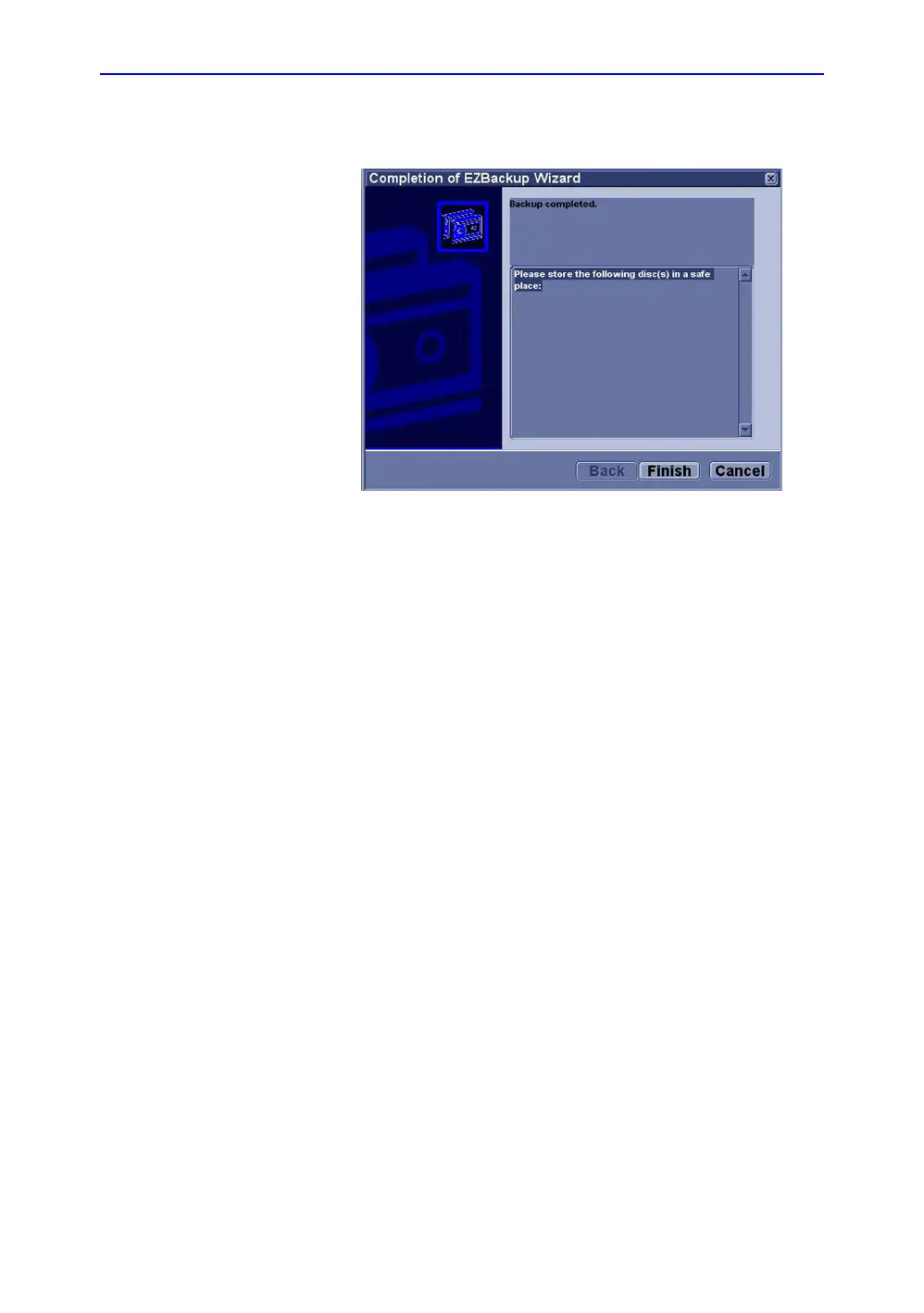

EZBac
kup Completion
Window
All database
s, presets and image
s should now be saved to
removable me
dia.
143
145
