General Procedures and Functional Checks
4-28 LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 English Rev.8

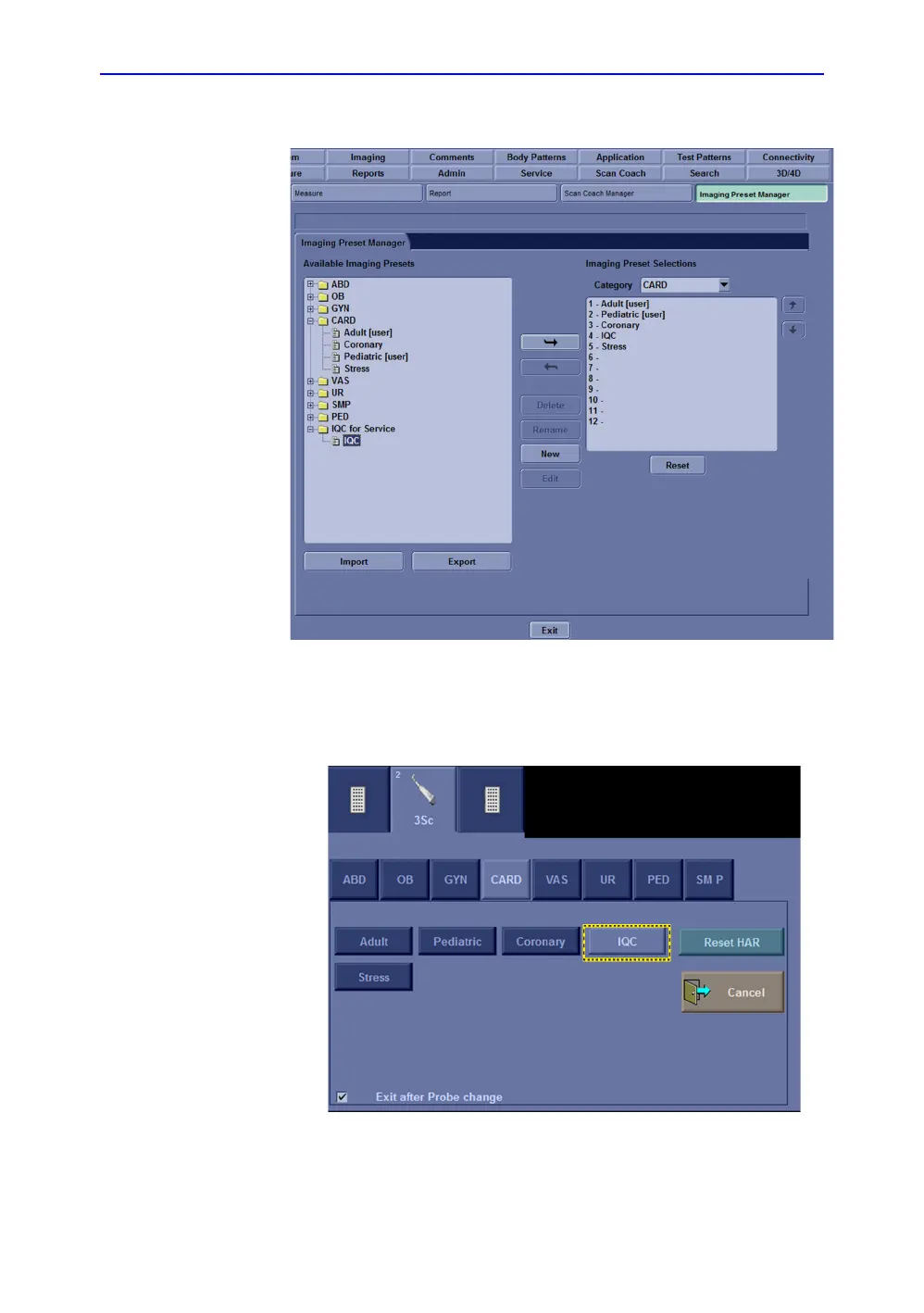

4-3-13 Image Quality Check (IQC) preset for service(continued)
Figure 4-21. Image Quality Check
3. Press Probe/Preset on the control panel. Select SVC, then
select
Figure 4-22. Image Quality Check
To Next Page
