Griddle Removal
To remove the griddle assembly:
1. Remove the griddle cover.
2. Lift off the front trim from the front of the
griddle.
3. Remove the 2 Phillips head screws at the
front of the griddle that secure the griddle to
the cooktop.
4. Remove the rear cover from the rear of the
griddle.
5. Remove the center shipping screw and
washer, if they have not already been
removed.
Note: Do not remove the 2 outer leveling screws.
6. Lift the griddle assembly out of the opening
and pull out the thermostat capillary from
beneath the plate.
Grill Removal
To remove the grill burner assembly:
1. Remove the grill cover, grill grates and grill
radiant.
2. Lift off the front trim from the front of the grill.
3. Remove the 2 Phillips head screws at the
front of the grill box that secure the grill box to
the cooktop.
4. Carefully lift up the grill box enough to access
the wire nut connecting the igniter to the
neutral, and unscrew the nut. Unplug the wire
going to the valve.
5. Lift the grill up and off the cooktop.

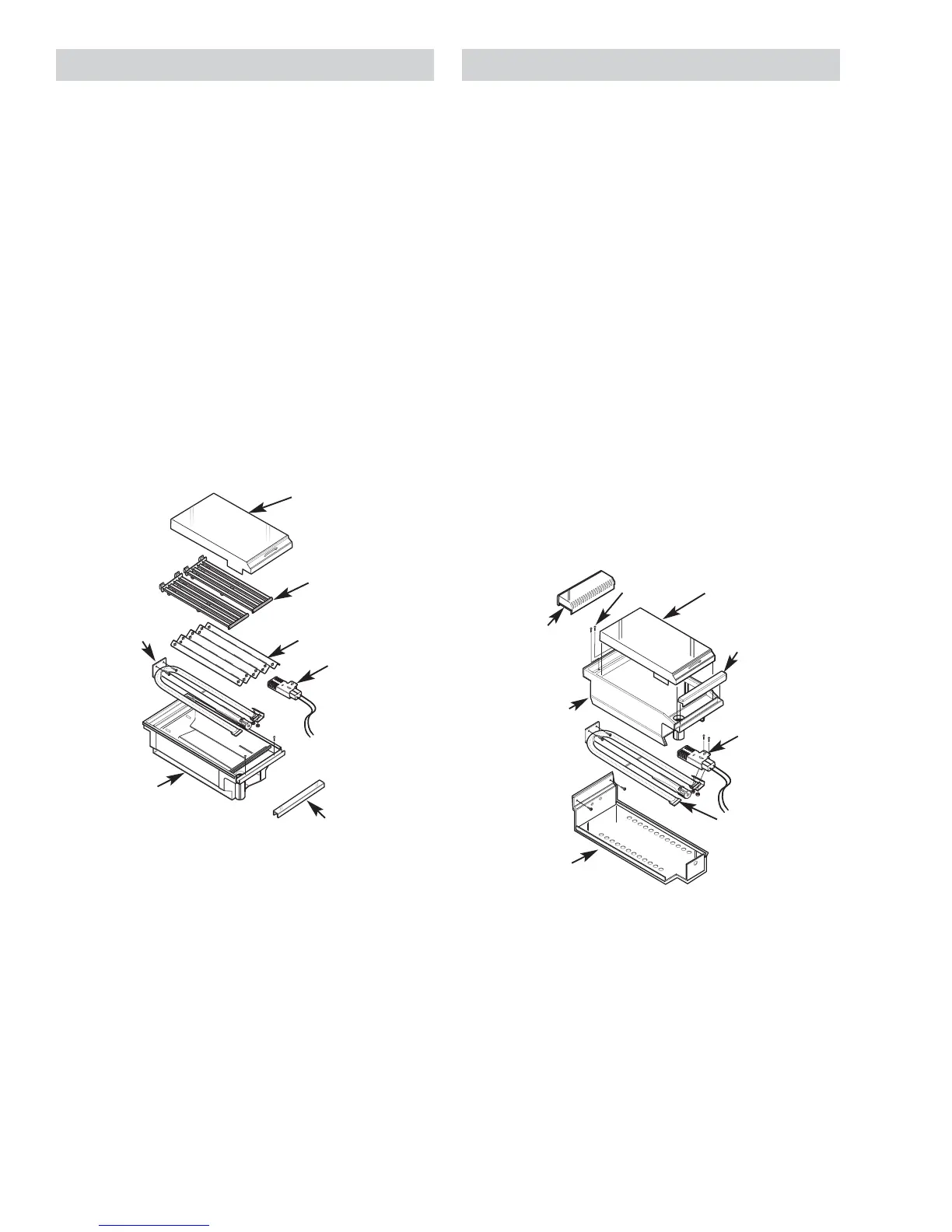

Grill Cover
Grill Grates
Grill Radiant
Igniter
Burner
Grill Box
Front
Trim
Griddle
Cover
Front
T
rim
Igniter
Griddle
Plate
Assembl
y
Griddle Baffle
Leveling
Screw
s
Burner
Rear
Cover
