– 18 –

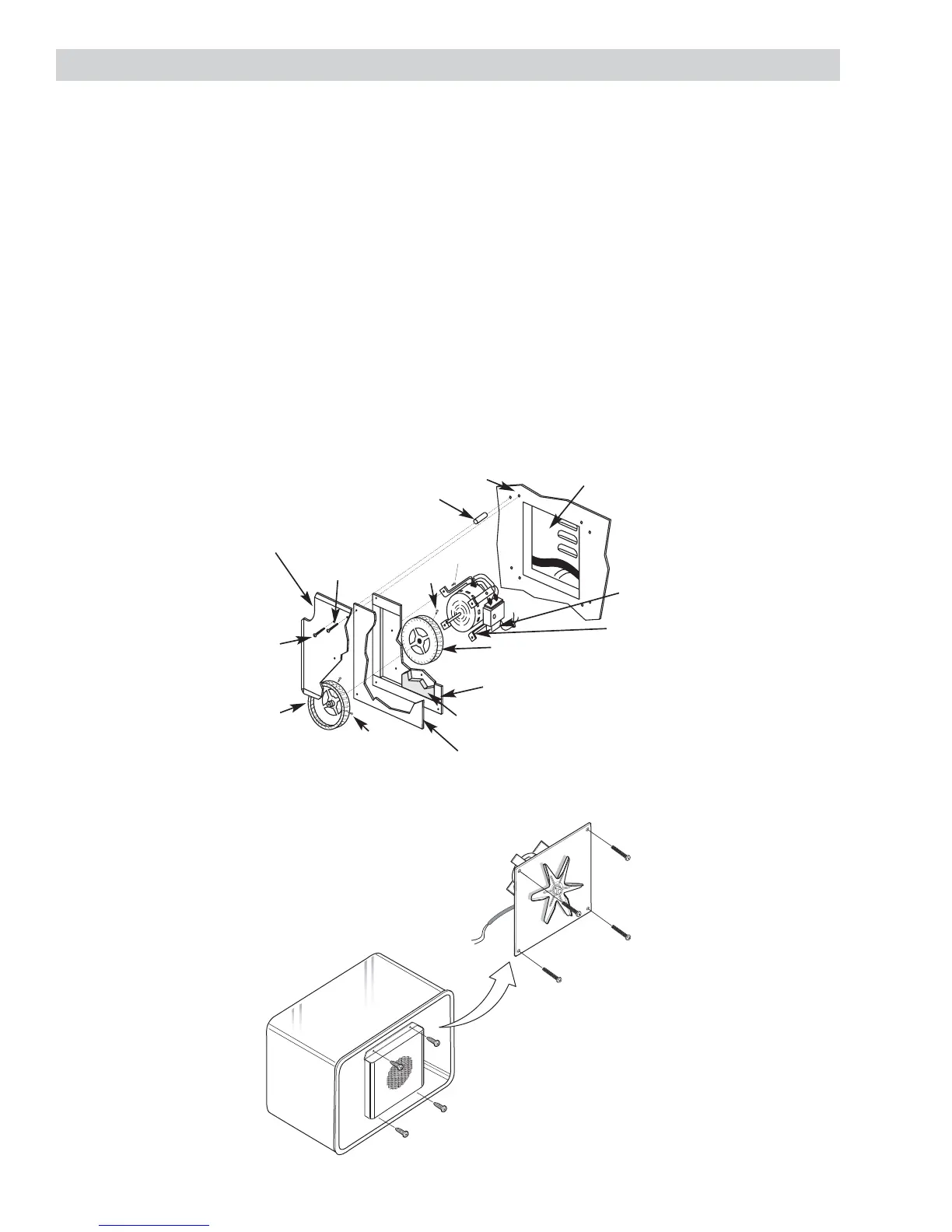

Convection Fan Assembly
The convection fan assembly is located behind the large oven liner.
To remove the convection fan assembly:
1. Disconnect power and remove the oven door and racks.
2. Loosen the fan cover mounted by 4 screws and spacers. Lift the cover off the keyhole opening.
3. Remove the 4 screws securing the fan assembly to the mounting plate.
4. Carefully pull the fan assembly into the oven.
Note: Fan assembly is heavy.
5. Disconnect the wires to remove the assembly from the oven, and place the assembly on a flat
surface for repair.
36-in. and 48-in. Range Models
30-in. Range Models
Convection
Fan Cover
Spacer (4)
Start/Run
Capacitor
Convection
Fan Motor
Motor Cooling
Fan Blade
Convection
Fan Assembly
Mounting
Screws
(4)
Cover
Mounting
Screws (4)
5/22 Blade Mounting
Screws (Allen)
(2)
Convection
Fan
Blade
5/32 Blade
Mounting Screw
(Allen)
Convection Fan
Assembly Mounting
Plate
Convection Fan Motor
Mounting
Plate
Oven Cavity
Back
Wiring Compartment
Cover
Insulation
Convection
Fan
Cover
