– 20 –
3. Remove the screws at the front and back of
the air duct cover to reveal the spark module.
(See Spark Module.)
4. Lower the manifold/valve panel. (See
Component Access).
5. Locate the bracket holding the oven
thermostat in place. Remove the 2 screws
securing the bracket, and pull the thermostat
out of the way to reveal the re-ignition module
bracket.
6. Remove the screw from the re-ignition module
bracket.

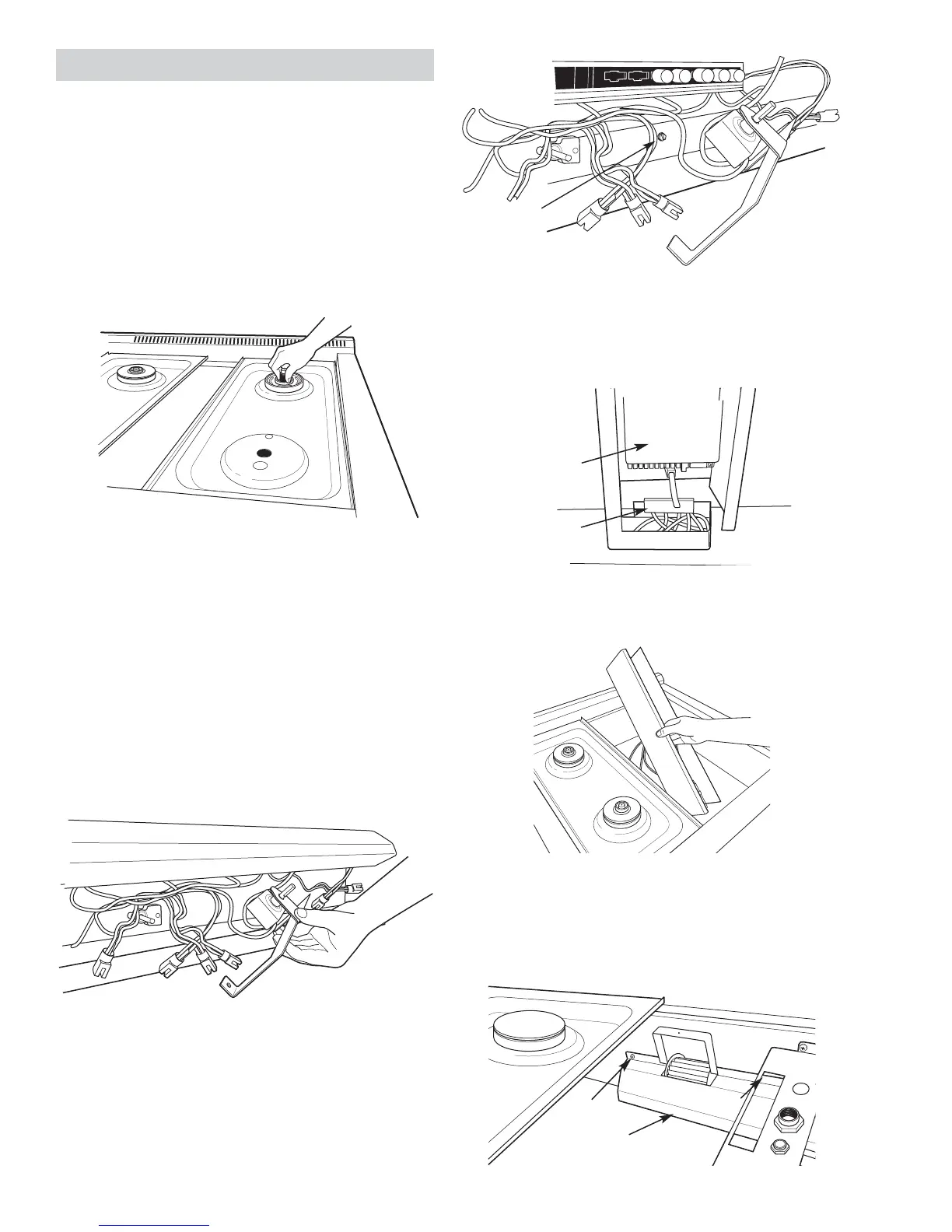

Oven Blower Motor (30-in. Range Models )
The blower motor assembly is located on the
back of the range above the oven. The air switch
on the blower motor completes the circuit to the
oven thermostat and hot wire relay.
To remove the blower assembly:
1. Lift off the burner cap.
2. Remove the left-side burner assembly and
disconnect the ignition wires.
7. On the spark module, cut the wire tie securing
the module, and disconnect the spark module
from the wire harness by pulling straight off
the connector.
8. Lift the air duct out (with the wires still
connected to the spark module), and set it
aside.
9. Locate the blower motor cover at the center
rear of the burner box. Remove the 2 screws
securing the blower motor cover, and lift the
blower motor up and into the burner box.
Reignition
Module
Screw
Connector
Spark Module
Screw
Screw
Blower
Motor Cover
To Next Page
