To remove the blower assembly:
1. Remove the cooktop burner assemblies.
2. Remove the 4 screws securing the fan
mounting plate, and pull the plate with
attached blower motor forward.
3. Remove the blower motor from its mounting
plate by loosening the 2 screws on the plate
and sliding the blower to the right.
4. Install in reverse order.
L1
L2
120V.
96
NO
93
NO
74
K4
RELAY
K4
RELAY
K3
RELAY
29 30
SEL
SW
CNC
LATCH
"OPEN"
SW
CLOSED
<
550˚F
AB
K4 RELAY
COIL
T STAT
LOCK
LIGHT
LM
L1
L2
120V.
74
NO
96
NO
8
NO
5
K3
RELAY
K3
RELAY
K3
RELAY
31 32
SEL
SW
CNC
LATCH
"CLOSED"
SW
82
NC
AB
K3 RELAY
COIL
LOCK
LIGHT
LM

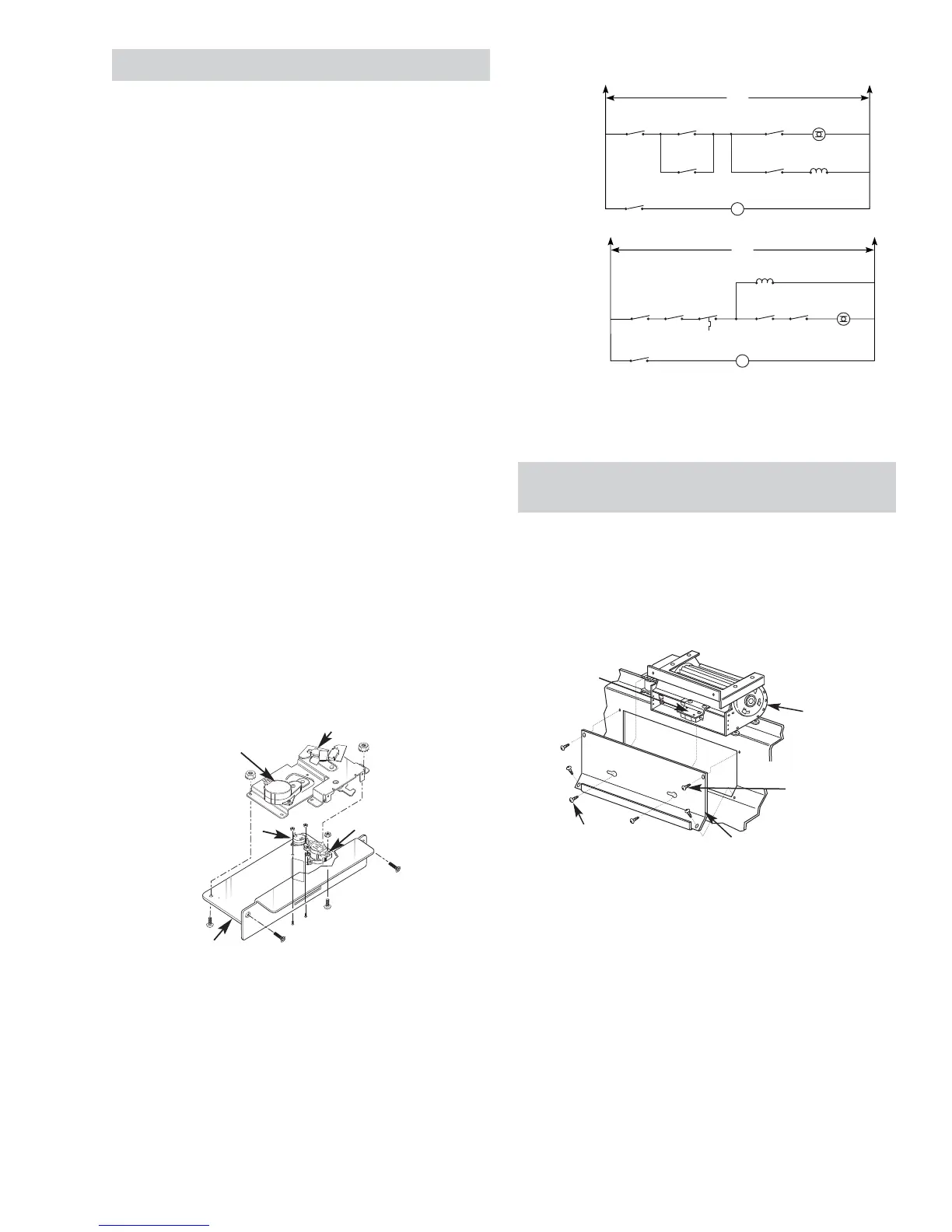

Lock Motor Assembly
The lock motor assembly is located at the center
top of the oven front frame. The assembly
consists of the mounting plate, motor, micro
switches, cam and hook assembly.
To access the assembly:
1. Open the oven door.
2. Remove the 2 Torx screws securing the
mounting plate to the front frame and pull the
assembly out.
Door lock motor operation:
1. When the oven controls are set for CLEAN,
power is applied to the K3 relay coil, which
will energize the lock motor.
2. The lock motor drives the cam that closes
the latch CLOSED switch. As the lock hook
engages, the motor position switch will open,
supplying power to the K1 relay, which turns
the clean timer on.
3. At the end of the clean cycle, when the select
switch is pushed to off or another mode of
operation, the K4 relay will energize the lock
motor to drive the cam to the unlock position.
Oven Blower Motor (36-in. and 48-in. Range
Models)
The blower motor assemblies are located on the
back of the range above each oven.
The air switch on the blower motor completes the
circuit to the oven thermostat.
Motor Position
Switch
Lock
Motor
Fan
Thermostat
Blower
Thermostat
Mounting
Plate
ir Switch
Fan Assembly
Mounting Plate
Screws (4)
Fan Mounting
Plate
Motor Mounting
Screws (2)
