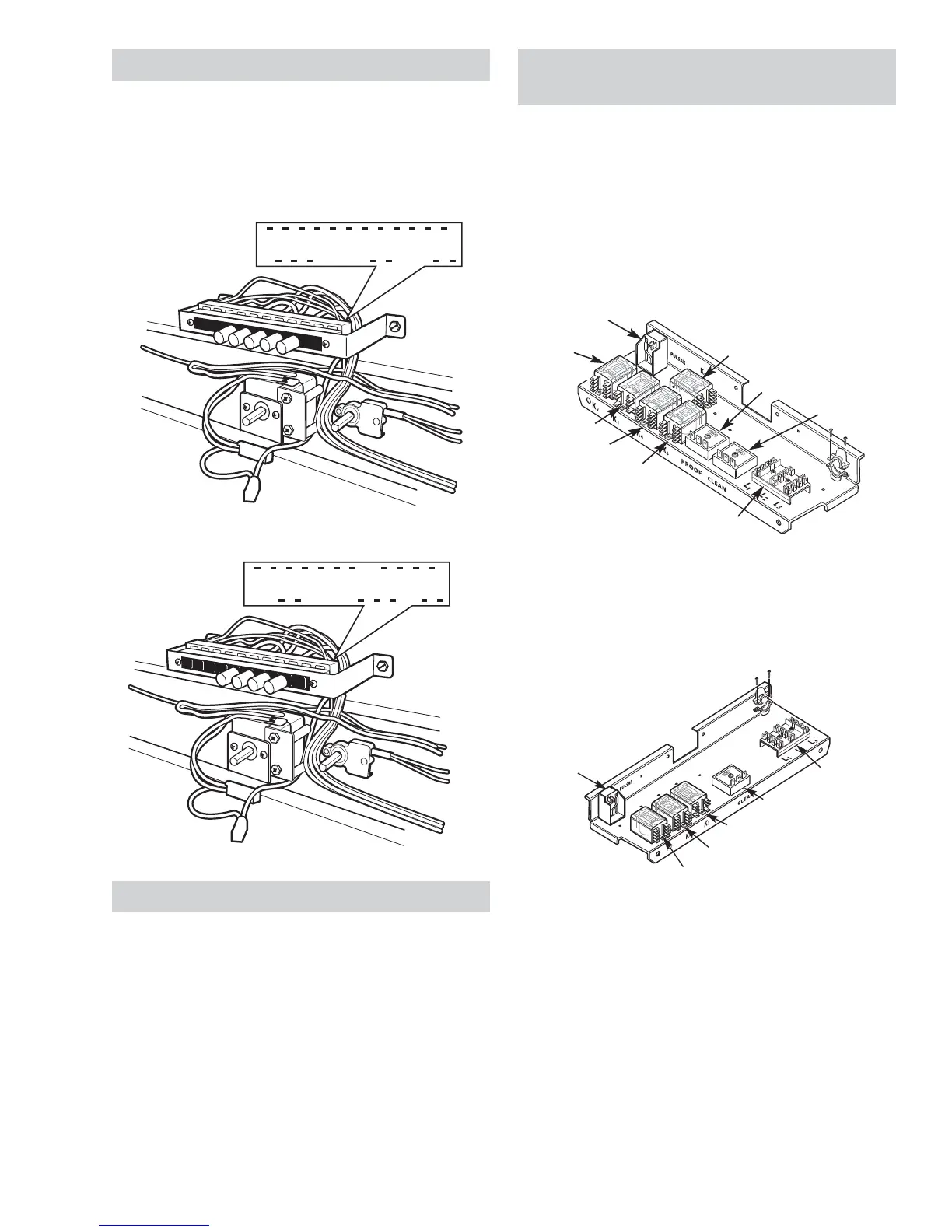

Oven Select Switches
Select switch operation can be checked with
ohmmeter and strip circuits that show what
contacts are closed in each mode of operation.
Oven Thermostat
The operation of the thermostat contacts can be
checked with an ohmmeter and strip circuits.
Contacts 1 and 2 are the cycling contacts, which
are controlled by the expansion and contraction of
the helium in the capillary. Contacts 7 and 8 will
always be in the CLOSED position, except when
in the CLEAN mode of operation. (See above
illustration.)
Relays, Convection Pulser Timers and
Main Power Connection
Electrical relays and timers are located in the
compartment below the oven.
Remove the 2 screws from the top corners of the
bottom panel and pull straight off.
Convection Broil
Unit Pulsar
Clean Lockout Relay
Proof Timer
Clean Time
K1 Relay
K4 Relay
K3 Rela
y
Terminal
Block
K2 Relay
48-in. Range Models
Convection Broil
Unit Pulsar
Clean Timer
K1 Rela
y
K4 Rela
y
K3
Relay
Terminal Block
30-in. and 36-in. Range Models
12-in. Oven
27-in. Oven
32 30 28 26 24 22 20 18 16 14 12 10
31 29 27 19 17 11 9
61 59 57 55 53 51 49 47 45 43 41
58 56 48 46 46 42 40
To Next Page
