Installation

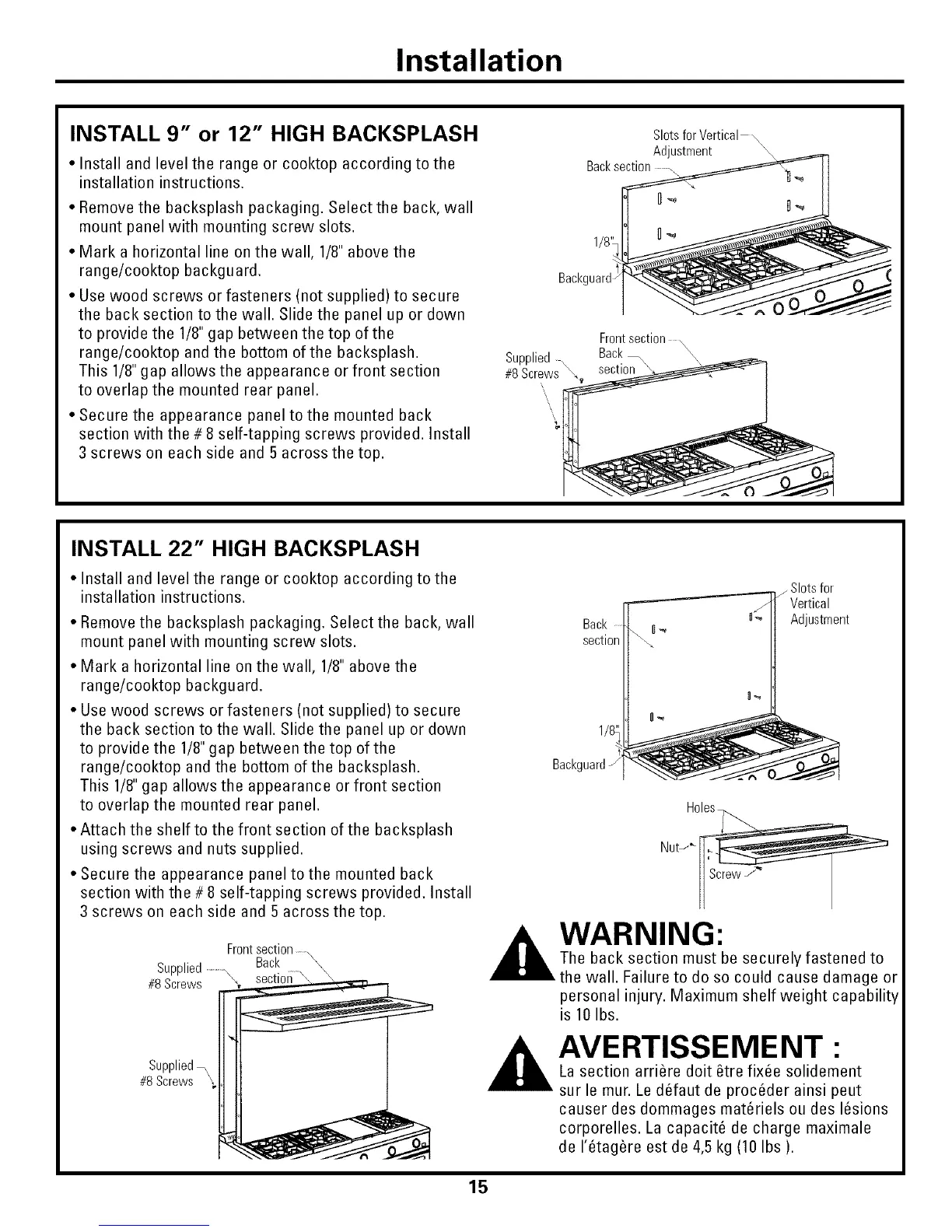

INSTALL 9" or 12" HIGH BACKSPLASH
• Install and level the range or cooktop according to the
installation instructions,
• Remove the backsplash packaging, Select the back, wall
mount panel with mounting screw slots.
• Mark a horizontal line on the wall, 1/8" above the
range/cooktop backguard,
• Use wood screws or fasteners (not supplied) to secure
the back section to the wall. Slide the panel up or down
to provide the 1/8" gap between the top of the
range/cooktop and the bottom of the backsplash.
This 1/8"gap allows the appearance or front section
to overlap the mounted rear panel.
• Secure the appearance panel to the mounted back
section with the # 8 self-tapping screws provided. Install
3 screws on each side and 5 across the top.
Bach
Supplied\
#BScrews \
\
\
\
\
Slotsfor Vertical \
Adjustment \
Backsection
l/B'L
Frontsection ,
Back--
section
INSTALL 22" HIGH BACKSPLASH
• Install and level the range or cooktop according to the
installation instructions,
• Remove the backsplash packaging, Select the back, wall
mount panel with mounting screw slots.
• Mark a horizontal line on the wall, 1/8" above the
range/cooktop backguard,
• Use wood screws or fasteners (not supplied) to secure
the back section to the wall, Slide the panel up or down
to provide the 1/8" gap between the top of the
range/cooktop and the bottom of the backsplash.
This 1/8"gap allows the appearance or front section
to overlap the mounted rear panel,
• Attach the shelf to the front section of the backsplash
using screws and nuts supplied.
• Secure the appearance panel to the mounted back
section with the # 8 self-tapping screws provided, Install
3 screws on each side and 5 across the top.
Frontsection
Supplied Back
#BScrews " section\
Supplied_
#8Screws
Back
section "\
II °"
Backguard_
/ Slots for
Vertical
Adjustment
WARNING:
The back section must be securely fastened to
the wall. Failure to do so could cause damage or
personal injury. Maximum shelf weight capability
is 10 Ibs.
AVERTISSEMENT •
La section arri_re doit _tre fix_e solidement
sur lemur. Le d_faut de proc_der ainsi peut
causer des dommages materiels ou des I_sions
corporelles. La capacit_ de charge maximale
de I'_tag_re estde 4,5 kg (10 Ibs ).
15
