– 11 –
WARNING: Disconnect electrical power to the
cooktop and turn OFF gas at the main valve before
performing any removal procedures.
Note: The cooktop itself is not equipped with a gas
shutoff valve. If installed correctly, a shutoff valve
will be in the main gas supply line “upstream” of
the appliance pressure regulator.
Maintop Removal
Note: Maintop removal is required for:
• Spark module
• Gas piping inspection
• Wiring service
• Valve replacement
• Jet holder service
• Manifold service
• Indicator light replacement
• Bezel replacement
• Isolation transformer
1. Remove the valve knobs.
2. Remove the burner caps and burner head
assemblies.
3. Remove the 1-1/16 in. burner ring locking nut.
4. Remove the large brass orifice tube from the
center of each burner base using a 20-mm or a
13/16-in. socket.
Caution: When removing the wire from the igniter,
make sure you do not damage the heat shrink
insulation on the wire. If damaged, repair the wire
insulation with fiberglass tape.
5. Lift each burner base and disconnect the push-
on wire terminal from the spark electrode.
Place the burner base assemblies in a safe
place.
Note: When assembling, check the integrity of the
heat shrink on the igniter leads going to the
electrodes. If damaged, proper ignition may not
occur. Repair the wire insulation with fiberglass
tape.

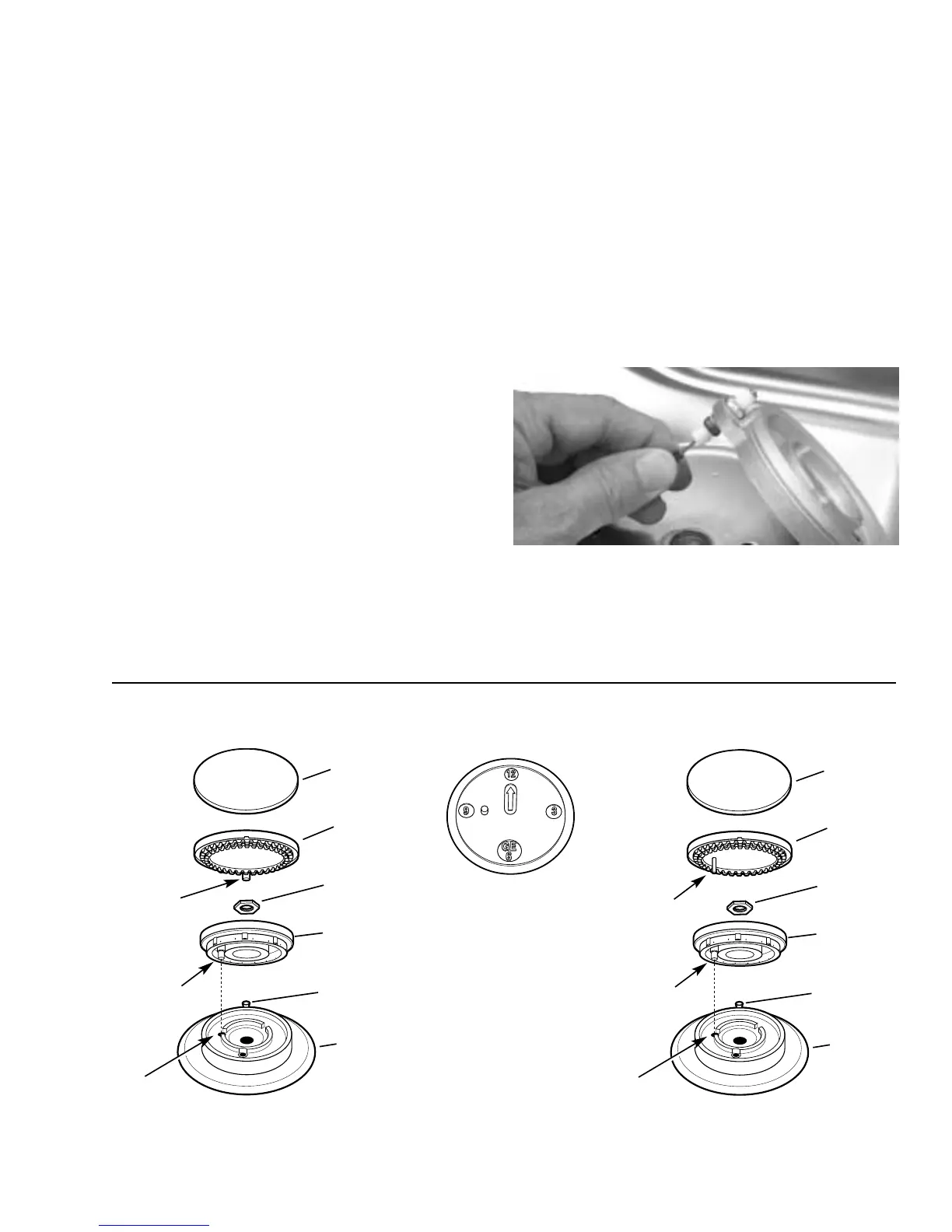

High Output Burners
Burner Head
(Brass)
Burner Base
Burner Cap
Locator Pin
NOTE: Locator pin fits
into burner base pin slot.
Electrode
Pin
Slot
Locator Pin
Burner Ring
(Aluminum)
Burner Ring
Locking Nut
Burner Head
(Brass)
Burner Base
Burner Cap
Locator Pin
NOTE: Locator pin fits
into burner base pin slot.
Electrode
Pin
Slot
Locator Pin
Burner Ring
(Aluminum)
Burner Ring
Locking Nut
Maximum Output Center Burner
To aid reassembly, each
brass Burner Head is
marked with a clock face.
Replace the Burner Head
with the arrow pointing
to the rear of the cooktop
(12 o’clock position).
-
-
