GE Monogram ZGU375NS Technical Service Guide

– 21 –

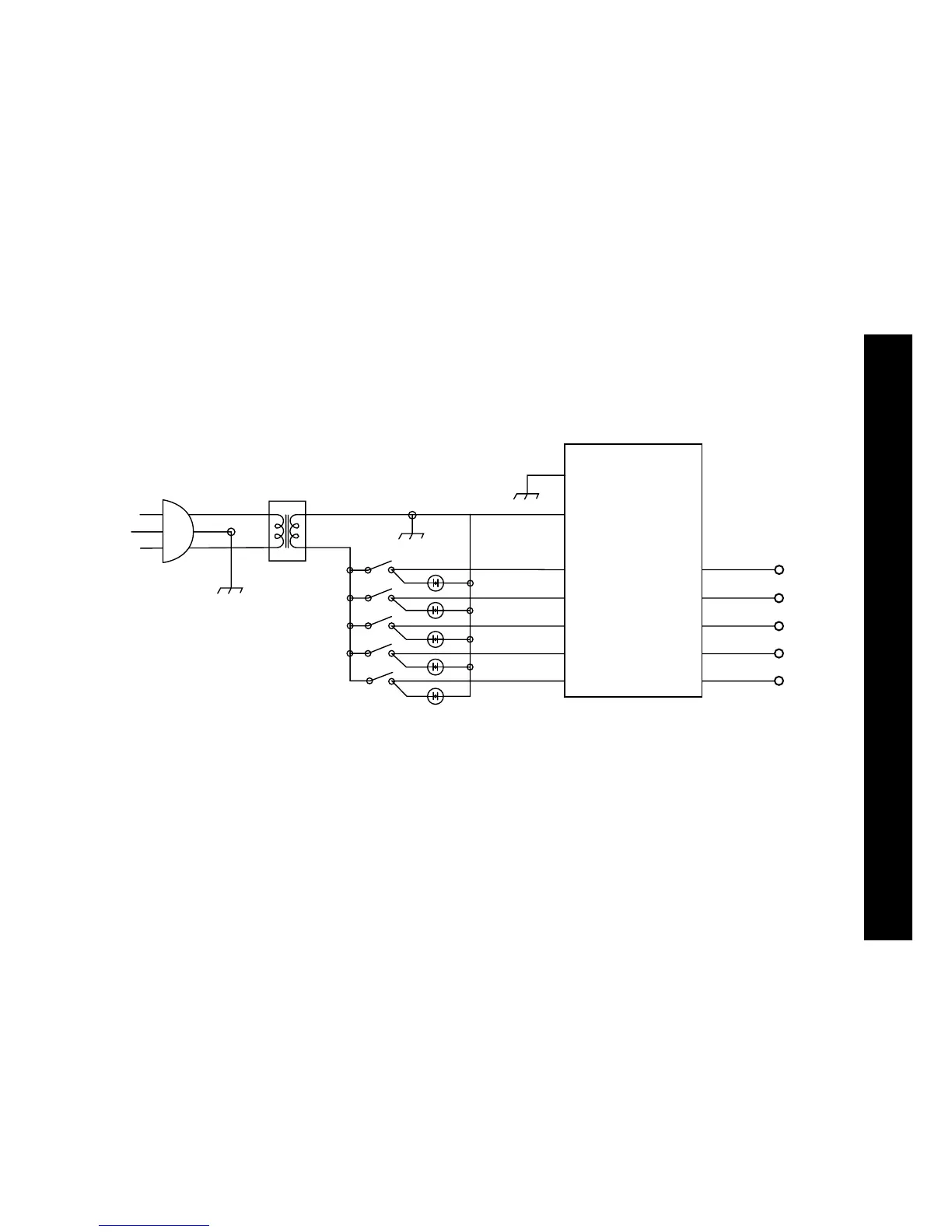

Schematics
Caution: Label all wires prior to disconnection
when servicing the controls. Wiring errors can
cause improper and dangerous operation. Verify
proper operation after servicing.
ELECTRODES
RR
LR
LF
RF
C
5 POINT
GAS RE-IGNITER
MODULE
SW5
SW4
SW3
SW2
SW1
4
5
3
2
1
INDICATOR
LIGHTS
VALVE
SWITCHES
RR
LR
LF
RF
C
120/230V
TRANSFORMER
120V
230V
POWER CORD
120 VAC IN
