4

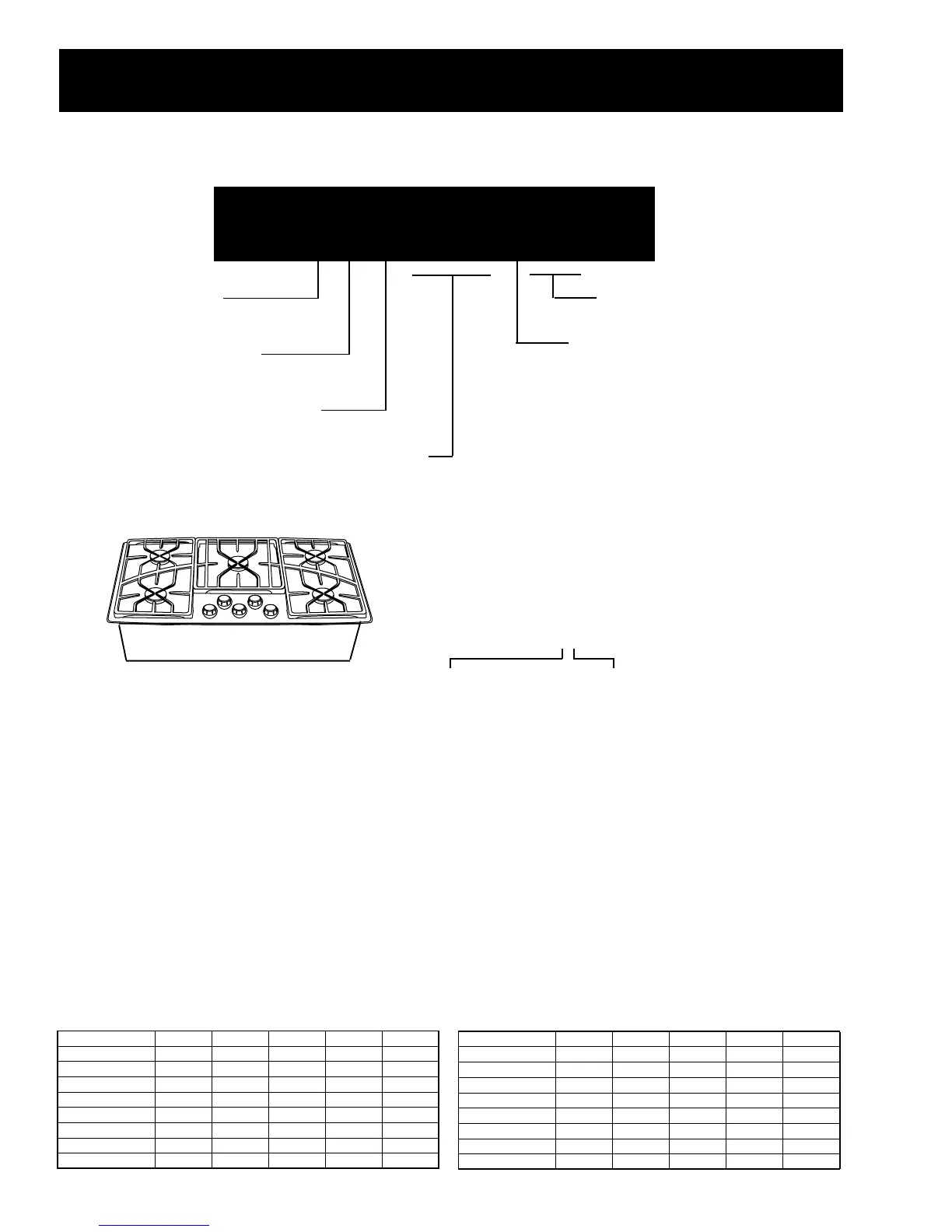

Specifications and Nomenclature
Model Number
Serial Number
The first two characters of the serial number
identify the month and year of manufacture.
Example: AA123456S = January, 2001
A - JAN 2005 - H
D - FEB 2004 - G
F - MAR 2003 - F
G - APR 2002 - D
H - MAY 2001 - A
L - JUN 2000 - Z
M - JUL 1999 - V
R - AUG 1998 - T
S - SEP 1997 - S
T - OCT 1996 - R
V - NOV 1995 - M
Z - DEC 1994 - L
Note: The technical sheet is located under the
control panel.
The letter designating the
year repeats every 12
years.
Example:
T - 1974
T - 1986
T - 1998
Z G U 3 7 5 N S
Monogram
GAS
Cooktop
Feature Pack
Designates featuresthe higher
the number, the more features.
Stainless Steel
Type of Gas to Be Used
N = Natural
L = LPG
The serial plate of your cooktop is located on
the bottom of the burner box. In addition to
the model and serial numbers, it tells you the
ratings of the burners and the type of fuel
and pressure the cooktop was adjusted for
when it left the factory. Also included are
minimum wall clearance requirements.
LP Gas
Orifice/Jet DMS
Natural Gas
LP @ 10" LF LR RR RF C
Rate, HI 8.5K 8.5K 8.5K 8.5K 15K
Rate,LOW 2.3K 2.3K 2.3K 2.3K 2.4K
Rate,SIM 1.1K 1.1K 1.1K 1.1K 1.1K
Main Orifice 0.81 mm 0.81 mm 0.81 mm 0.81 mm 1.10 mm
Sim. Orifice 0.34 mm 0.34 mm 0.34 mm 0.34 mm 0.37 mm
V
alve Jet 0.46 mm 0.46 mm 0.46 mm 0.46 mm 0.46 mm
Main Or. Colo
r
White White White White Black
Sim. Or. Code EEEEG
Natural @ 4" LF LR RR RF C
Rate, HI 10.5K 12K 12K 10.5K 15K
Rate,LOW 2.5K 2.5K 2.5K 2.5K 3.4K
Rate,SIM 1.2K 1.2K 1.2K 1.2K 1.2K
Main Orifice 1.45mm 1.59 mm 1.59 mm 1.45mm 1.78 mm
Sim. Orifice 0.57 mm 0.57 mm 0.57 mm 0.57 mm 0.51 mm
Valve Jet 0.71 mm 0.71 mm 0.71 mm 0.71 mm 0.71 mm
Main Or. Colo
r
Orange Red Red Orange Yellow
Sim. Or. Code PPPPV
