– 13 –

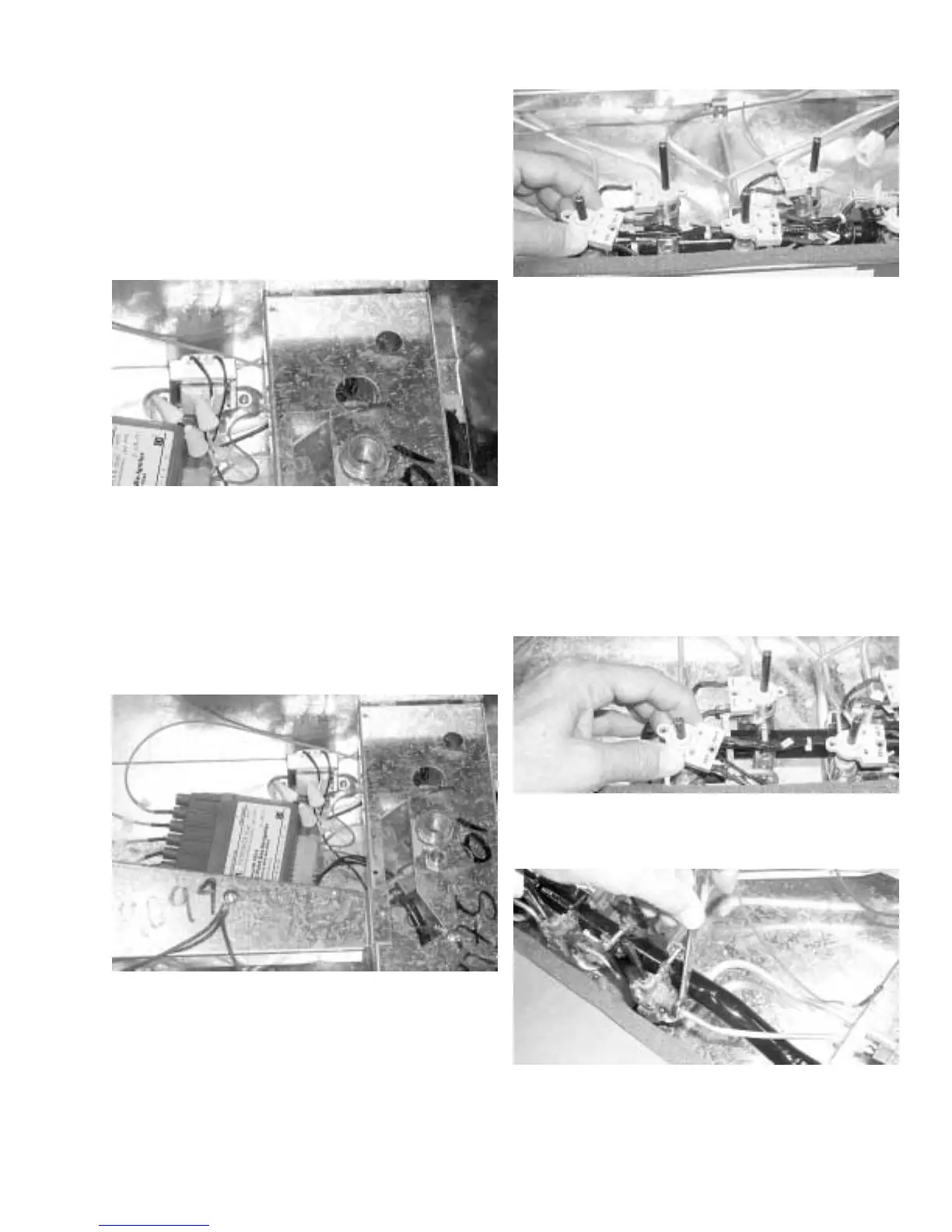

Transformer Removal
1. Remove the maintop (see
Maintop Removal
).
2. Remove the heat shield held by 4 Phillips
screws.
Note: Note the color and position of the 4
transformer wires.
3. Remove 3 wire screw connectors and 1 ground
connector screw.
4. Remove 2 screws and the transformer.
Igniter Switch Removal
1. Remove the maintop (see
Maintop Removal
).
2. Unplug the wire connector from the spark
module to the igniter switch.
3. Remove 2 green ground wire connectors and 1
wire nut connection to the transformer.
4. Remove the C-clips holding the igniter switches
to the valve stems.
Note: Note the color/part number and position of
the igniter switches.
5. Lift each igniter switch off the valve stem.
Note: When replacing the switch, replace the
entire harness with colors in same positions. The
bottom of the switch is molded to conform to the
top of the valve for a locked-in fit. Reconnect both
ground wires and replace wire ties.
Valve Removal
1. Remove the maintop (see
Maintop Removal
).
2. Remove the C-clips holding the igniter switches
to the valve stems.
3. Lift the igniter switches off the valve stems.
(Note the color/part number and positions of
the switches.)
4. Remove the 3/8-in. nut on the gas line to the
simmer jet holder and remove the gas line.
To Next Page
