GE Monogram ZGU375NS Technical Service Guide

– 15 –

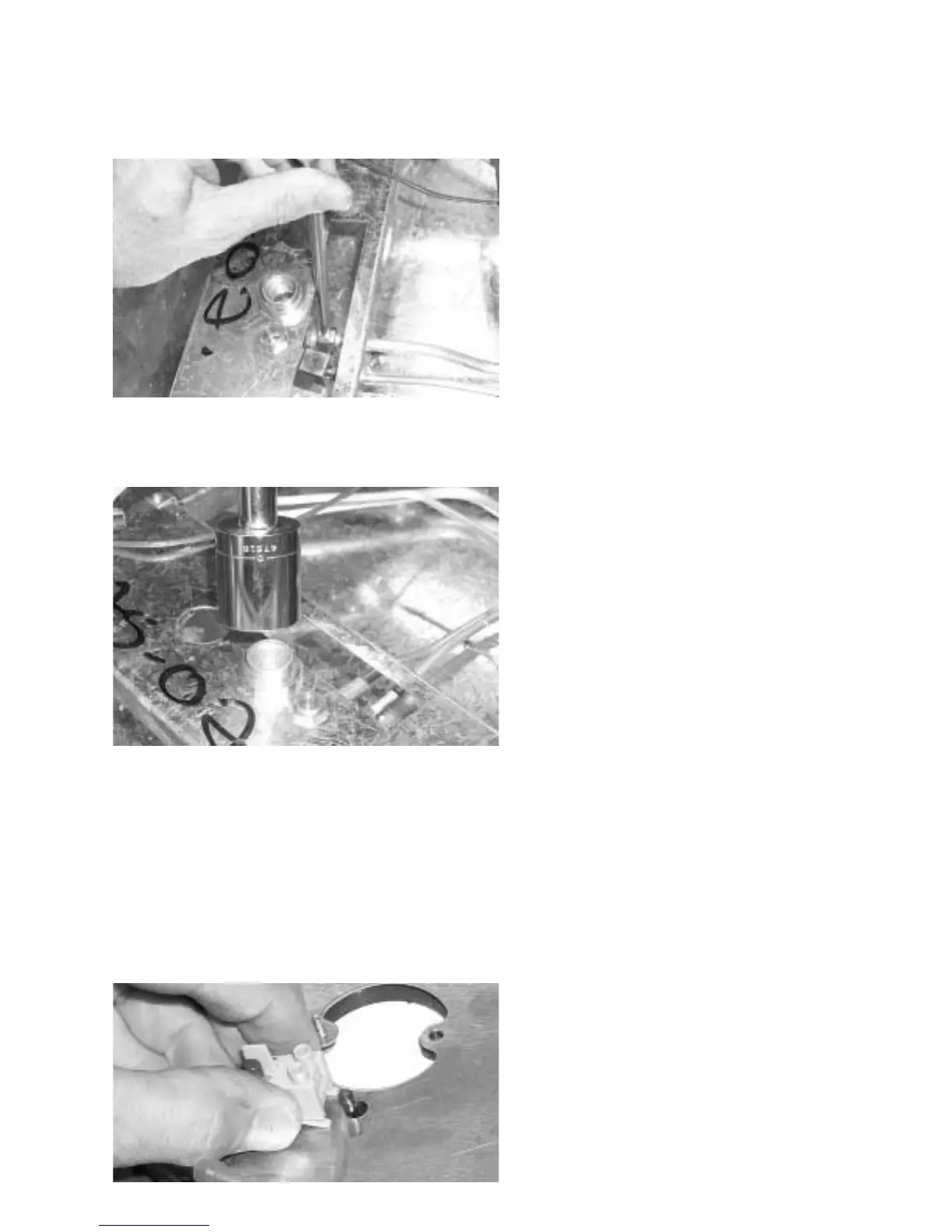

Main Jet Holder Removal
1. Remove the maintop (see Maintop Removal ).
2. Remove the 9/16-in. nut on the gas line.
3. Remove the 5/8-in. nut on the jet holder and
remove the jet holder.
Burner Light Removal
1. Remove the maintop (see Maintop Removal ).
2. Turn the top face down on a protected surface.
3. Disconnect the 2 blade connections.
4. Slide the light housing unit in the direction of the
connector blades to remove.
Center Brace Removal
1. Remove the maintop (see Maintop Removal ).
2. Remove the simmer jet holders (see
Simmer
Jet Holder Removal
).
3. Remove the main jet holders (see
Main Jet
Holder Removal
).
4. Remove the heat shield held by 4 Phillips
screws.
5. Remove 3 screws and the center brace.
End Brace Removal
1. Remove the maintop (see Maintop Removal ).
2. Remove the simmer jet holders (see
Simmer
Jet Holder Removal ).
3. Remove the main jet holders (see
Main Jet
Holder Removal ).
4. Remove the heat shield held by 4 Phillips
screws (if removing the right end brace).
5. Remove the screws to the center brace.
6. Remove 2 holddown brackets from under the
countertop, lift the burner box from the counter,
turn it 10 degrees, and insert cardboard or
wood under the burner box to protect the
countertop.
7. Remove the 4 brace screws from the exterior
of the burner box and remove the brace.
