GE Multilin F650 Digital Bay Controller 5-115

5 SETPOINTS 5.6 INPUTS/OUTPUTS

e) WITH DOUBLE VOLTAGE SUPERVISION

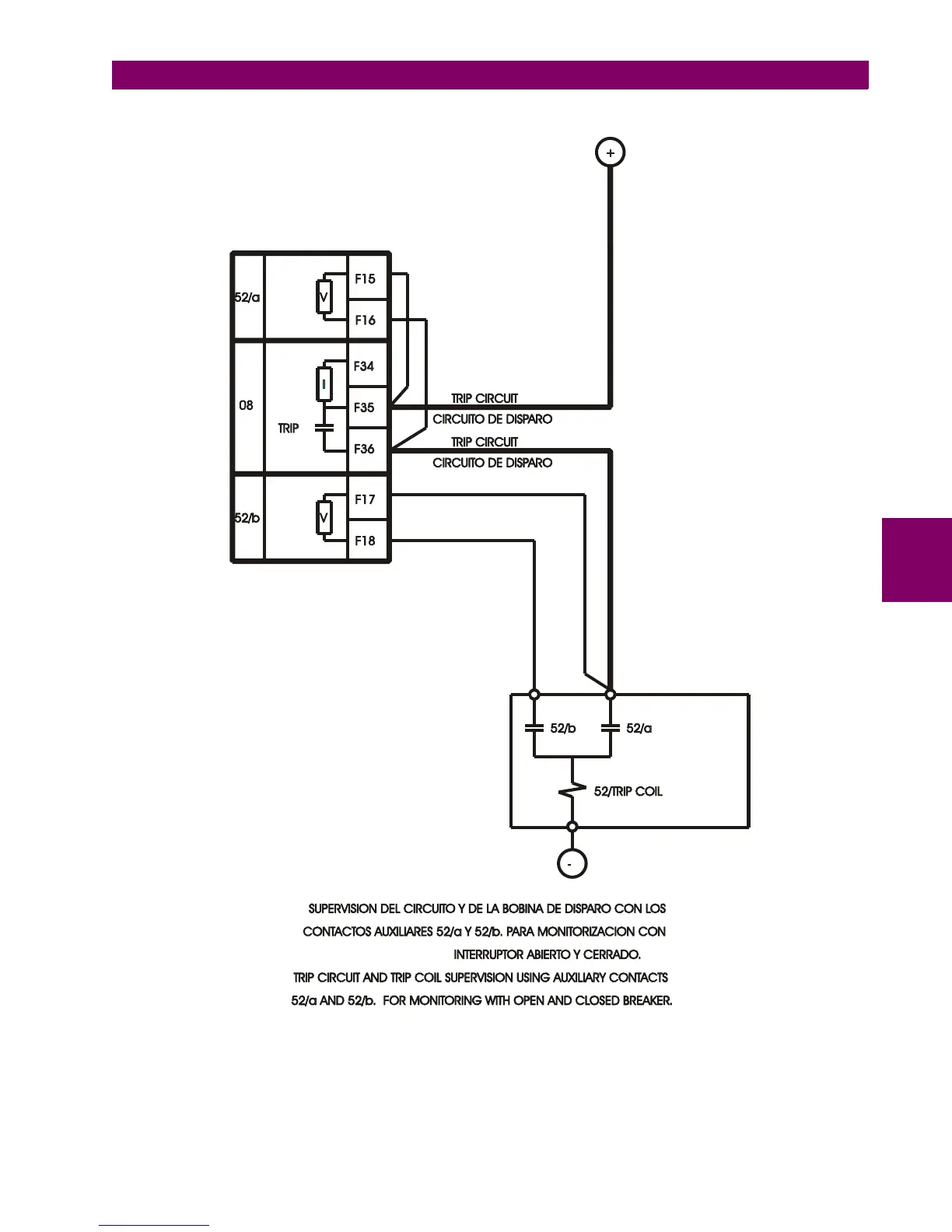

Figure 5–36: SUPERVISION APPLICATION WITH AUXILIARY CONTACTS 52A AND 52B (A6631F4)
