GE Multilin F650 Digital Bay Controller 4-17
4 HUMAN INTERFACES 4.1 ENERVISTA 650 SETUP SOFTWARE INTERFACE
4
4.1.6.5 PRINT SETUP
Option to configure the printing options and settings for the printing device.
4.1.6.6 PRINT PREVIEW
Option to preview the whole settings and configuration file (*.650) in paper format to be printed as shown in Figure 4–9:.

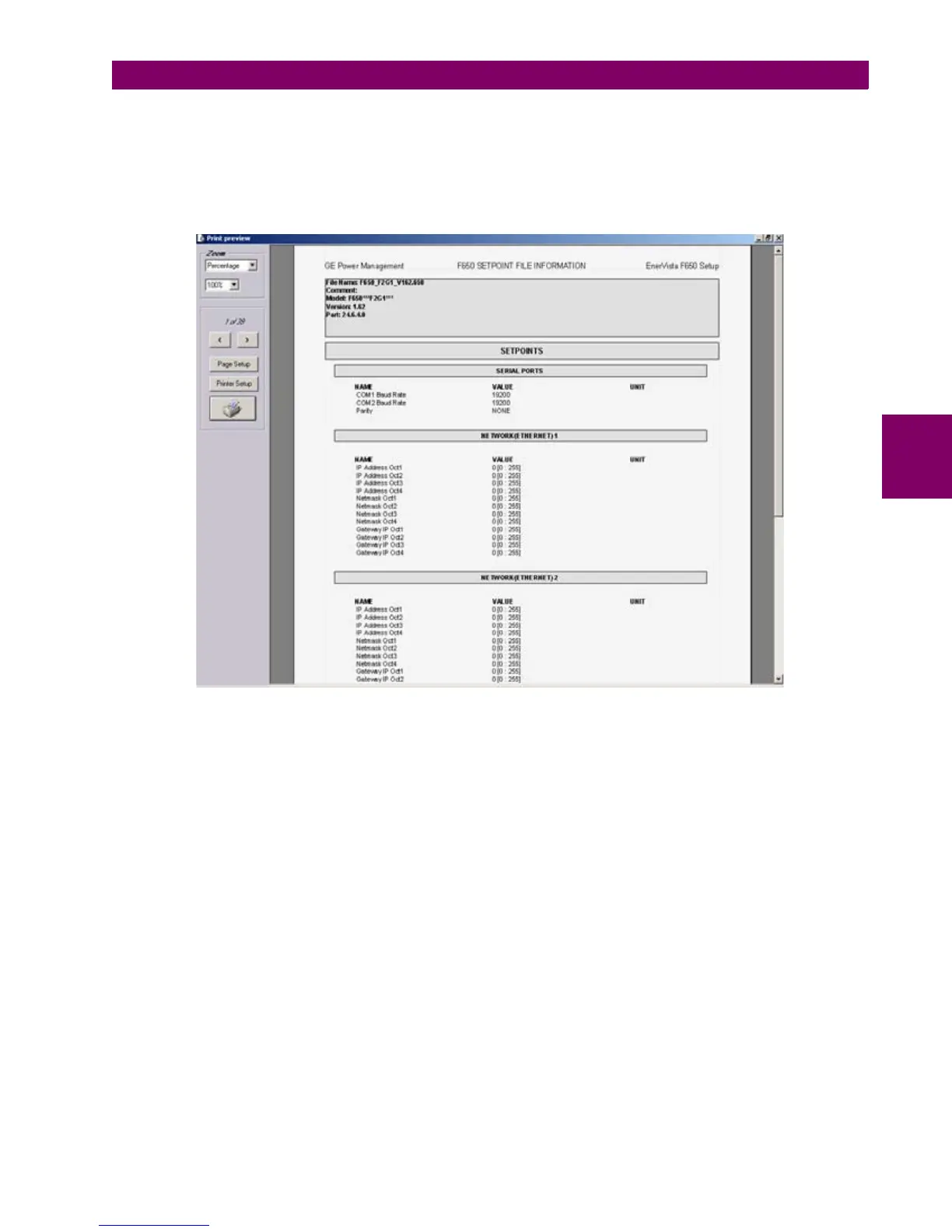

Figure 4–9: PRINT PREVIEW OF SETTINGS FILE
4.1.6.7 PRINT
In this option, the program will print the relay configuration using the PC default (active) printer on port COMx or LPT. This
option is active only in off-line mode, in file edition, and not in on-line mode, connected with the relay.
4.1.6.8 PRINT TO FILE (*XLS)
Possibility to export the configuration file to an Excel file using the “Print to file (*.xls)” option.
