4.1.7.8 CLOCK
This menu allows to update the date and time of the relay, either synchronizing them with the PC clock, or entering the
information manually.

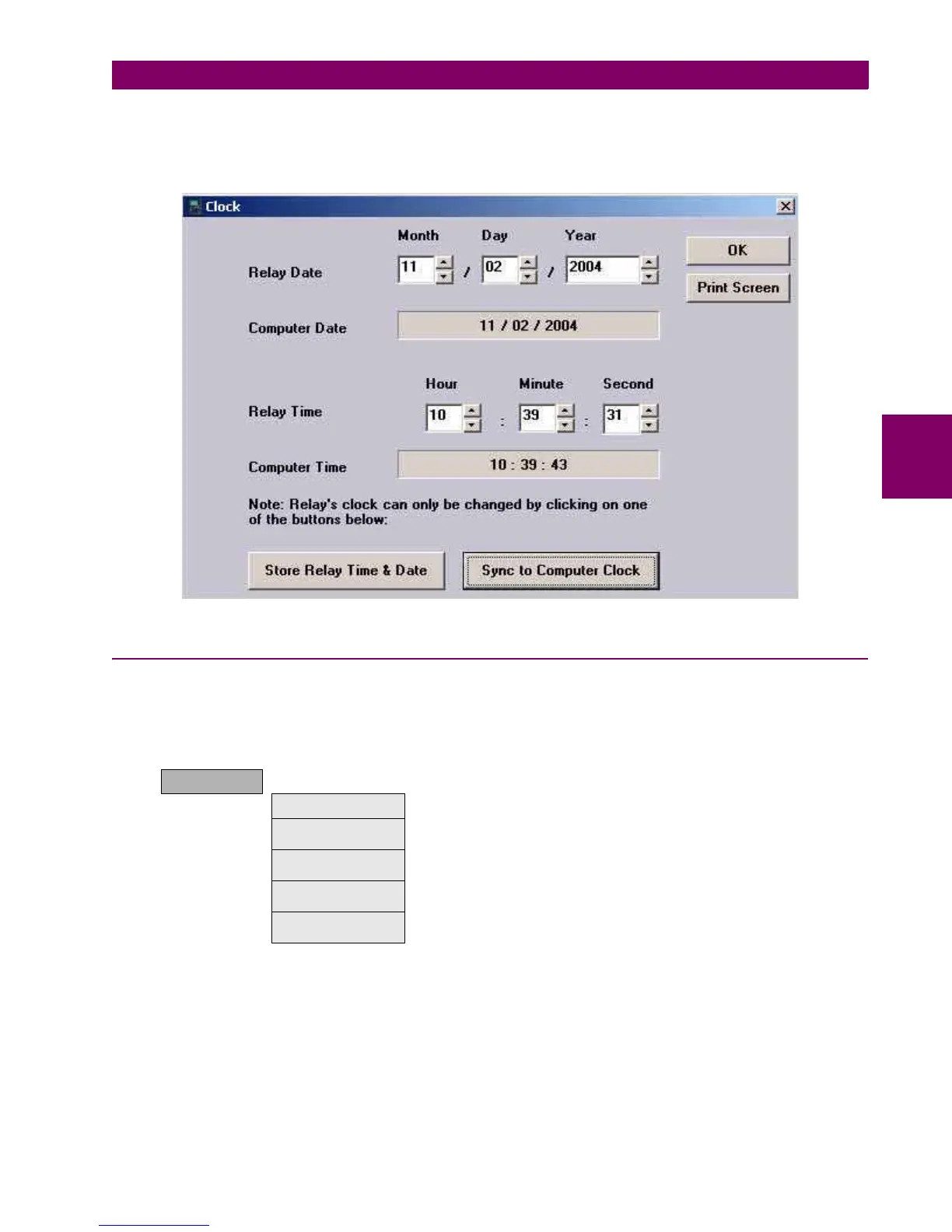

Figure 4â12: CLOCK
4.1.8 ACTUAL VALUES MENU OVERVIEW
The menu bar in the main screen of EnerVista 650 Setup software shows the ACTUAL menu option. This option
concentrates and displays all the status of protection, control elements, metering, counters information, oscillography,
events, fault locator, etc. This section shows only the structure of menus in EnerVista 650 Setup.
Table 4â16: GENERAL OVERVIEW OF ACTUAL VALUES MAIN MENU:
4.1.8.1 FRONT PANEL
The front panel menu shows only the LEDs submenu where all the front LEDs can be monitored.
4.1.8.2 STATUS
The following menu includes all the available protection status in the device.
ACTUAL
Front Panel>LEDs The relay front LEDs status is shown on this menu.
Status
Protection and control status signals for all available protection functions
in device.
Metering
All metering values available in device. Primary and secondary values,
frequency and phasor diagram provided.
Inputs/Outputs
All input and output status provided. For contact inputs and contact
outputs as well as virtual input and virtual output signals.
Records
Only enabled in on line mode, retrieval of all the available records in
device. Snapshot events, control events, oscillography and fault reports.
