– 11 –

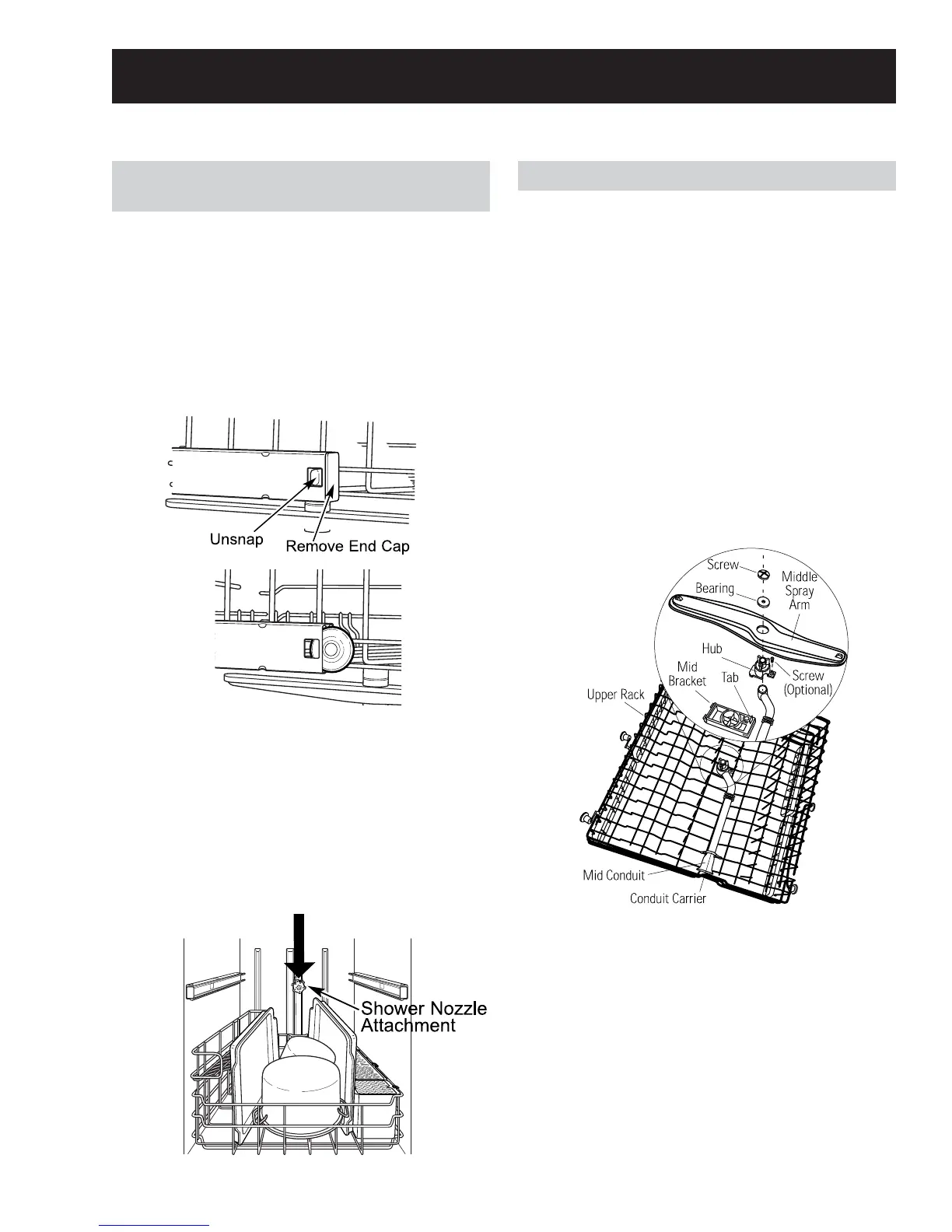

Middle Spray Arm
1. Check holes in spray arm for bits of china,
seeds, and other foreign matter.
2. Check spray arms for rotation.
Removal and Replacement
1. Pull upper rack all the way out.
2. Remove plastic screw on bottom of middle
spray arm. This will allow the middle spray
arm and bearing to be removed.
Note: Install middle spray arm with spray jets
facing the upper rack. Place bearing between
spray arm screw and bottom of the middle arm.
Components
Note: If the upper rack experiences poor cleaning
problems, ensure the middle spray arm is turning
freely. If not, disassemble the middle spray arm
and clean the bearing surface, then reassemble.
Using the Dishwasher with the Upper
Rack Removed
1. Unsnap and remove the end cap on each side
of the rails.
2. Pull the rack straight out and off the rails.
3. Replace the end caps.
4. Push the rails all the way back into the
dishwasher.
5. Slide the shower nozzle attachment over the
spout.
6. The dishwasher is now ready for use.
Note: Always use the shower nozzle when the
upper rack is removed.
