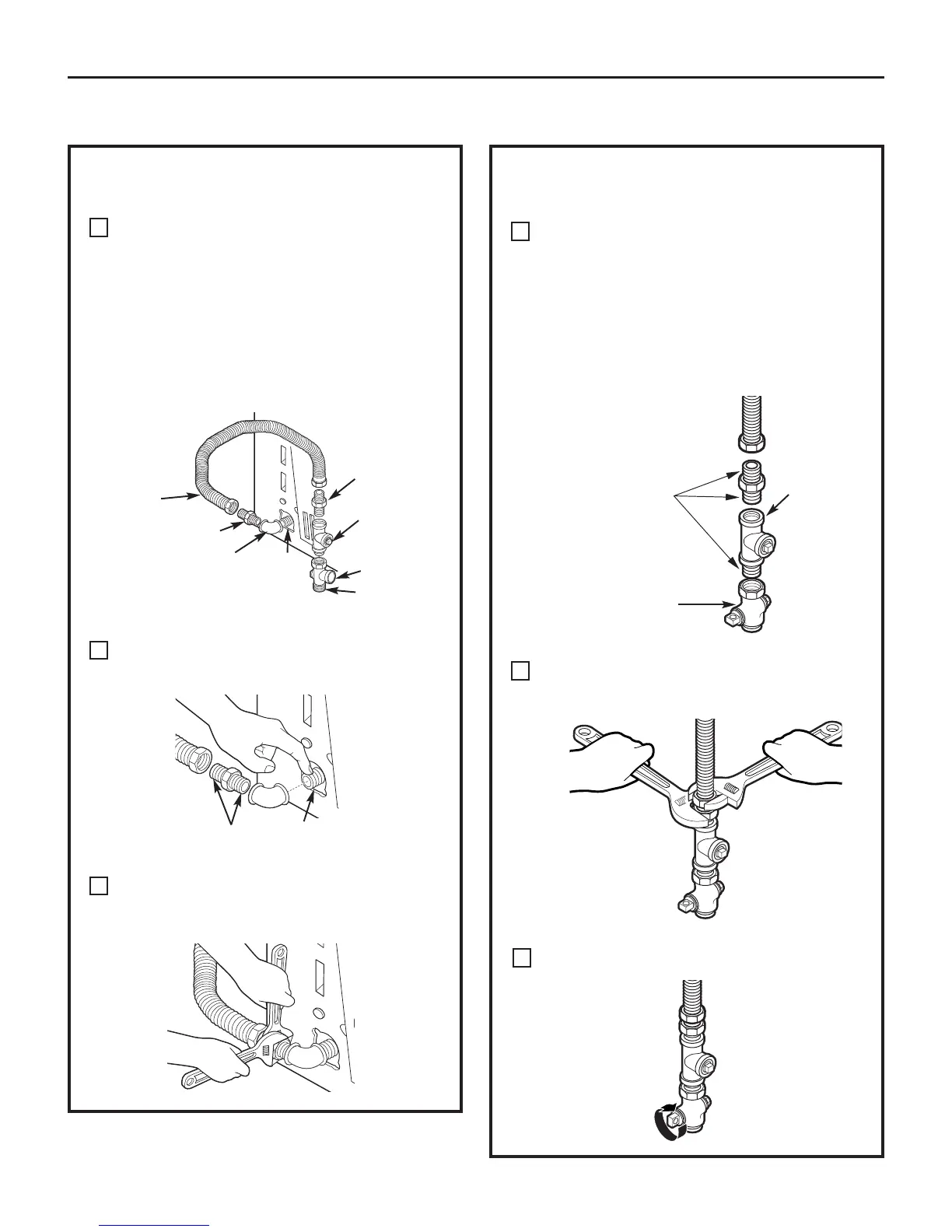

Install a 1/8″ NPT plugged tapping to the dryer
gas line shut-off valve for checking gas inlet
pressure.
Install a flare union adapter to the plugged
tapping.
#$) Apply pipe compound or Teflon
®
tape to
the threads of the adapter and plugged tapping.
=BC0;;0C8>==BCAD2C8>=B
Attach the flexible metal gas line connector to
the adapter.
Tighten the flexible gas line connection, using
two adjustable wrenches.
Tighten all connections, using two adjustable
wrenches. >=>C>E4AC867C4=
$##)#)'.'
)$)((*%%!.2>=C
Apply pipe compound or
Teflon
®
tape to all male
threads.
Open the gas shut-off valve.
Shut-Off Valve
Plugged
Tapping
$##)#)'.'
)$)((*%%!.
Install a female 3/8″ NPT elbow at the end
of the dryer gas inlet.
Install a 3/8″ flare union adapter to the female
elbow.
"%$')#) Use a pipe wrench to securely
hold on to the end of the dryer gas inlet
to prevent twisting the inlet.
#$) Apply pipe compound or Teflon
®
tape to
the threads of the adapter and dryer gas inlet.
Elbow
Adapter
Items not supplied
Adapter
1/8″ NPT
Pipe Plug for
Checking Gas
Inlet Pressure
Shut-Off Valve
Pipe size at
least 1/2″
3/8″ NPT
New Metal
Flexible Gas
Line Connector
Apply pipe compound to the
adapter and dryer gas inlet.
$##)#('.'2>=C
