GE Profile PDCF1NBW User Manual

– 8 –
16

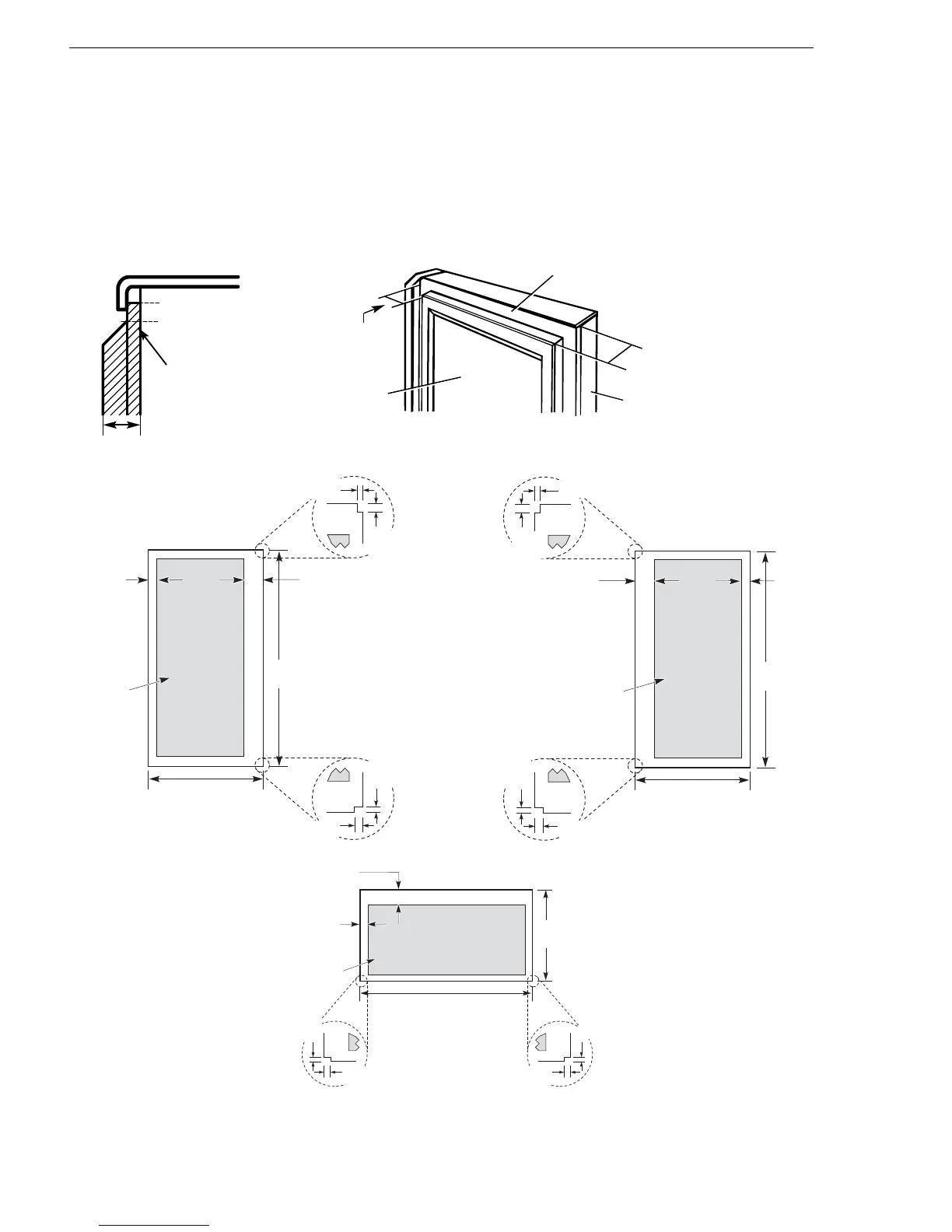

Dimensions for Custom Wood Panels
3/4″ (19 mm) or Raised Panel
A raised panel design screwed or glued to a 1/4″ (6 mm) thick backing, or a 3/4″ (19 mm) routed board
can be used. The raised portion of the panel must be fabricated to permit clearances of at least 2″ (5.1 cm)
from the handle side for fingertip clearance.
Panels thicker than 1/4″ (6 mm), up to 3/4″ (19 mm) max., will require that the outer 5/16″ (8 mm) of
panel perimeter be no thicker than 1/4″ (6 mm).
Weight limitations for custom panels:
Fresh Food 10 lbs. (4.5 kg) max. for each door
Freezer Door 18 lbs. (8 kg) max.
2″ (5.1 cm)
Clearance
Handle Side
Appearance
Panel
Refrigerator
Door
1/4″ (6 mm)
Thick Backing
3/4″
(19 mm)
Panels thicker than 1/4″ (6 mm)
1/4″ (6 mm) max
3/4″ (19 mm)
5/16″ (8 mm)
Left Fresh Food Door
Freezer Door
Top, left and
bottom
16 29/32″ (42.9 cm)
5/16″ (8 mm)
minimum at
1/4″ (6 mm)
thickness
Raised portion
of panel
2″ (51 mm)
minimum at
1/4″ (6 mm)
thickness
Handle side
26 3/32″
(66.3 cm)
2″ (51 mm) minimum at
1/4″ (6 mm) thickness
Handle side
Left, right and
bottom sides
5/16″ (8 mm) minimum
at 1/4″ (6 mm) thickness
35 29/32″ (91.2 cm)
Raised
portion
of panel
28 15/16″
(73.5 cm)
Right Fresh Food Door
Top, left and
bottom
16 29/32″ (42.9 cm)
5/16″ (8 mm)
minimum at
1/4″ (6 mm)
thickness
Raised portion
of panel
2″ (51 mm)
minimum at
1/4″ (6 mm)
thickness
Handle side
28 15/16″
(73.5 cm)
1/8″
(3 mm)
1/8″
(3 mm)
1/8″
(3 mm)
1/8″
(3 mm)
1/8″
(3 mm)
1/4″
(6 mm)
1/4″
(6 mm)
1/4″
(6 mm)
1/4″
(6 mm)
1/4″
(6 mm)
1/8″
(3 mm)
1/4″
(6 mm)
