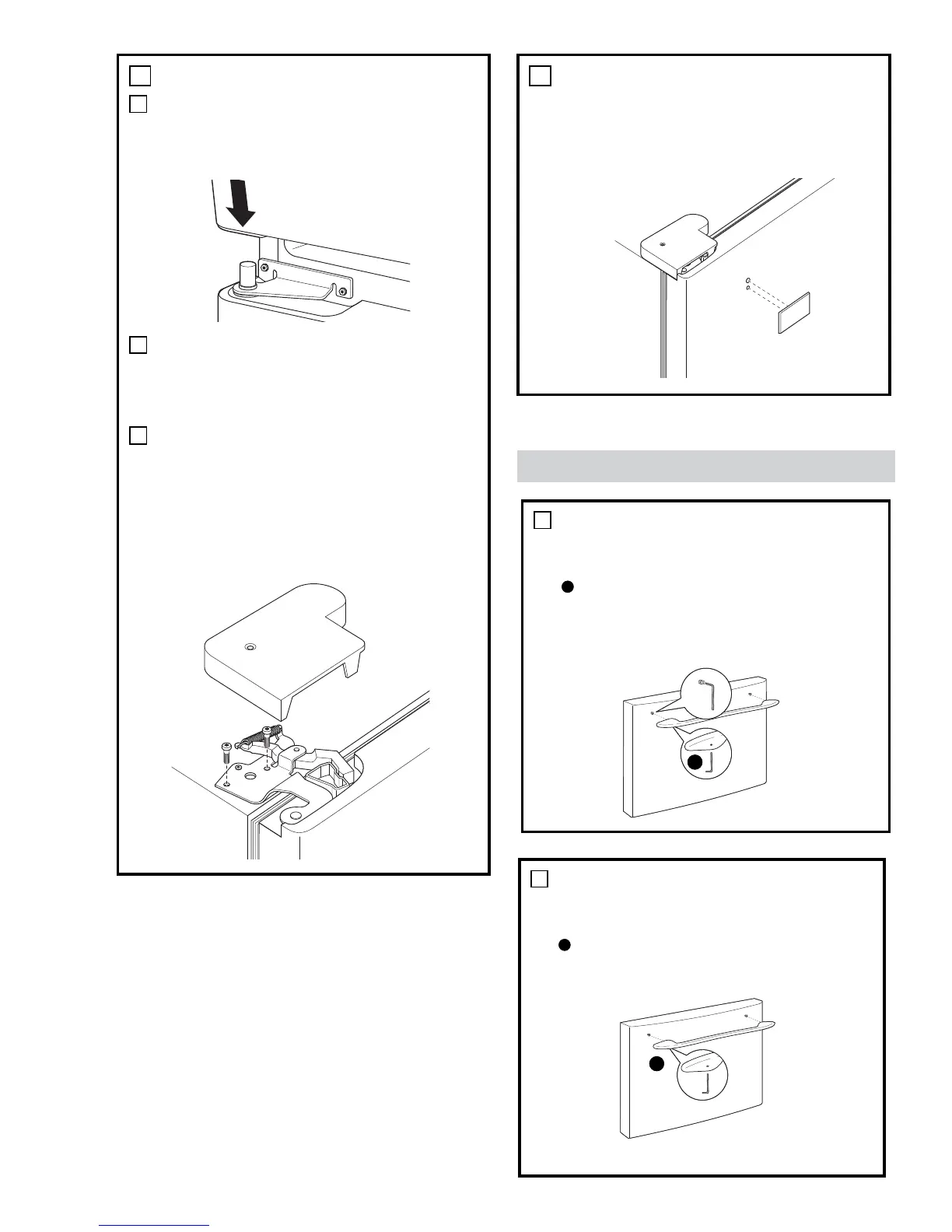

REHANG REFRIGERATOR DOOR
Lower the refrigerator door onto the
center hinge pin. Ensure that the plastic
hinge pin thimble is on the center hinge
pin or inside door hinge pin hole located
in the bottom of the door.
Insert the top hinge pin into the hinge hole
on top of the refrigerator door. Make sure
the door is aligned with the cabinet.
Attach the hinge to the top of the cabinet
loosely with the bolts.
Make sure the gasket on the door is
flush against the cabinet and is not folded.
Support the door on the handle side and
make sure the door is straight and the gap
between the doors is even across the
front. While holding the door in place,
tighten the top hinge bolts. Replace the
hinge cover.
6
A
B
C
INSTALL THE LOGO BADGE
Remove the adhesive backing paper
and align the pins on the back of the
badge with the holes in the door. Apply
pressure to the badge to ensure it sticks
to the door.
7
REMOVE THE FREEZER DOOR
HANDLE
Stainless steel and plastic handles:
Loosen the set screws located on the underside
of the handle with the 1/8″ Allen wrench and
remove the handle.
NOTE: If the handle mounting fasteners need to
be tightened or removed use a 1/4″ Allen wrench.
A
7
A
1
1
ATTACH THE FREEZER DOOR
HANDLE
Stainless steel and plastic handles:
Attach the handle firmly to the mounting
fasteners and tighten the set screws on the
bottom of the handle with a 1/8″ Allen wrench.
A
9
A
(appearance may vary)
2
2
Freezer Drawer Handle
