– 50 –

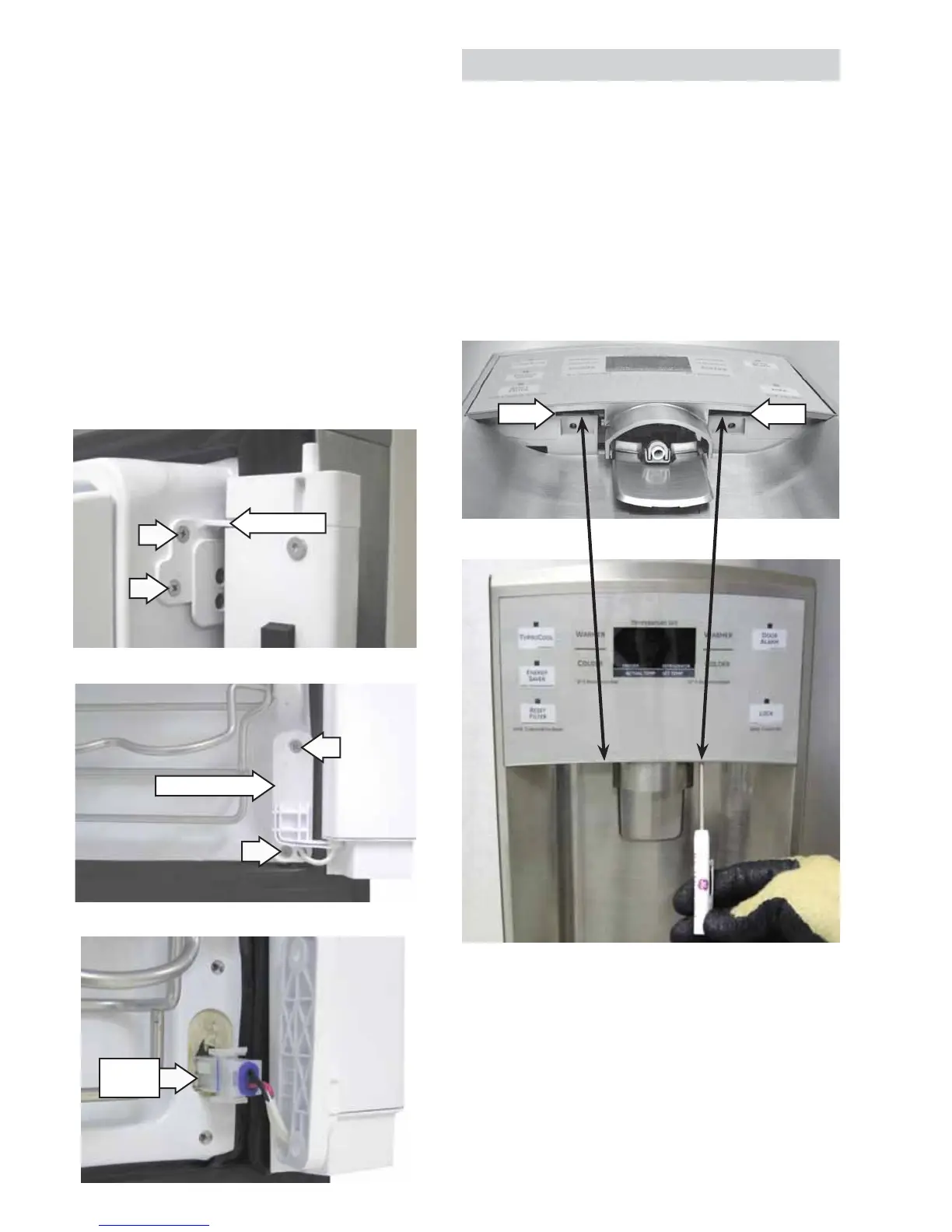

The articulating door mullion consists of the mullion,
heater, internal spring, and 2 hinges. It is available
only as an assembly.
Note: If the Energy Saver light is lit, then the heaters
in the vertical and horizontal mullions are disabled.
The heater operates on 13.6 VDC when both doors
are closed. It is necessary to close the left side door
and close the right side light switch to test for the
operating voltage of 13.6 VDC. The resistance of the
heater is approximately 4400 Ω.
To replace the articulating door mullion assembly it
is necessary to remove the 2 Phillips-head screws
from the top and bottom hinges. The wire harness
can be pulled out from the recess in the bottom of
the door and disconnected.
Top Hinge
Bottom Hinge
Wire
Harness
Water Dispenser and Interface
The water dispenser assembly incorporates the
interface used for temperature control and features.
The interface has 2 tabs that hold it to the cradle
support. The tabs are located above 2 slots located
behind the bottom of the interface.
To remove the water dispenser assembly:
Using a fl at-blade screwdriver, push up on each 1.
tab, then pry the bottom of the interface away
from the dispenser recess.
Slot
Slot
Slot
(Continued next page)
