– 27 –

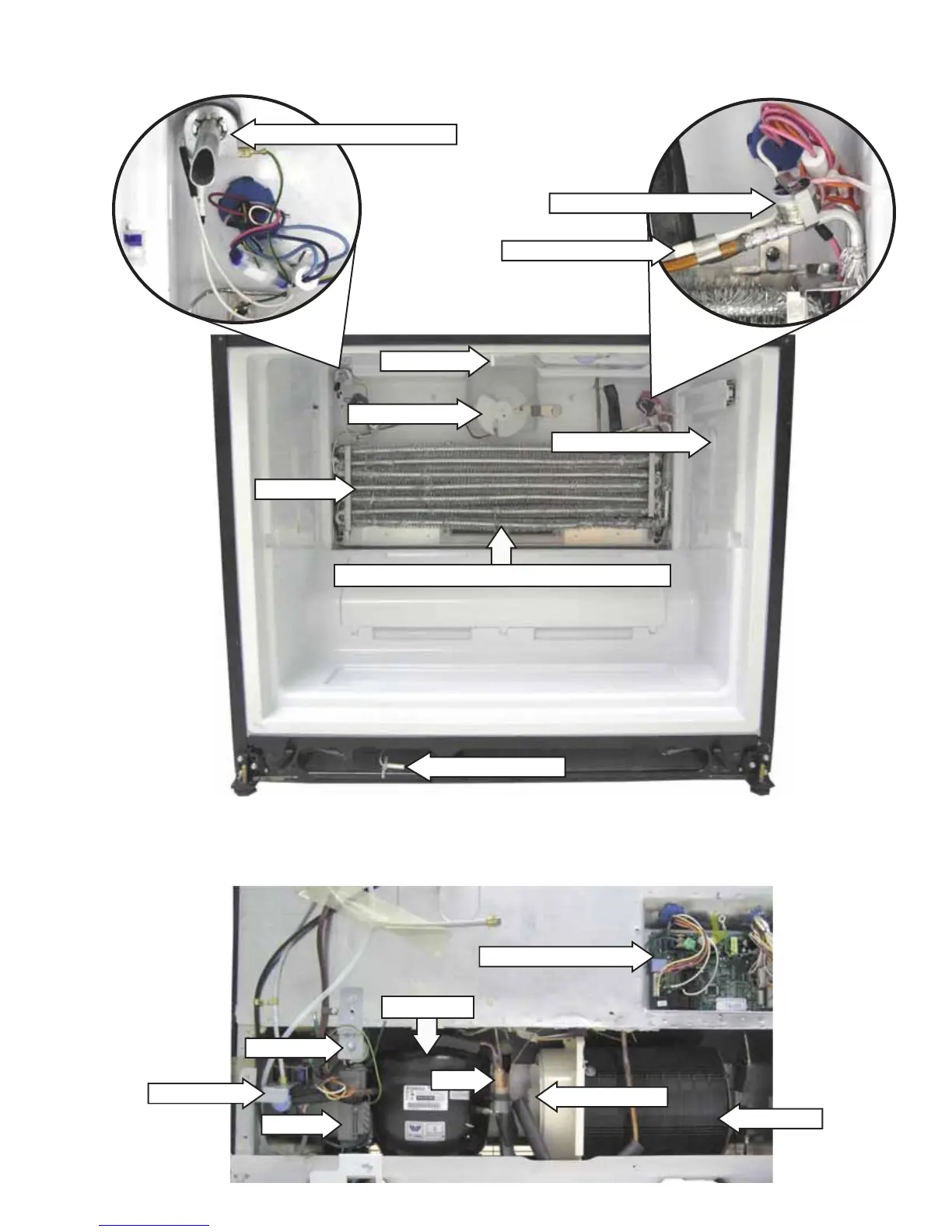

Freezer Compartment
Over Temperature Thermostat
Icemaker Fill Tube and Heater
Evaporator
Evaporator Fan
Defrost Heater (recessed in bottom of evaporator)
Rear View
Main Control Board
Water Valve
Drier
EMI Filter
Condensor Fan
Condenser
Inverter
Light Switch
Thermistor Location
Compressor
Ambient Thermistor
Note: The EMI
fi lter is not
utilized on
20/22' single
and French
door models.
Evaporator Thermistor
