Separate the styrofoam air tower that houses 9.
the damper.

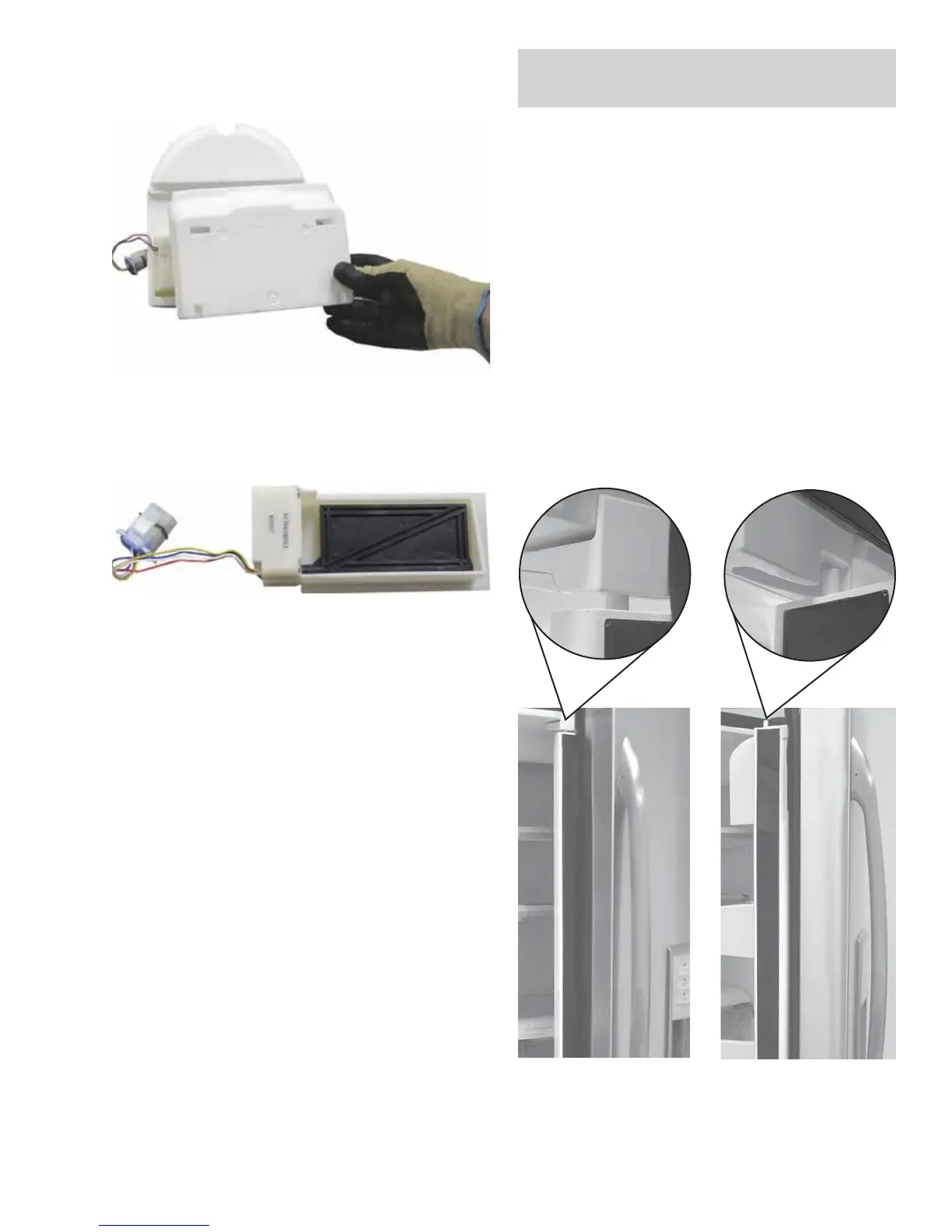

Motorized Damper Removed
Remove the damper from the separated 10.
styrofoam air tower.
Articulating Door Mullion (French Door
Models)
The articulating door mullion is attached to the
right side door, and provides a movable center
mullion that maximizes access to the fresh food
compartment. With both refrigerator doors closed
or only the left side door opened, the mullion stays
in position. When the right side door is opened, the
spring-loaded mullion is activated to fold against
the handle side of the door liner.
The pin on top of the mullion and the track, located
at the top center front of the refrigerator, ensure
proper mullion bar alignment upon closure of the
right side door.
Door Closed -
Pin in Track
Door Opening -
Pin Exiting Track
Note: To prevent moisture and ice from
accumulating in the fresh food compartment:
It is imperative to properly seal the front to the •
back of the air tower.
Ensure the gasket is placed between the bottom •
of the air tower and the liner.
