VFD (Vacuum Fluorescent Display)

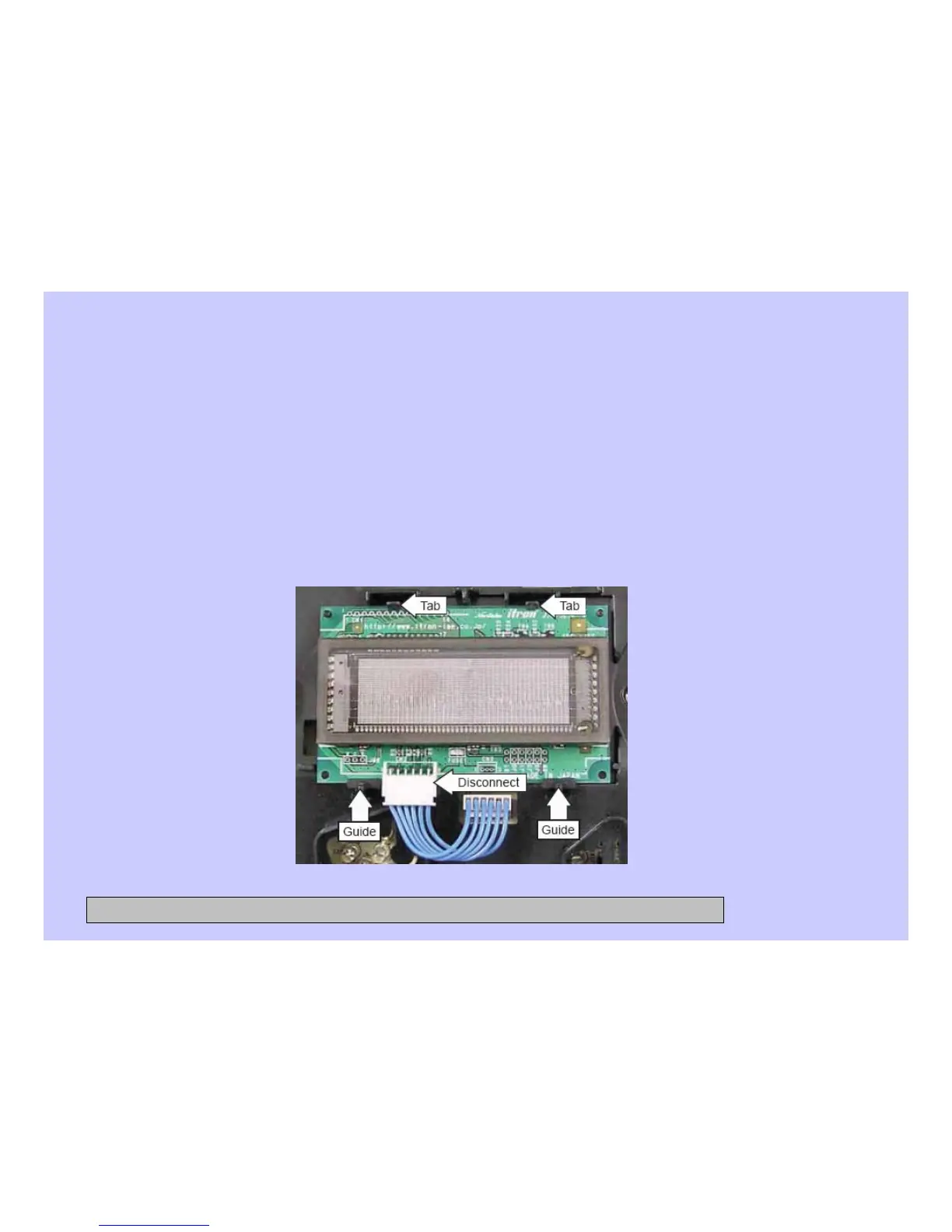

To remove the VFD:
1. Remove the control panel. (See 1. Control Panel.)
2. Disconnect the wire harness from the VFD.
3. Press the 2 tabs that hold the VFD to the control panel, lift the VFD and remove
it from the 2 guides at the bottom.
