Dispenser Assembly (cont.)

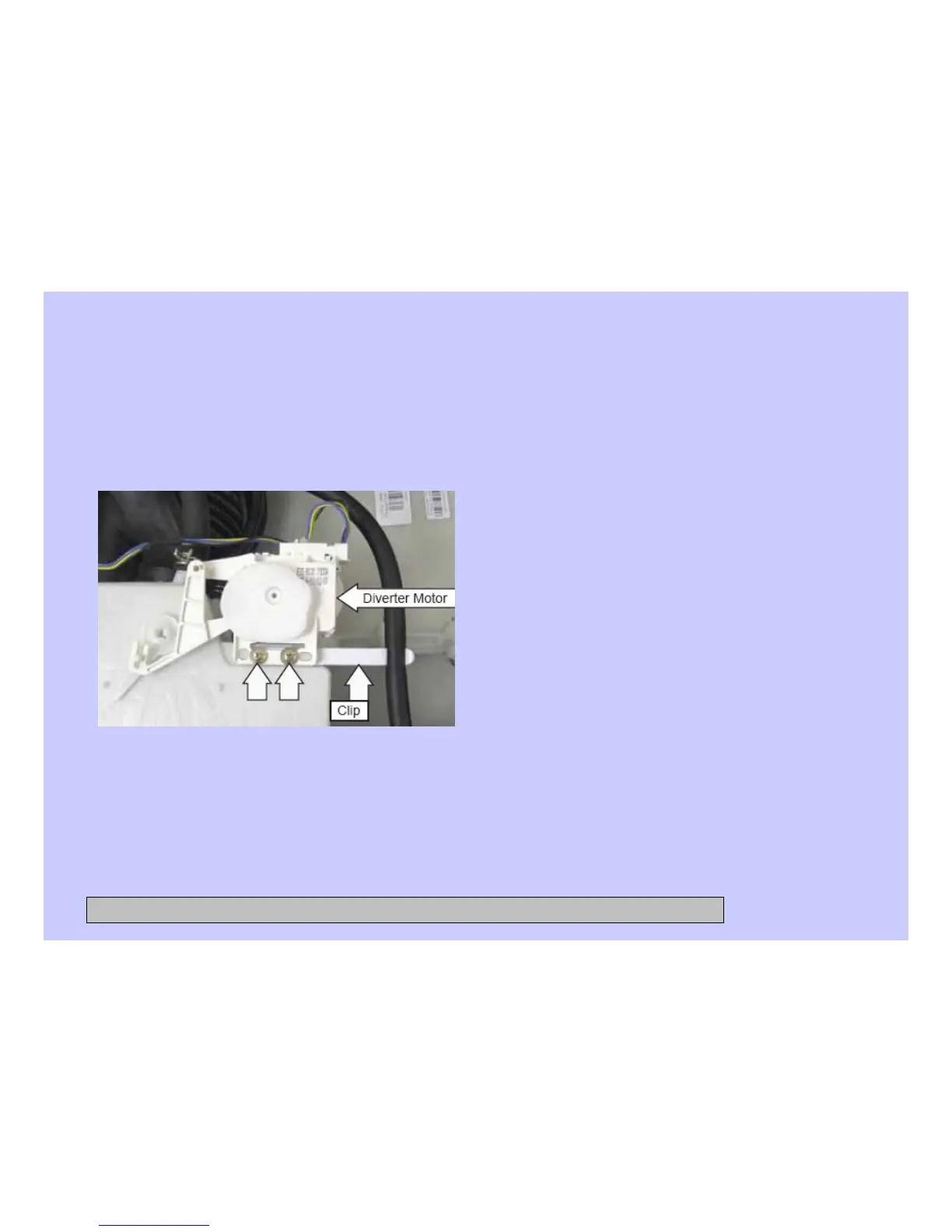

3. Remove the 2 Phillips-head screws
that attach the diverter motor and clip
to the dispenser tank. Place the
motor and clip aside.
4. Mark the positions of the 3 bulk
dispenser hoses connected to the
dispenser.
5. Remove the water inlet, tub vent,
and bulk dispenser inlet hoses from
the dispenser:
Note: The water inlet, tub vent, and bulk
dispenser inlet hoses are difficult to
remove.
a) Squeeze each clamp and slide it back.
b) Carefully break each hose loose by
inserting a small fl at blade screwdriver
under the hose to break the seal.
c) Remove the hoses.
