39

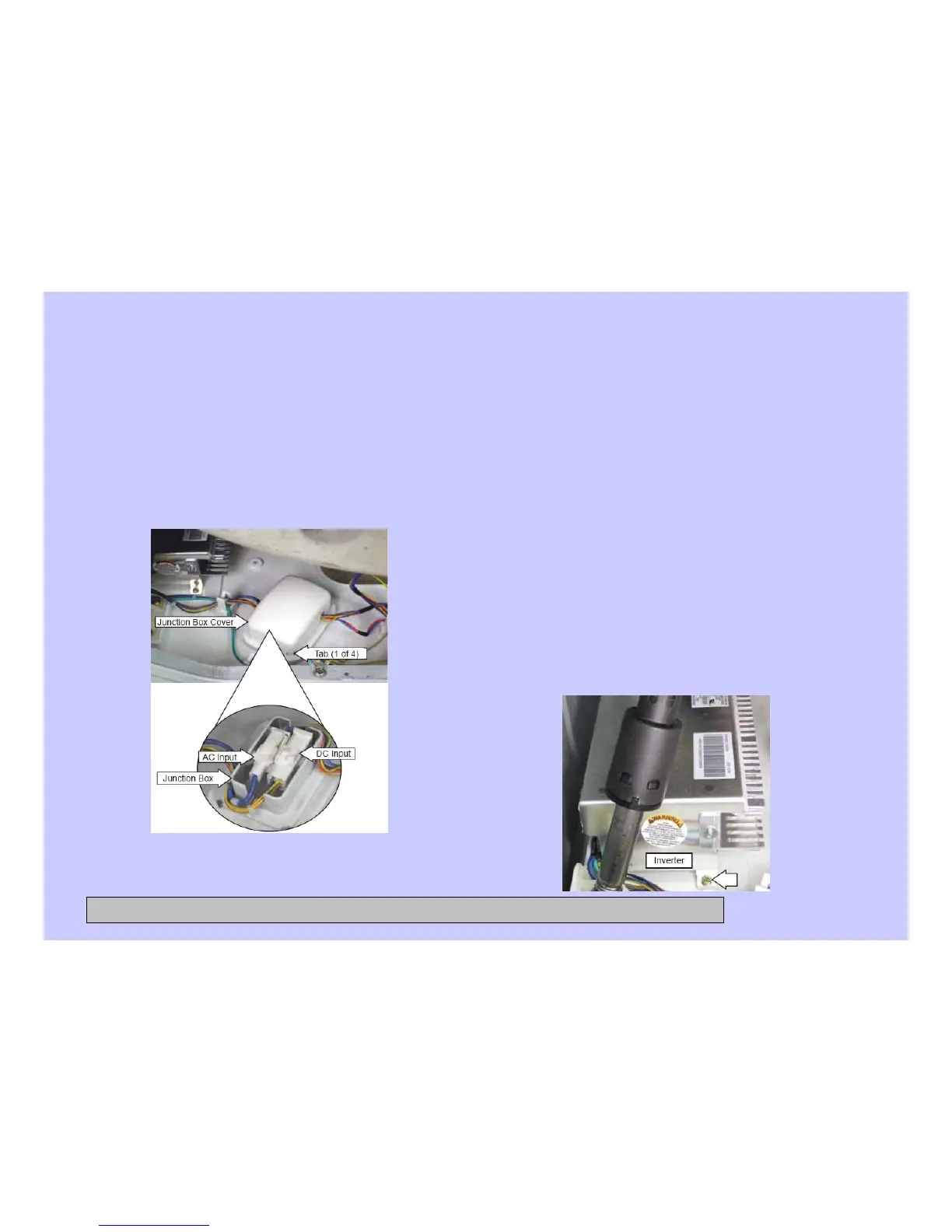

Remove the inverter
1. Remove the service panel. (See
Service Panel.)
2. Press the 4 tabs inward and remove the
junction box cover.
3. Disconnect the AC and DC input wire
harnesses contained in the junction box.
5. Press the lock tab and remove the
motor ground wire.
6. Remove the plastic wire tie that holds
the motor wiring in place.
7. Remove the single Phillips-head screw
that holds the right front leg of the
inverter to the base pan.
8. Slide the inverter rearward to clear the
guides that hold the rear of the inverter
to the chassis.
9. Remove the inverter through the
enlarged opening on the left side of the
front frame.
4. Disconnect the motor wire harness
CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE. September 2008
