Installation
Lifting and positioning the pole
GE Information L31- 7606EN/04
4/4
03- 2017
Positioning the pole
Process

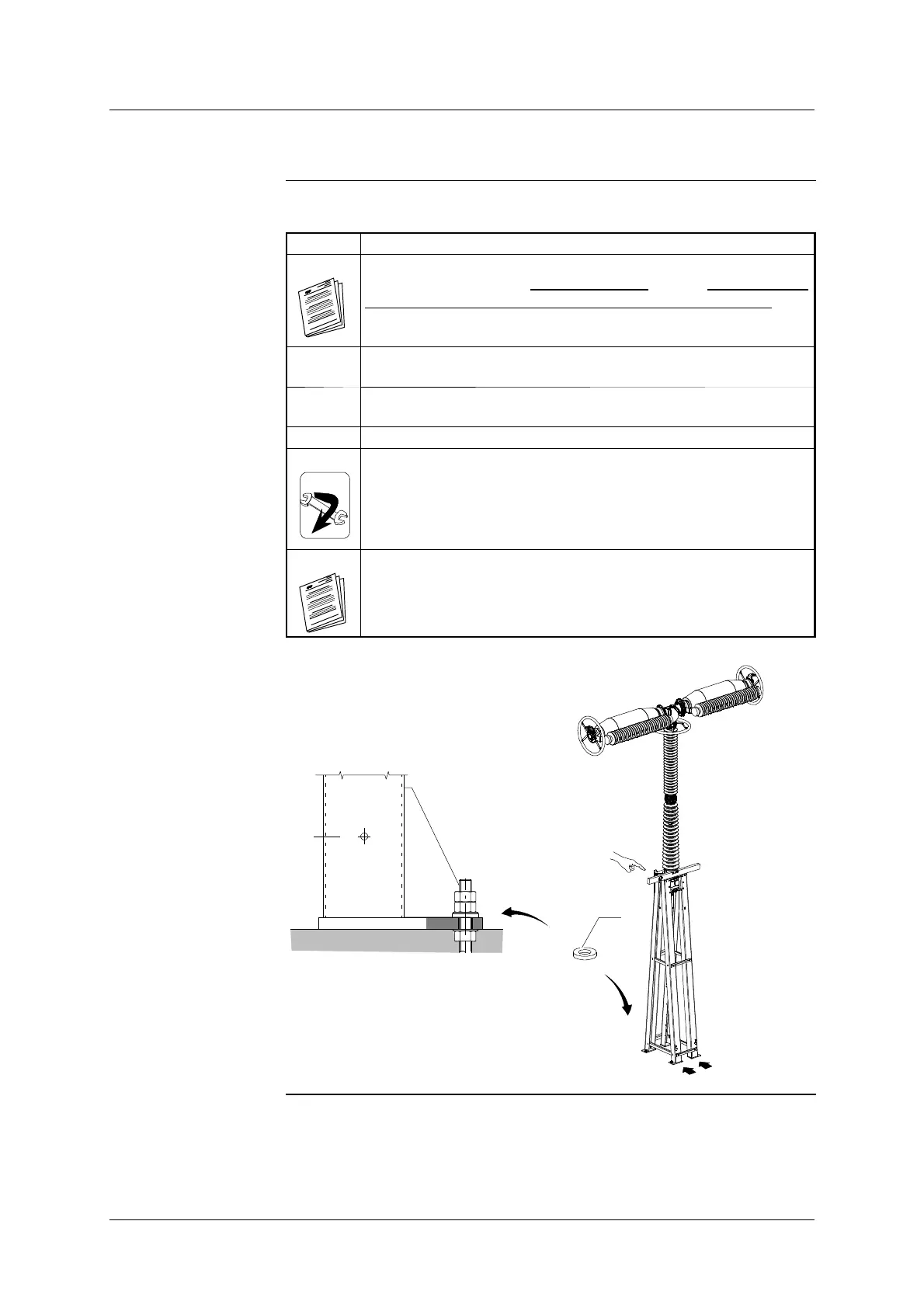

The table below gives the steps of positioning the pole :
Step Action
1 Use a lifting device to position the chassis frame onto its ground
attachment points but do not secure it
, whilst respecting the
orientation of the pole indicated on the sketch of the device
.
2 If necessary, place shims under the supports of the frame so that
the upper plate is level.
3 Install the washers (12) and clamp the whole to the ground using
nut.
4 Remove the lifting straps.
5
18 daN.m
Check the tightening torques of all frame screws.
6 T ighten the fixings on the two floor seatings in accordance with the
module entitled ’Tightening Torques’ and in accordance with the
diameters of the anchoring points.
12
