Installation
Installation of operating device
GE Information L31- 7902EN/02
5/12
11- 2016
Preparing the pole operating shaft, continued
“Manual opening”
operation, continued

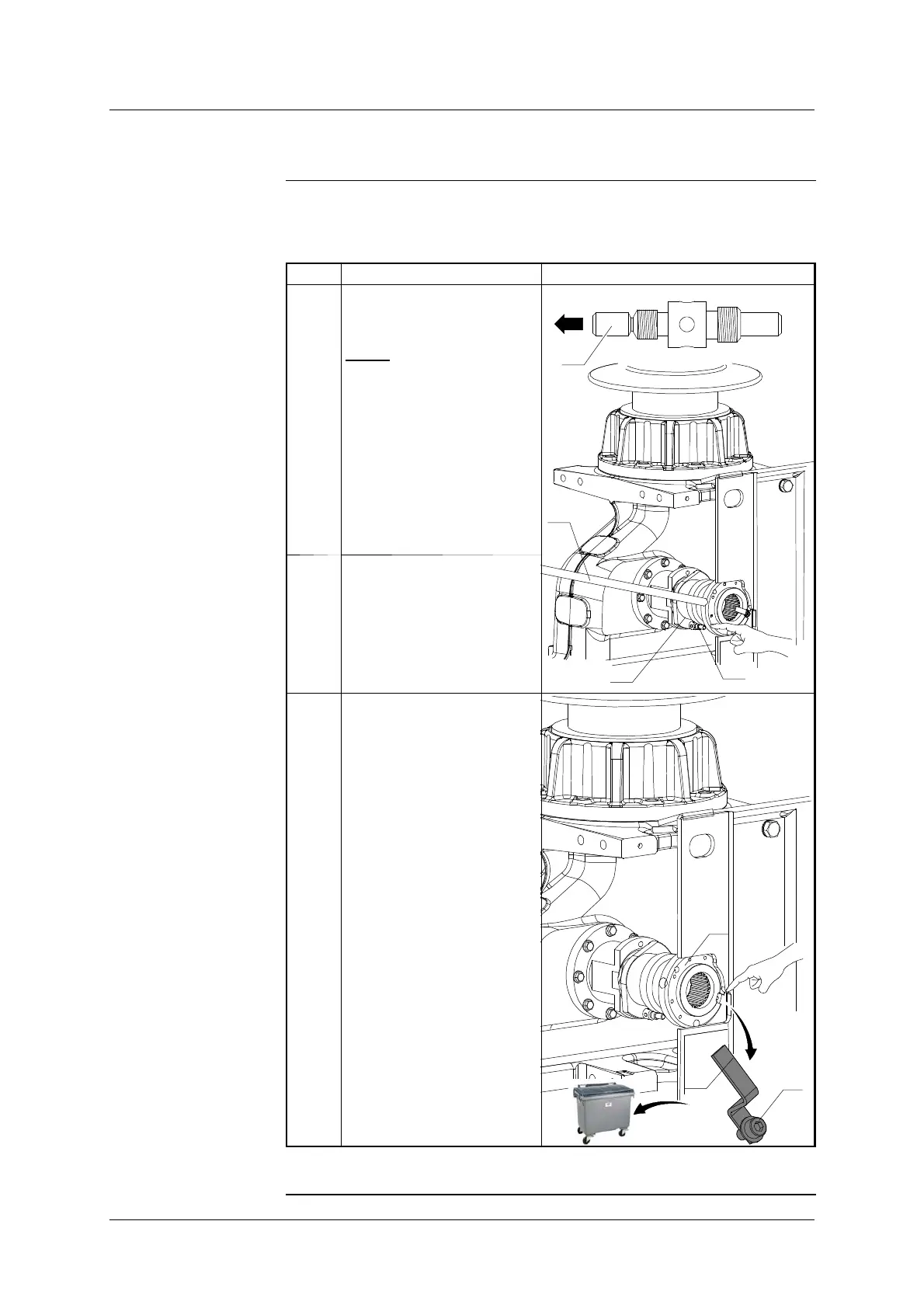

The table below gives the steps of “manual opening” operation :
Step Action Diagram
3 Put back the blocking tool
(4) on the flange of the
sleeve (12).
NOTE
: This tool ensure
the angular positioning of
pole operating shaft dur-
ing the coupling with the
operating mechanism.
6
4
12
4
M10
4 Remove the lever (6).
5 Remove the safety plate (5)
and the screws from the
flange on the front of the
handle sleeve (12).
12
5
8
