Installation
Installation of operating device
GE Information L31- 7902EN/02
6/12
11- 2016
Coupling the operating device
Necessary
components

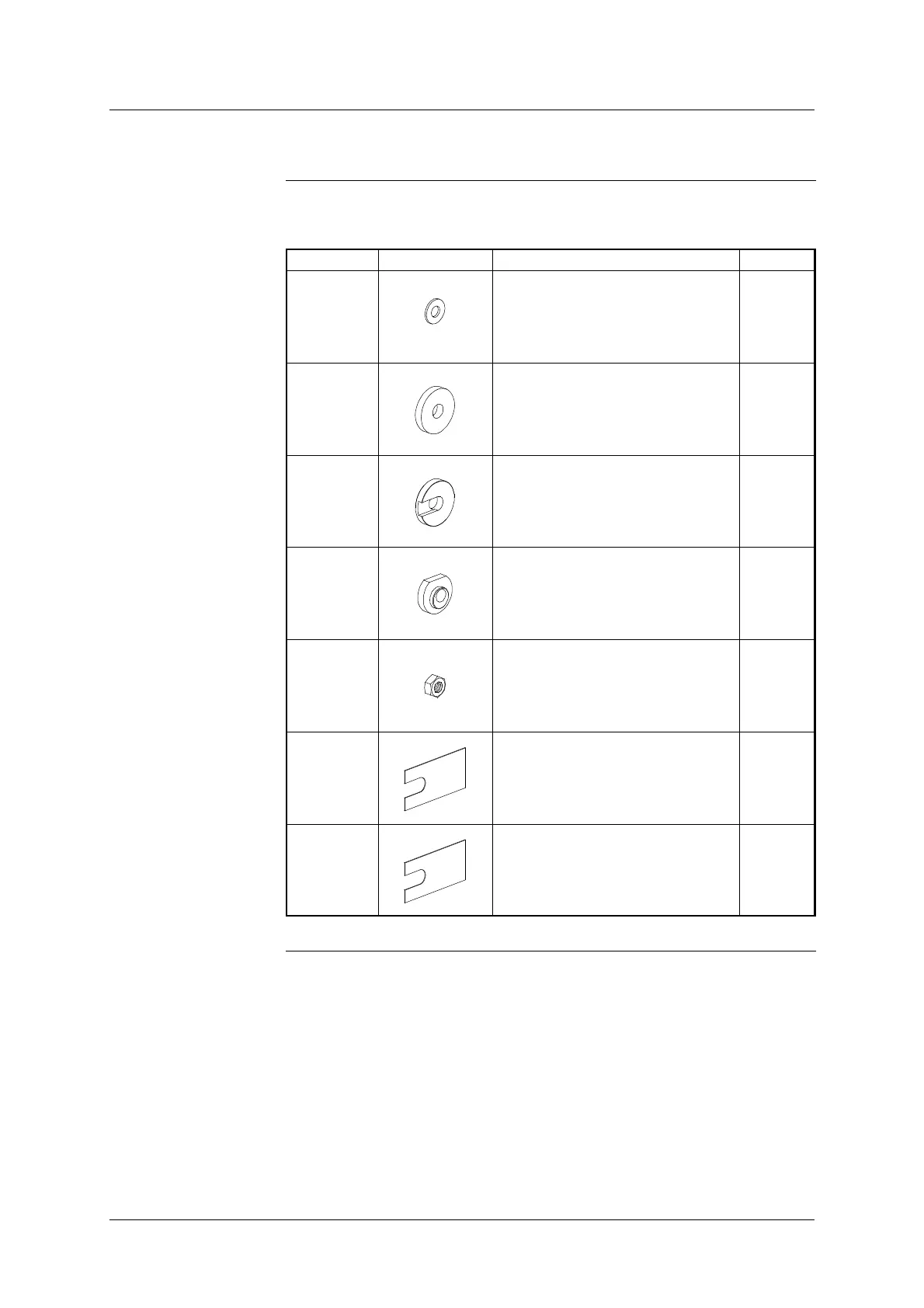

List of the Grid Solutions components necessary for the operation :
Mark Diagram Designation Number
(10)
W asher
M20
4
(22) Spacer 1
(26) Spacer 1
(23) Eccentric spacer 2
(14)
Nut
HM20
4
(24) Wedge (thickness 1 mm) 1
(25) W edge (thickness 0,5 mm) 2
