Installation
Installation of operating device
GE Information L31- 7902EN/02
9/12
11- 2016
Fastening th e operating device, continued
Wedging
and tightening

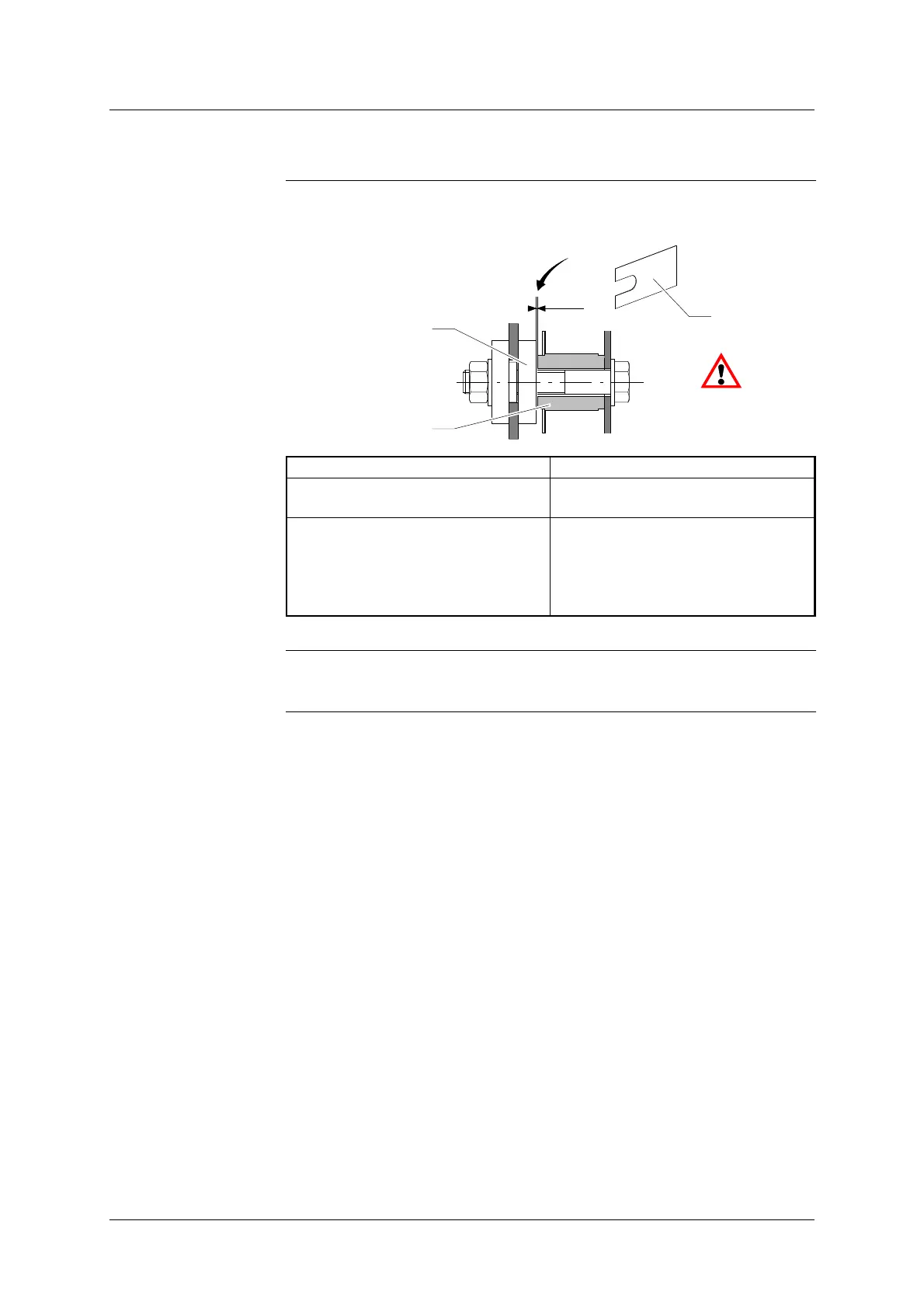

The table below gives the wedging procedure for the fastening screws
depending to the X play :
X
22
20
Important
35 daN.m
24
25
If the X play is ... Action
X 1mm
Tighten to the indicated tightening
torque.
X 1mm
D Wedge between the spacer (22)
and the operating device (20) with the
provided wedges (24)- (25).
D Tighten the screw to the
indicated tightening torque.
Lifting strap
Remove the lifting strap.
