Installation
Coupling of column and chambers
GE Information L31- 7138EN/02
12/16
11- 2016
Final coupling, continued
Fitting the
coupling pin

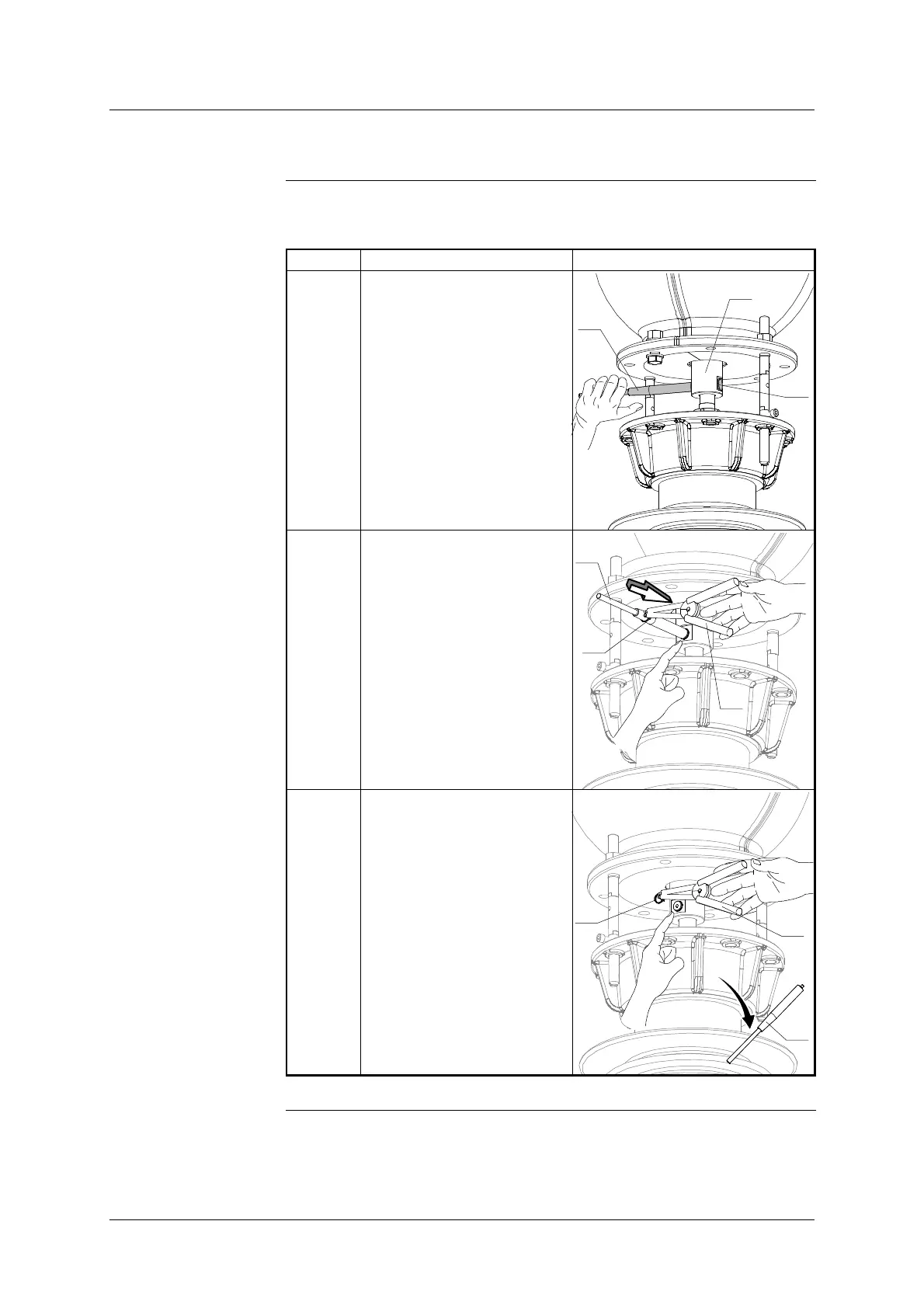

The table below shows the steps for connecting the chambers to the column:
Step Action Illustration
5 Fit the coupling pin (24) by
manually pulling on the fitting
tool (34) until it stops on the
cylinder (8).
24
8
35
6 Fit the circlips (25), sliding
them along the fitting tool (35)
using circlips pliers (37).
See the second method (7).
25
35
37
7 Remove the fitting tool (35)
from the coupling pin, loosen-
ing it by hand.
Second method:
Fit circlips (25) using circlip
pliers (37).
25
37
35
