Installation
Supporting frame assembly
GE Information L31- 139EN/03
5/10
01- 2017

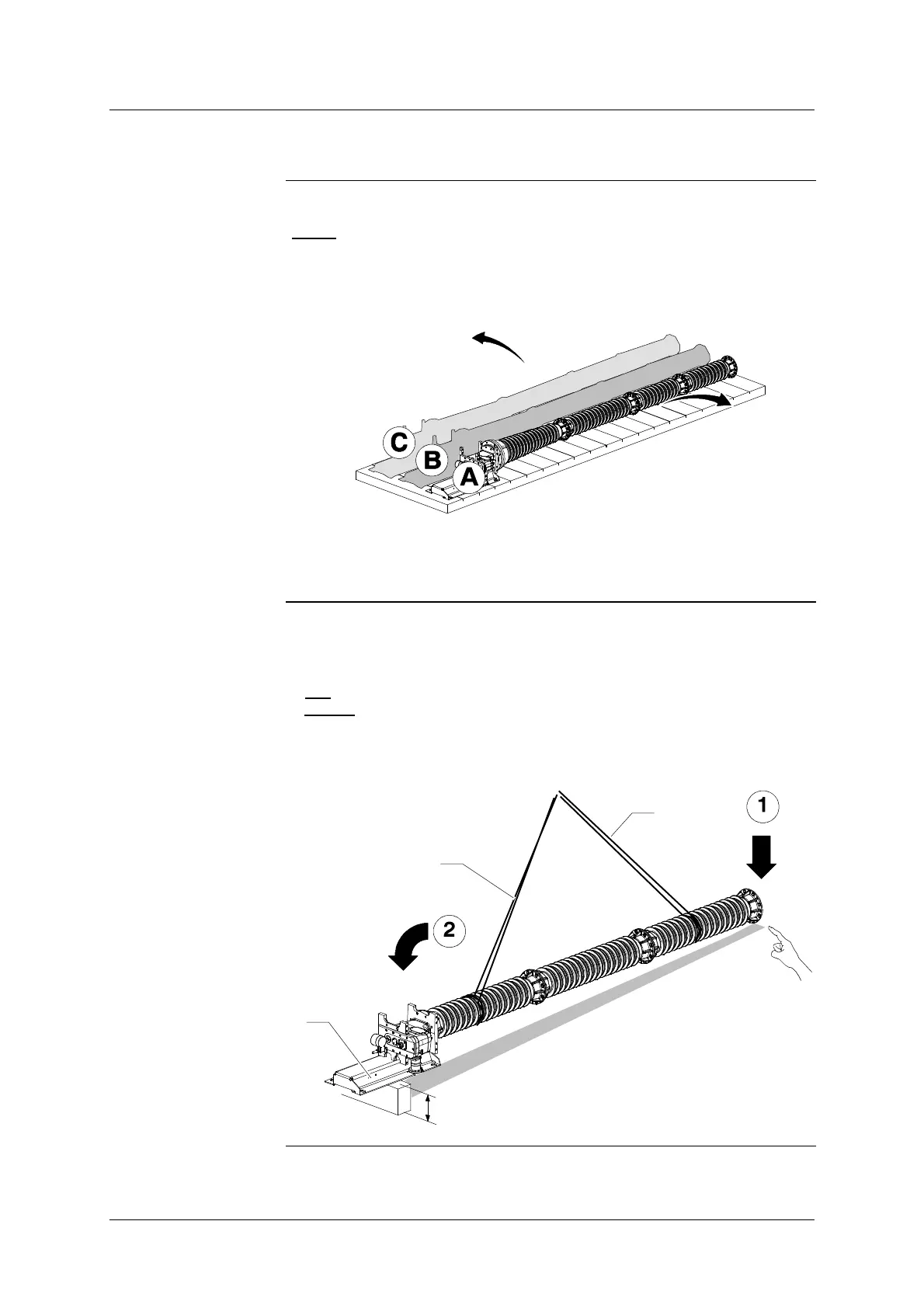

Preparing t he co lu mn
Dismantling the case
of the poles
Remove the side panels of the case.
NOTE
: The extraction of the columns will be in the order A, B and
C.
Preparing the pole
● Sling the “A” column with the aid of two flexible lifting straps (1).
● Extract the column from the case and put it down on the case wood cover
laying:
-first
, the end of the column,
- second
, the support of the operating mechanism (4) on a wedge to ensure
the correct installing of the frame supports.
X
minimumminimum
= 260 mm
X
1
4
1
