GE SF6 User Manual

Installation
Supporting frame assembly
GE Information L31- 139EN/03
6/10
01- 2017
Frame- support assembly
Process

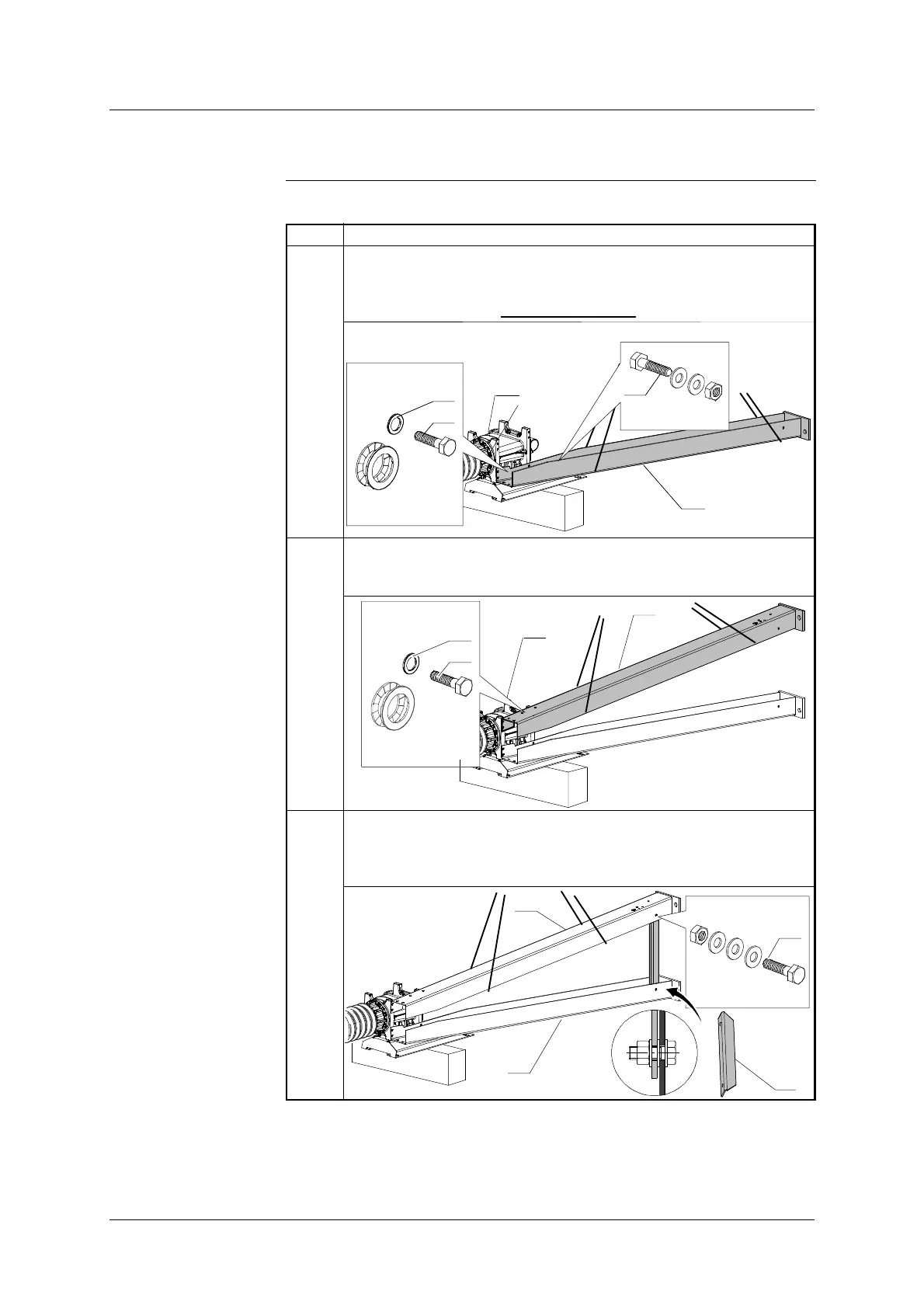

The table below gives the steps of installing the supports of the frame:
Step Action
1
With the aid of two flexible lifting straps, position the frame- support
(2) onto the housing (10) and fasten it with the use of the screws (7)
and NORDLOCK washers (9). Do not tighten the screws (7).
- Install the screw (5) only on this support
.
2
10
2x2
H M16- 35
7
9
x1
H M16- 45
5
2
With the aid of two flexible lifting straps, position the frame- support
(3) onto the housing (10) and fasten it with the use of the screws (7)
and NORDLOCK washers (9). Do not tighten the screws (7).
3
10
2x2
H M16- 35
7
9
3
Install the strengthening piece (22) inside the frame- support (3) with
the use of the screws (20). Adjust the distance between the support
and fasten the strengthening piece on the frame- support (2). Do not
tighten the screws (20).
3
2
22
x2
H M16- 45
20
Continued on next page.
