GE SF6 User Manual

Installation
Supporting frame assembly
GE Information L31- 139EN/03
7/10
01- 2017
Frame- support assembly, continued
Process, continued

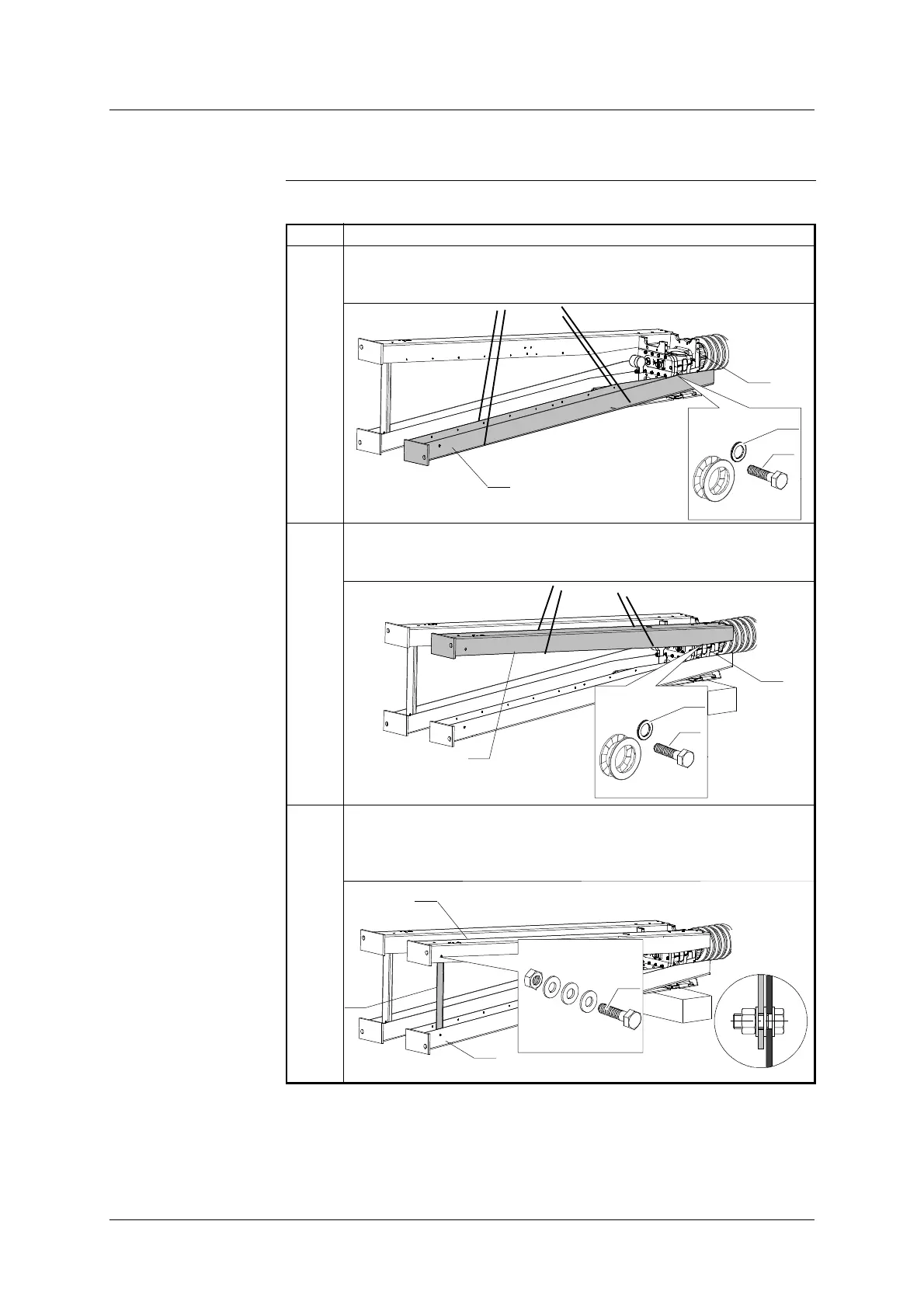

The table below gives the steps of installing the supports of the frame:
Step Action
4
With the aid of two flexible lifting straps, position the frame- support
(3) onto the housing (10) and fasten it with the use of the screws (7)
and NORDLOCK washers (9). Do not tighten the screws (7).
10
2x2
H M16- 35
7
9
3
5
With the aid of two flexible lifting straps, position the frame- support
(2) onto the housing (10) and fasten it with the use of the screws (7)
and NORDLOCK washers (9). Do not tighten the screws (7).
2x2
H M16- 35
7
9
10
2
6
Install the strengthening piece (22) inside the frame- support (3) with
the use of the screws (20). Adjust the distance between the support
and fasten the strengthening piece on the frame- support (2). Do not
tighten the screws (20).
2
22
3
x2
H M16- 45
20
Continued on next page.
