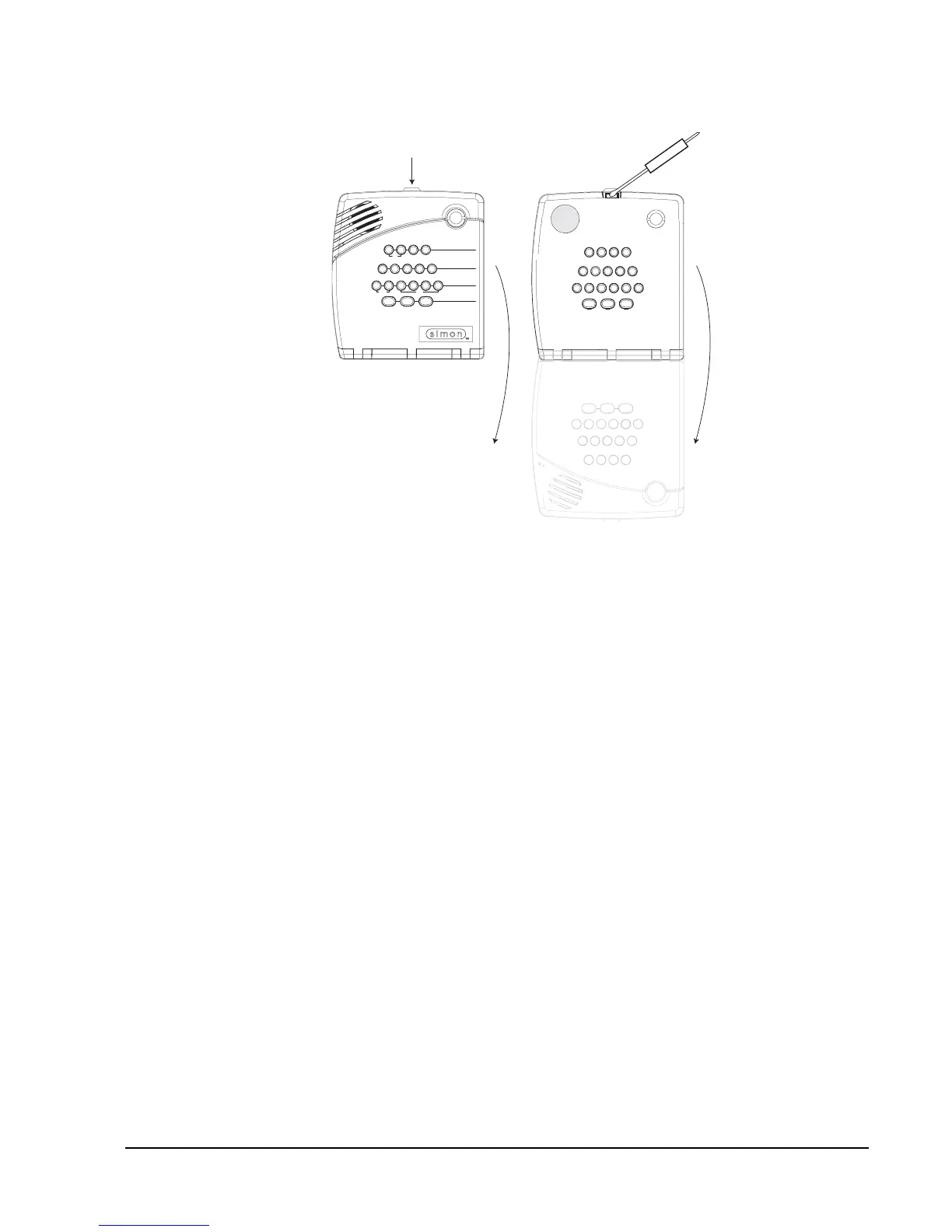

Figure 2. Opening the Panel Cover and Chassis
Mounting the Panel
The panel can be mounted on a wall or on the optional Tabletop Base.
1. Choose a panel location.
2. Run all necessary power, phone, siren, and hardwire contact wires to the desired
panel location.
Note
When choosing the AC out-
let location for the AC power
transformer, make sure the
outlet is not controlled by a
switch or that it is not part of
a ground fault interrupt cir-
cuit (GFIC).
3. Refer to Figure 3 for mounting hole locations.
For wall mounting, hold the panel against the wall and mark the mounting hole
locations with a pencil. For Tabletop Base mounting, place the panel back on the
base until the top and bottom mounting holes line up with the mounting posts on
the base.
T e s t W e e k l y
C O D E
S t a t u s
S y s t e m
9 / 0
W i n d o w s
D o o r s &
S e n s o r s
M o t i o n
D i s a r m
5 / 6
A r m
3 / 4 7 / 8
O n O f f
A U X
S e n s o r
M o t i o n T i m e
F I R E P O L I C E
L i g h t s
S p e c i a l
H O M E C O N T R O L
E M E R G E N C Y
H O M E S E C U R I T Y
D o o r s
C h i m e
1 / 2
Press tab with thumb,
then swing cover down.
Press tab up with
screwdriver, then
swing chassis
down.
