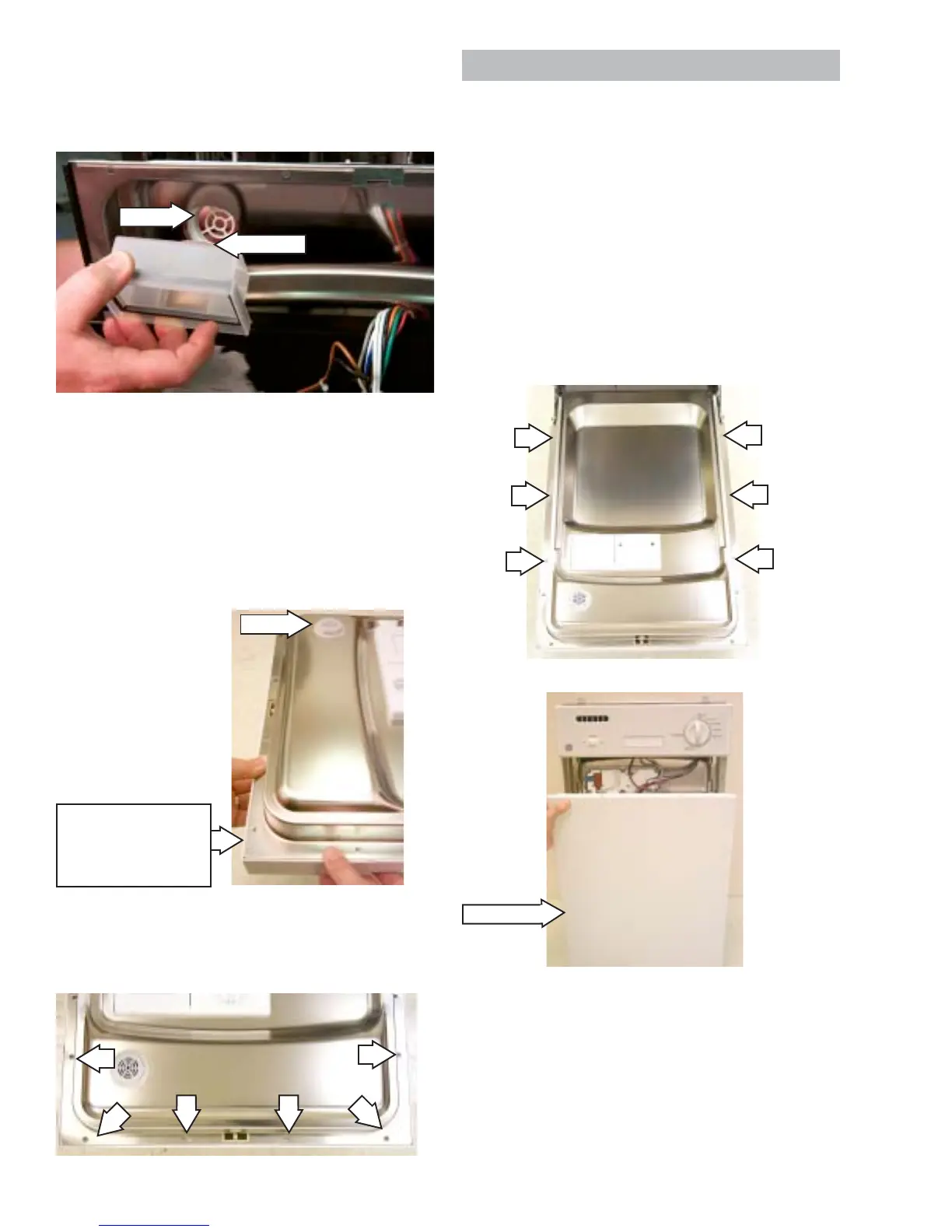

– 14 –
Door Panel
2. Install the static vent cover to the static vent
channel and position the control panel cover
on the dishwasher door.
Note: Make sure the edge of the control panel
cover is flush with the edge of the door.
3. Align the screw holes on the control panel with
the screw holes on the dishwasher door.
Installation
1. Insert the static vent channel through the
static vent door hole.
Hole
Channel
4. Install the 6 screws that connect the control
panel cover to the dishwasher door.
Cover
Make sure the edge
of the control panel
is flush with the edge
of the door.
Door Panel
The door panel covers the door to the dishwasher
and protects the detergent/rinse module
electronics.
Removal
1. Disconnect power.
2. Open the dishwasher door.
3. Remove the 6 screws and the door panel
from the door assembly. Do not remove the 6
screws that hold the control panel cover to the
door assembly.
To Next Page
