– 15 –
This action moves the cover catch (2) and
releases the detergent cover.
When deactivated (3), the lever resets to rest
under the notch in the center of the connecting
rod.
When activated for the second time in a cycle, the
lever lifts the connecting rod by the notch, lifting
the rinse dispenser plunger (4) and releasing the
rinse agent. When deactivated, the lever returns
to its original starting position.
Removal and Replacement
1. Disconnect power.
2. Remove the Door Panel.
3. Remove the foam insulation.
Cover

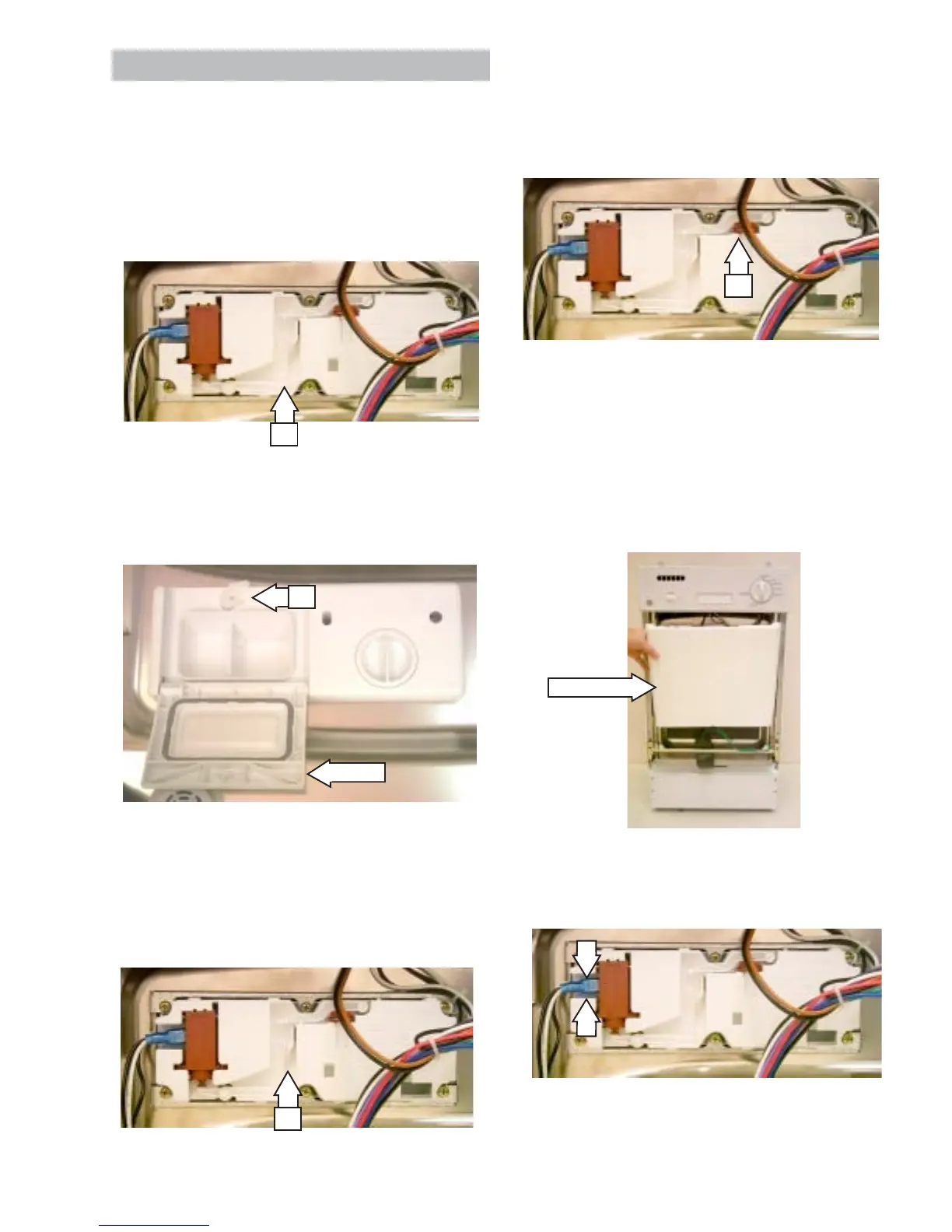

Detergent/Rinse Module
The detergent rinse module automatically
dispenses both the detergent and the rinse agent
at the appropriate times. The module is activated
twice during a wash cycle.
The first time the module is activated (1), the lever
slides up the right-hand path of the connecting
rod.
1
4
3
2
Insulation
4. Disconnect the 2 terminals from the
detergent/rinse module.
(Continued next page)
