– 18 –

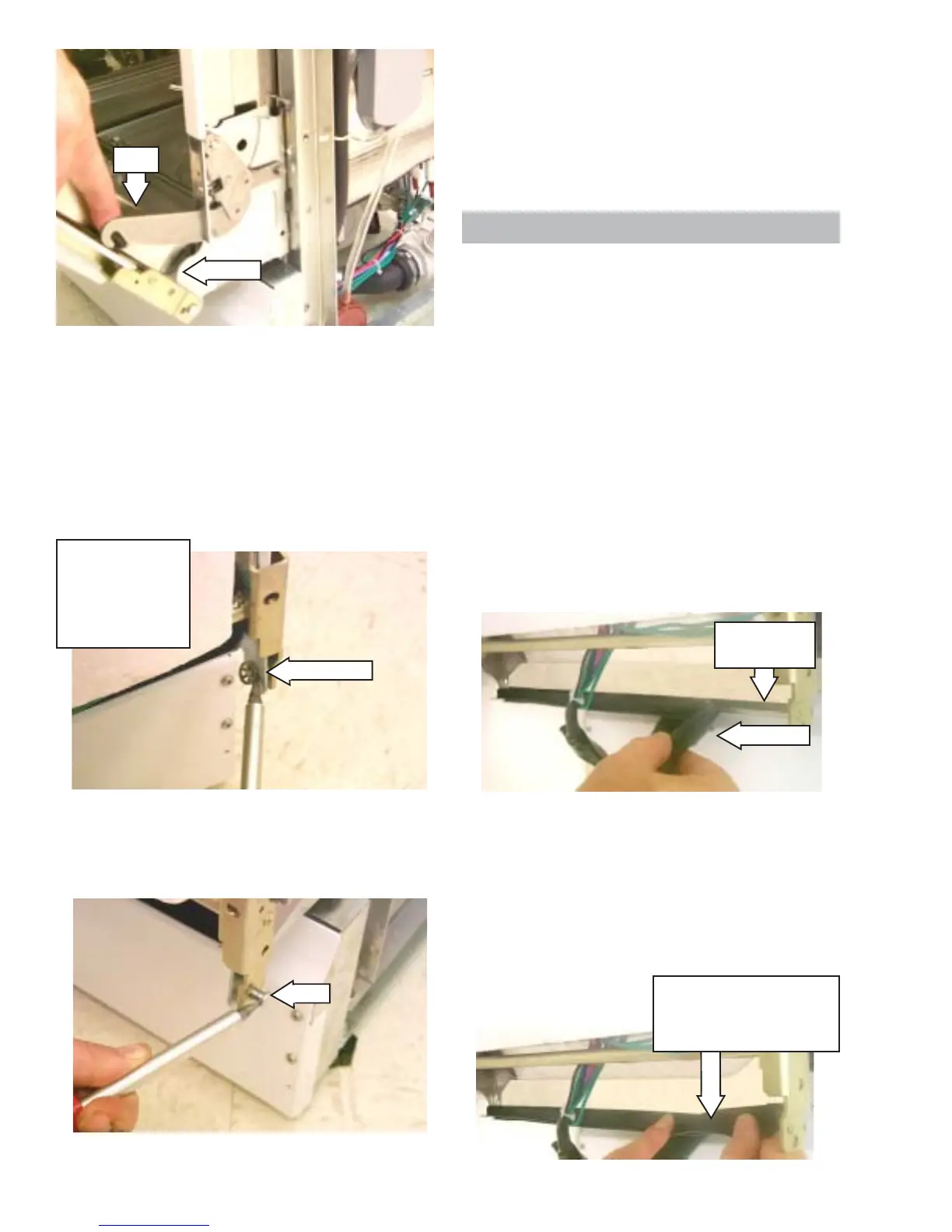

18. Close the dishwasher door.
Caution: The star washer is easily damaged
during removal and should not be reused. Order
a new set of star washers (part number:
WD01X10254).
19. Remove the star washer from the
dishwasher door hinge.
Hinge
Caution: The
star washer is
easily damaged
and should not
be reused.
21. Repeat steps 3 through 10 to remove the left-
side door hinge assembly.
22. Remove the dishwasher door from the
dishwasher.
23. Reverse the above procedure to install.
20. Remove the hinge pin from the dishwasher
door hinge.
Pin
Tub Seal
4. Reverse the above procedure to install.
Note: When installing the door, seal make sure it
is seated properly in the pinched metal groove.
Run your finger over the groove to make sure it is
smooth and even for a proper seal.
Bottom Door Seal
The bottom door seal prevents water leakage.
The seal is fitted in a pinched metal groove at the
bottom of the dishwasher door.
Removal and Replacement
1. Remove the Door Panel.
2. Remove the Door Assembly (steps 13
through 22 only).
3. Grab one end of the bottom door seal and peal
it away from the pinched metal groove.
Warning: The pinched metal groove is sharp.
Wear Kevlar gloves when removing or installing
the door seal. Failure to comply may result in
personal injury.
Pinched Metal
Groove
Hook
Star Washer
Make sure the seal is
properly seated in the
pinched metal groove.
To Next Page
