– 16 –
9. Remove the Door Panel.
10. Disconnect the 2 terminal lugs from the
Detergent/Rinse Module switch.

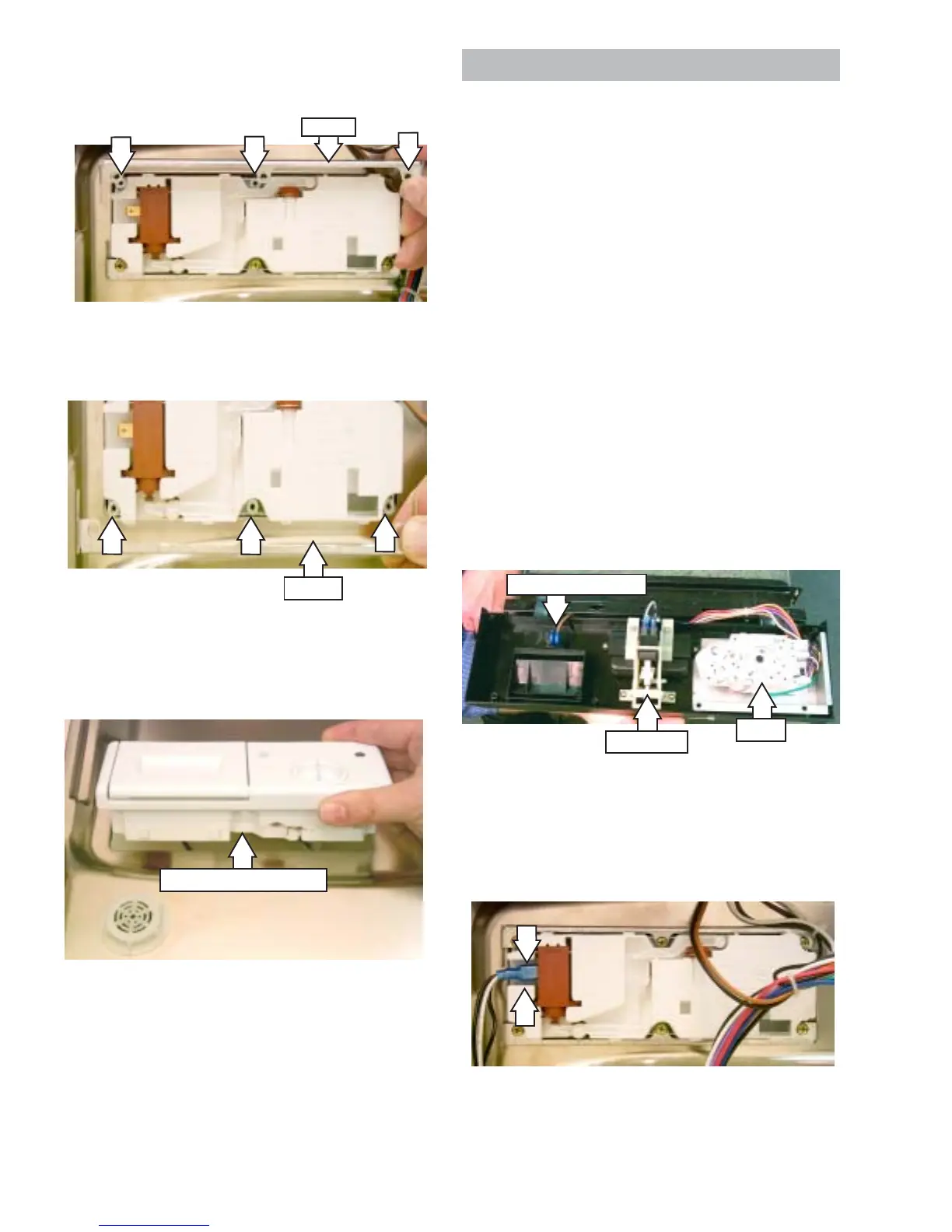

5. Remove the 3 screws and top mounting
bracket.
6. Remove the 3 screws and bottom mounting
bracket.
7. Remove the detergent/rinse module from door
assembly.
Door Assembly
Removal and Replacement
1. Disconnect power.
2. Remove the 6 screws that connect the control
panel cover to the dishwasher door. (See
Timer, step 6.)
3. Close the dishwasher door.
4. Release the door latch and allow the control
panel cover to hang against the dishwasher
door.
5. Disconnect the ground wire from the Timer.
6. Disconnect the green and white multi-pin
connectors from the Timer.
7. Disconnect the 4 terminal lugs from the Door
Switch and Latch Assembly.
8. Disconnect the 2 terminal lugs from the
Heated Dry Switch.
Detergent/Rinse Module
Timer
Door Latch
Heated Dry Switch
Bracket
Bracket
To Next Page
