To clean the air outlet filter:
1. Slide up and remove the metallic hood on the right-hand side of the product as
shown in Figure 8—2 to reveal the black fan / filter assembly. Note: Use a rubber
mallet to assist with removing the hood.
2. If a cable-tie is fitted to the filter holder, first carefully remove it. Remove the filter
holder by pulling off the black snap-off cover to the filter.
3. If the filter mat is just dusty, clean it with dry compressed air or by beating it
against a hard clean surface.
4. If the filter mat is oily, clean it with mild detergent and water, and then dry it
thoroughly.
5. Replace the filter mat and snap the cover back in place. Note: The cable tie only secures
the filter holder during shipping so there is no requirement to replace.
6. Replace the metallic hood over the filter assembly and re-energise the product.

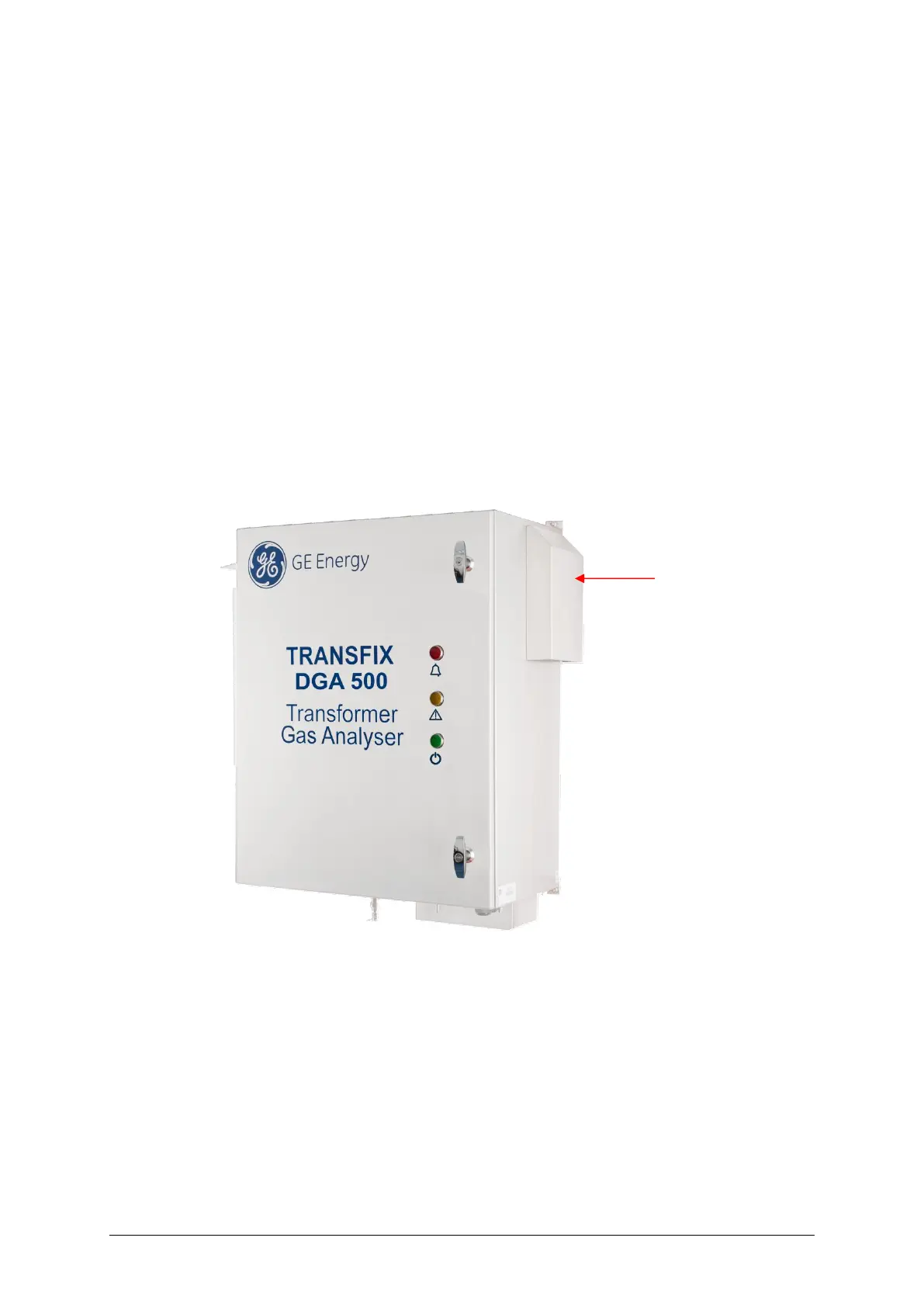

Figure 8—2: Product showing side hood
Hood

GE TRANSFIX DGA 500 Specifications

General

Display Type	LCD
Touchscreen	Yes
Power Supply (VAC)	100 - 240 VAC
Monitored Gases	Hydrogen (H2), Methane (CH4), Acetylene (C2H2), Ethylene (C2H4), Ethane (C2H6), Carbon Monoxide (CO), Carbon Dioxide (CO2)
Data Interface	Ethernet
Power Supply (VDC)	24 VDC
