GE UNC15NP - Drain Pump Kit UPK4 Accessory Installation

20 49-1000610 Rev. 2
Installation Instructions
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT – Save these
instructions for local inspector’s use.
• IMPORTANT – Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these
instructions for future reference.
• Skill level±,QVWDOODWLRQRIWKLVDSSOLDQFHUHTXLUHV
basic mechanical skills.
• Proper installation is the responsibility of installer.
• Product failure due to improper installation is not
covered under the Warranty.
Drain Pump Kit UPK4 Accessory Installation
WHAT YOU WILL NEED:
´RSHQER[ZUHQFKRUDGMXVWDEOHZUHQFK
'ULOOZLWKSKLOOLSVKHDGELWRU3KLOOLSVVFUHZGULYHU
Slip joint pliers
Side cutting pliers
NOTE: This pump can be installed in a cube ice machine
or a nugget ice machine.
1
3
2
4
5
7
8
9
6

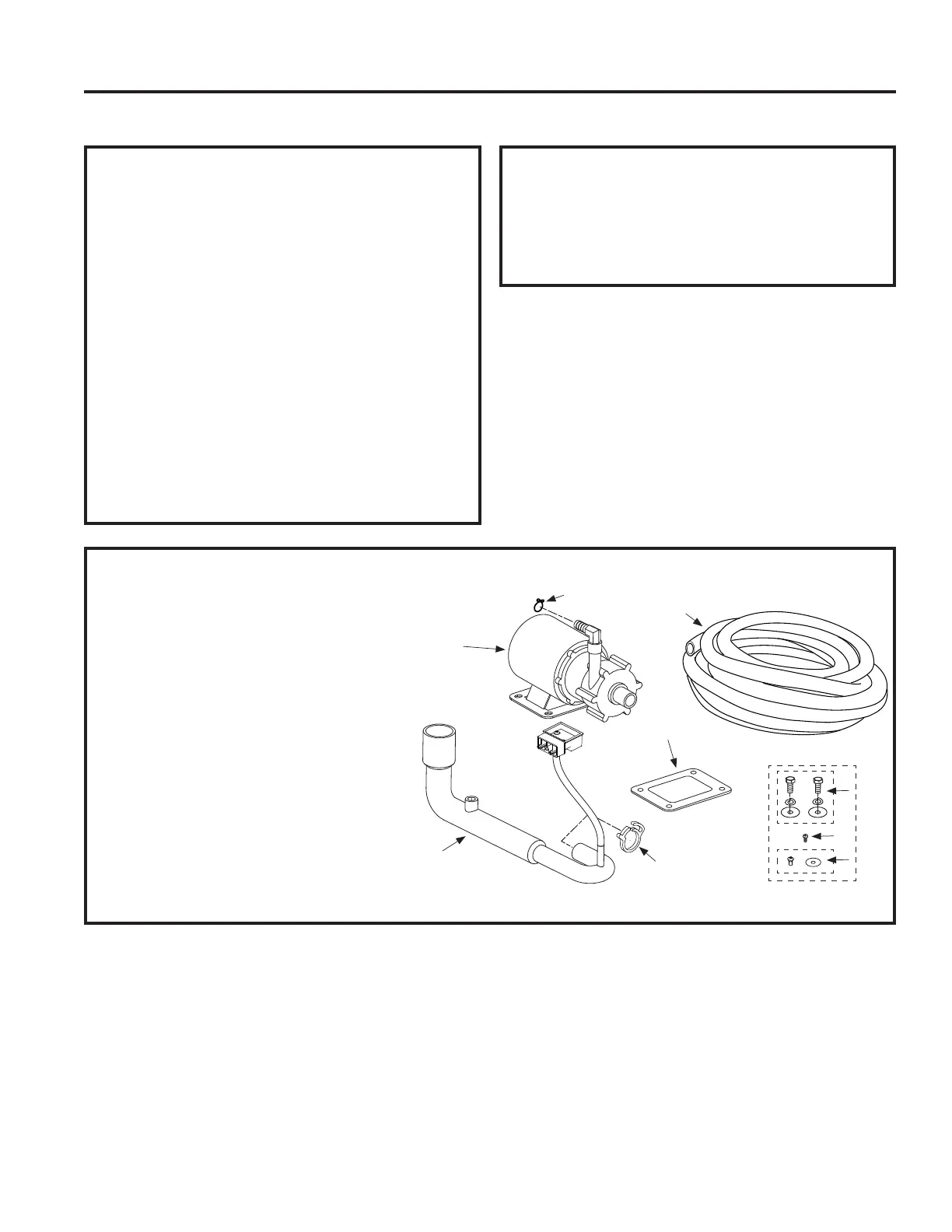

KIT CONTENTS:
'UDLQ3XPS&KHFN9DOYH$VVHPEO\
39&'UDLQ3LSH3UHVVXUH6HQVRU
Assembly (1)
3 - Rubber Pad (For Pump Mounting) (1)
'LVFKDUJH7XELQJ&OHDU
0HWDO&ODPS)RU'LVFKDUJH7XELQJ
6 - Plastic Snap Ring (1)
7 - Pump Fixing Bolts (2);
Spring Washer (2); Flat Washer (2)
8 - Pressure Sensor Case Screw (ST/4*12)
(1)
9 - Ground Screw With Washer (M/4*8) (1);
Lock Washer(1)
