3-4 T60 Transformer Protection System GE Multilin
3.1 DESCRIPTION 3 HARDWARE
3

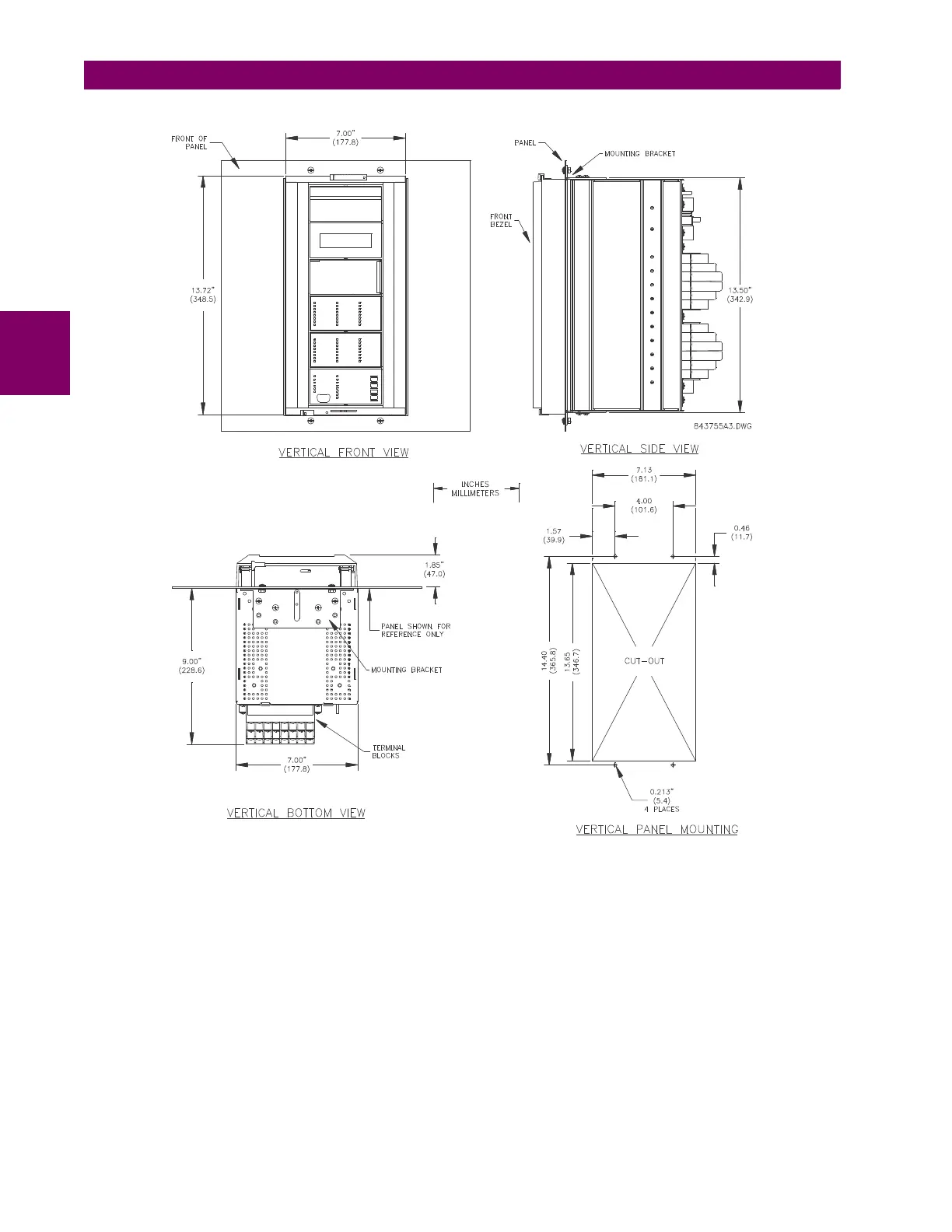

Figure 3–5: T60 VERTICAL MOUNTING AND DIMENSIONS (STANDARD PANEL)
For side mounting T60 devices with the enhanced front panel, see the following documents available on the UR DVD and
the GE Digital Energy website:
• GEK-113180: UR-Series UR-V Side-Mounting Front Panel Assembly Instructions
• GEK-113181: Connecting a Remote UR-V Enhanced Front Panel to a Vertical UR Device Instruction Sheet
• GEK-113182: Connecting a Remote UR-V Enhanced Front Panel to a Vertically-Mounted Horizontal UR Device
Instruction Sheet
For side mounting T60 devices with the standard front panel, use the following figures.
