3.2 WIRING 3 HARDWARE
3
3.2.8 RS232 FACEPLATE PORT
A 9-pin RS232C serial port is located on the T60 faceplate for programming with a personal computer. All that is required to
use this interface is a personal computer running the EnerVista UR Setup software provided with the relay. Cabling for the
RS232 port is shown in the following figure for both 9-pin and 25-pin connectors.
The baud rate for this port is fixed at 19200 bps.

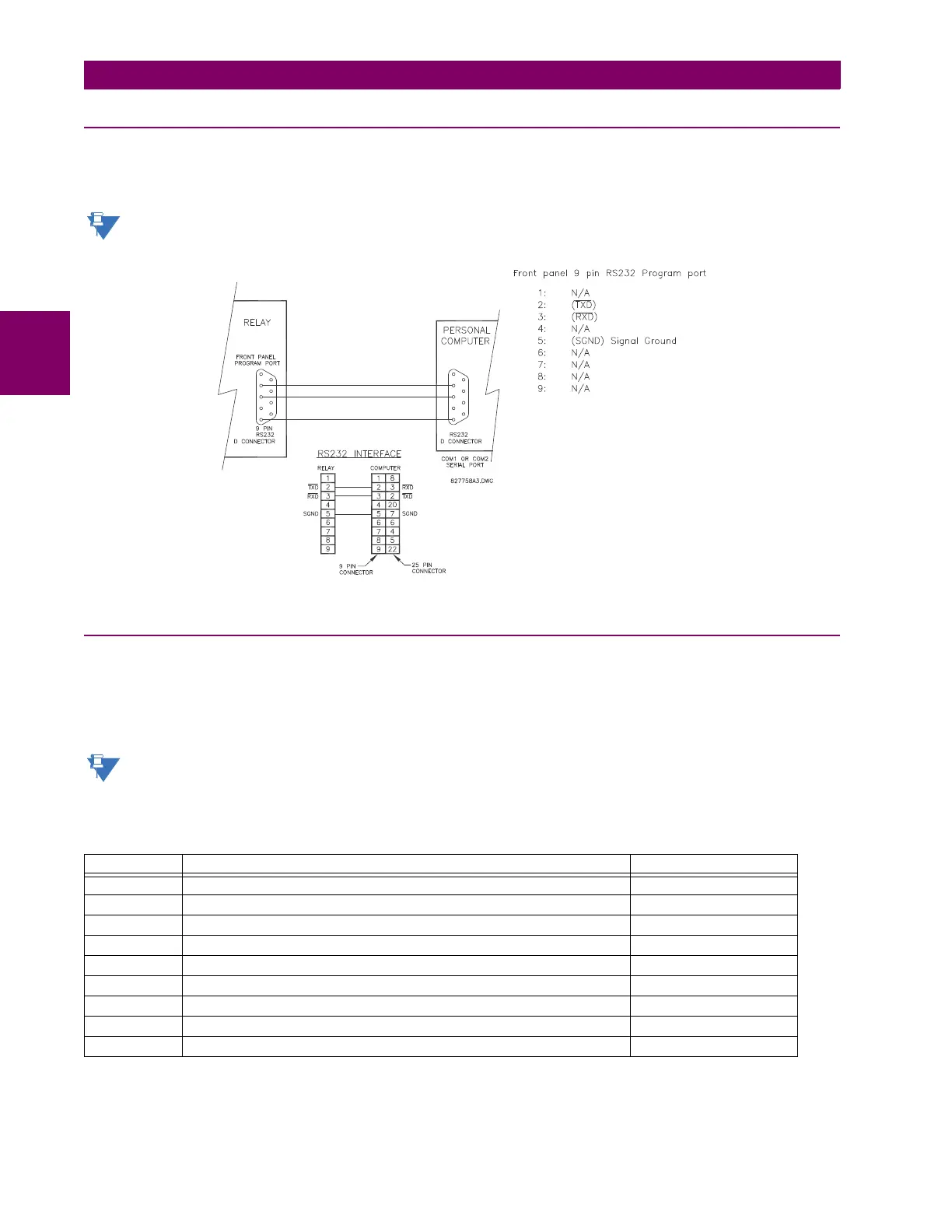

Figure 3–24: RS232 FACEPLATE PORT CONNECTION
3.2.9 CPU COMMUNICATION PORTS
a) OVERVIEW
In addition to the faceplate RS232 port, the T60 provides two additional communication ports or a managed six-port Ether-
net switch, depending on the installed CPU module. In the following table, multiple Ethernet ports are supported, but only
one can be used at a time. For example, the 10Base-F (normal) port and 10Base-T (alternate) port are supported in the 9G
module, but only one can be used at a time.
The CPU modules do not require a surge ground connection.
Table 3–3: CPU MODULE COMMUNICATIONS (MODULE APPLICABLE DEPENDS ON ORDER CODE)
CPU TYPE COM1 COM2
9E RS485 RS485
9G 10Base-F or 10Base-T (obsolete) RS485
9H Redundant 10Base-F or 10Base-T (obsolete) RS485
9J 100Base-FX or 10/100Base-T RS485
9K Redundant 100Base-FX or 10/100Base-T RS485
9L 100Base-FX (obsolete) RS485
9M Redundant 100Base-FX (obsolete) RS485
9N 10/100Base-T RS485
9S Six-port managed Ethernet switch RS485
