Functional checks
Vivid E80/E90/E95
–
Service Manual
4-9
GC091052
Rev. 3
Functional checks
2D Mode (B mode) checks
Introduction
The 2D Mode
is the Ultr
asound syst
em’s default mode.
Prep
arations
1.
Connect one of
the probes.
2.
T
urn ON the Vivid E80
/E90/E95.
The 2D Mo
de window
is displayed
(default m
ode).

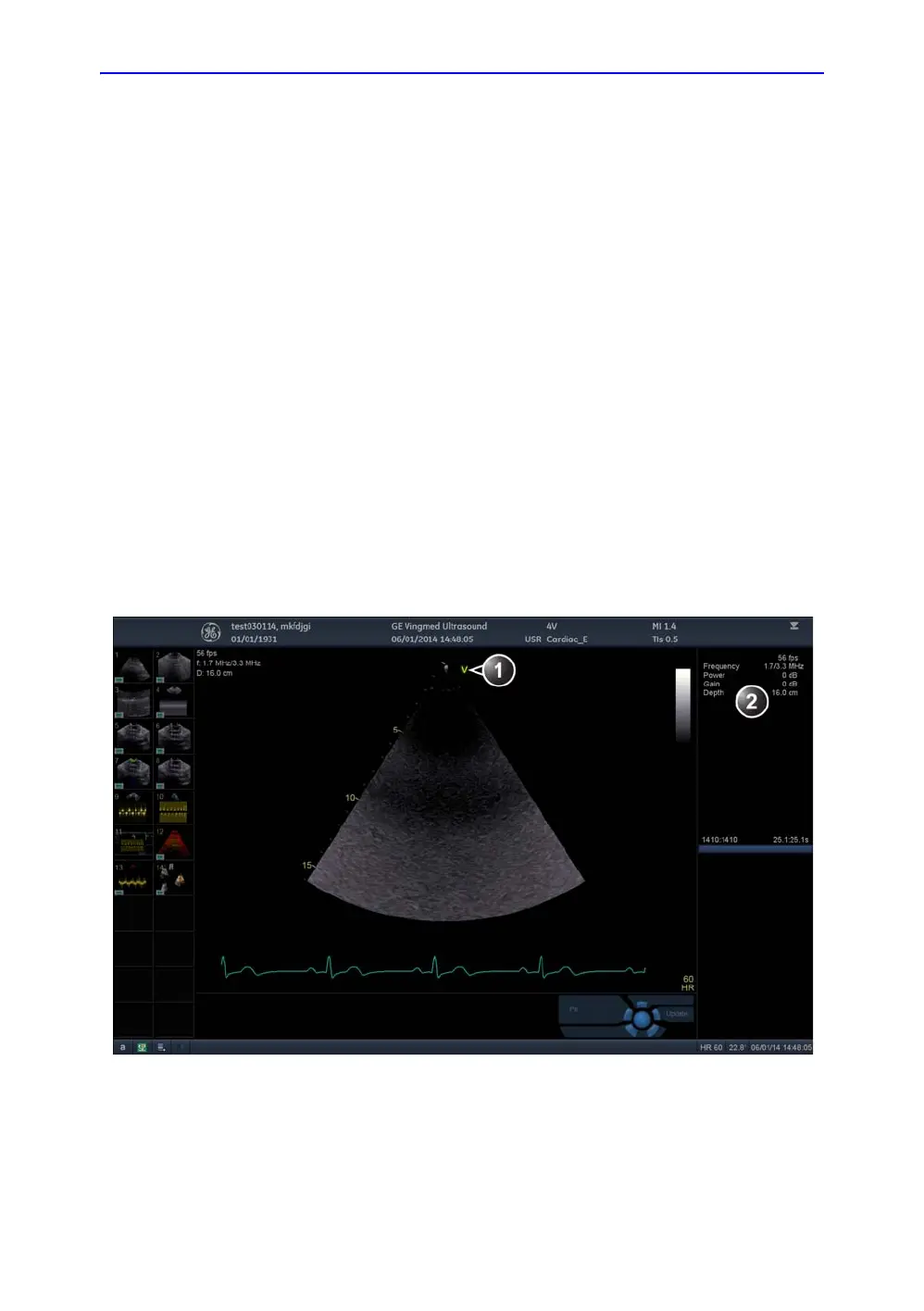

Figure 4-5.
The 2D scree
n (cardiac)
1.
Probe orientation marker
2. Parameter
window
132
134
