Top Console with LCD monitor and Operating Panel
Vivid E80/E90/E95 – Service Manual 5-19
GC091052 Rev. 3
Operating Panel (Control Panel)

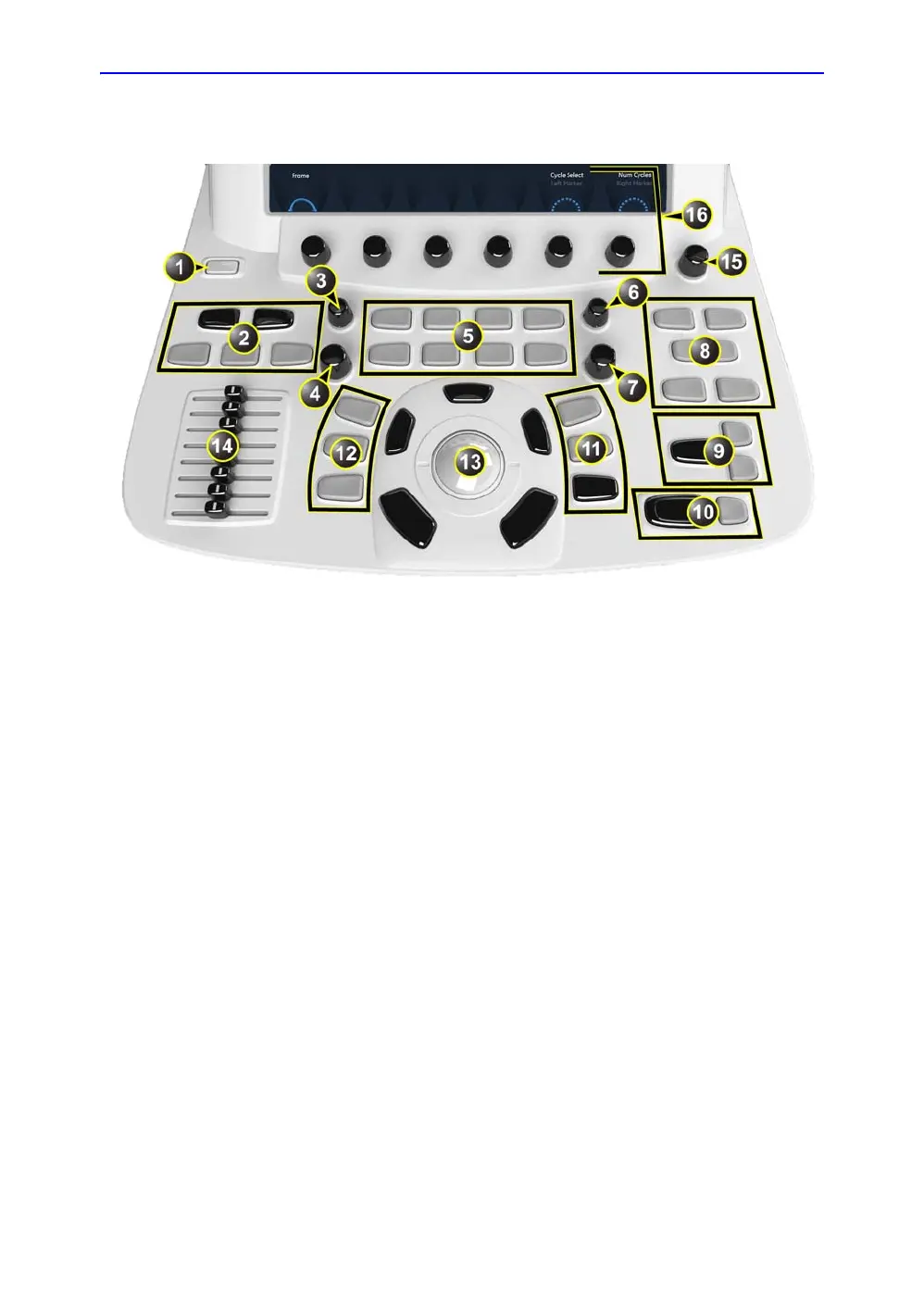

Figure 5-11. The Operating Panel
1. On/Off button
2. Patient archive, Probe selection, Protocol
based acquisition, Worksheet and Image review
3. Active mode gain
4. 2D Gain
5. Scan mode selection
6. Zoom
7. Depth
8. Display controls and Annotation
9. Print and secondary capture
10. Freeze, 2D Freeze
11. Measurement and image store
12. Auto, cursor and angle
13. Trackball area
14. TGC sliders
15. Loudspeaker volume control
16. Touch panel with adjustment rotaries
