GE Voluson P6 BT18 - 5-11-1-1 DPS Block Diagram

To Next Page

To Previous Page

GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

5-44 Section 5-11 - Power Distribution

5-11-1-1 DPS Block Diagram

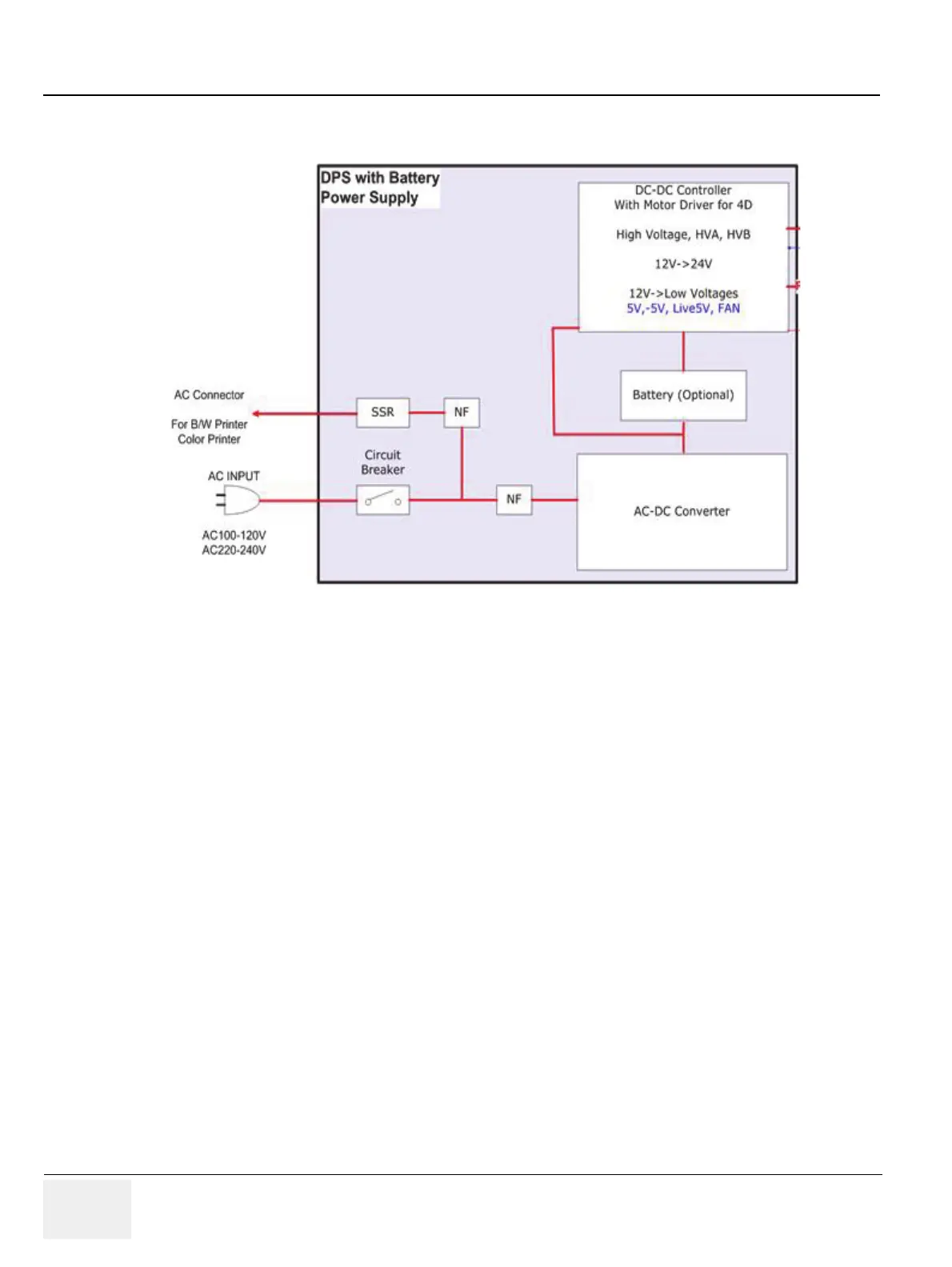

Figure 5-19 DPS Block Diagram
