GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-125

5.) Unscrew 2 screws, and remove the REAR HANDLE. Refer to the figure below.

8-39-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

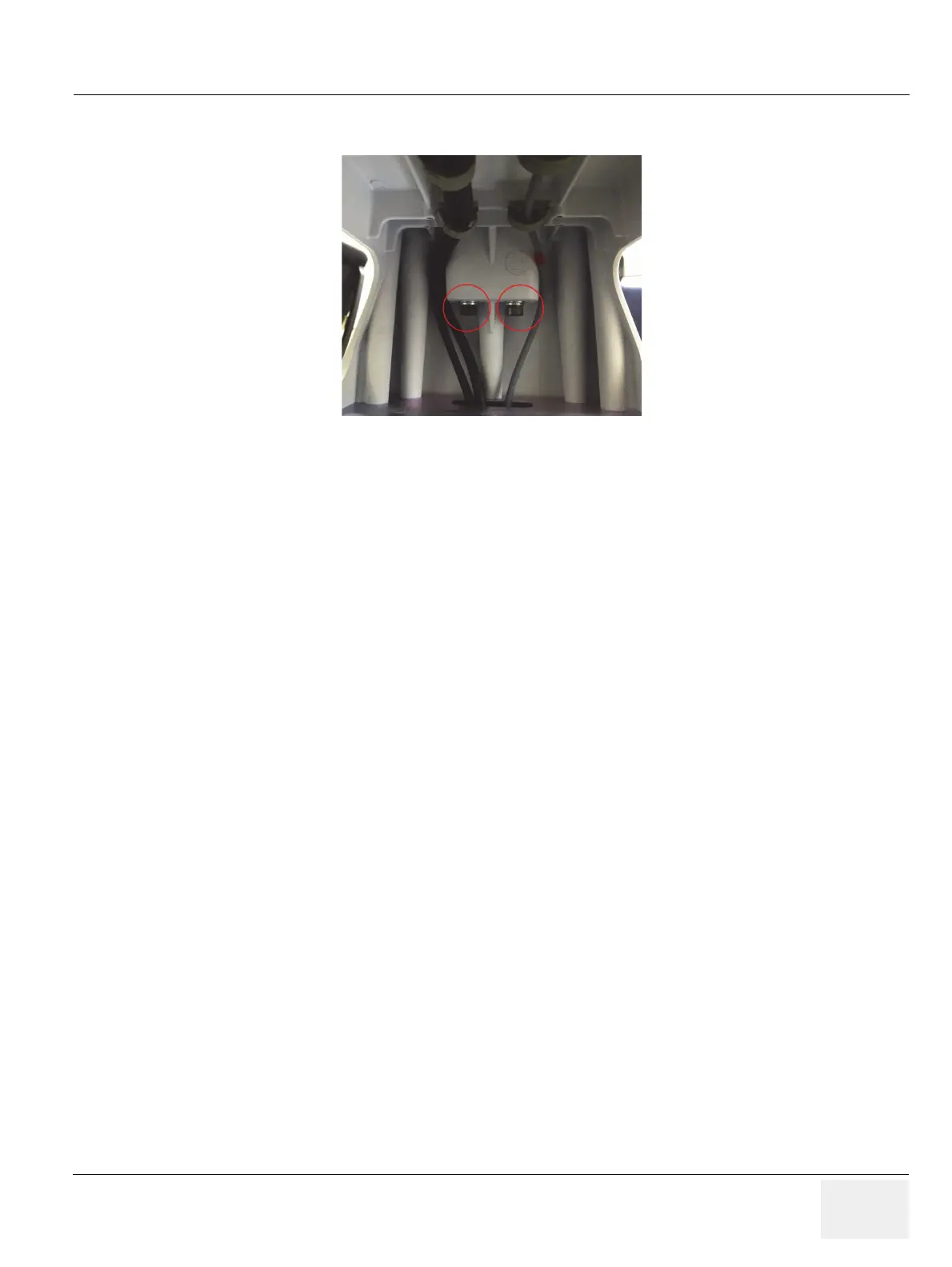

Figure 8-183 Removing the REAR HANDLE
