GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-179

Section 8-58

Replacement of Battery Pack Assy

8-58-1 Manpower

One person, 20 minutes

8-58-2 Tools

Philips screwdriver

8-58-3 Preparation

Power Off/Shutdown the system as described in 4-3-2 on page 4-4.

8-58-4 Removal procedure

1.) Follow the removal procedure of Section 8-41 "Replacement of the DPS/DPS with Battery" on page

8-128.

2.) Unscrew 14 screws and remove DPS with Battery cover.

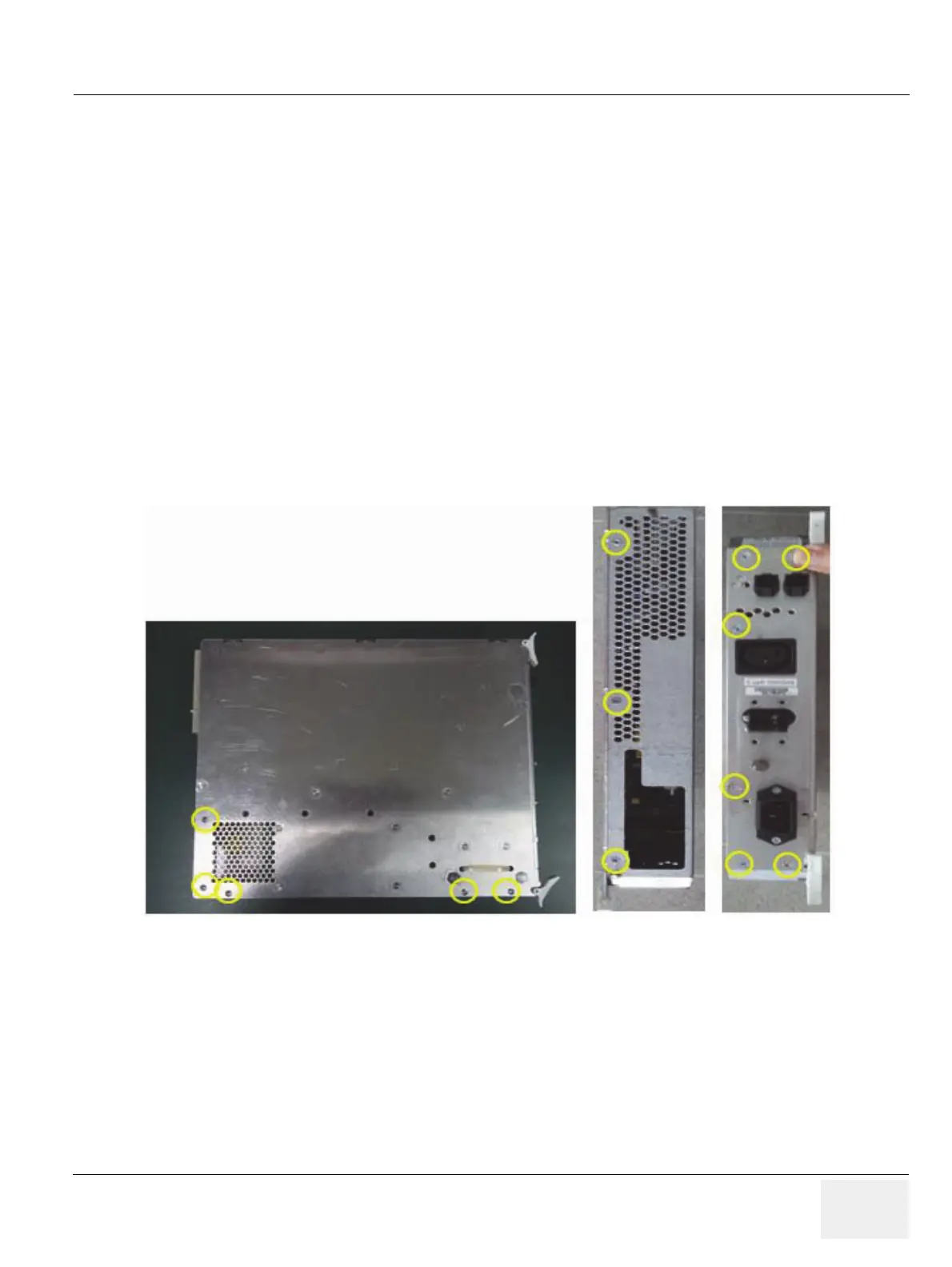

Figure 8-257 Removing DPS with Battery cover
